Home > Products > DC/AC MSW Power Inverter(off Grid Inverter) > High frequency DC-AC power inverter JD75DA 150DA 150Y 200Y

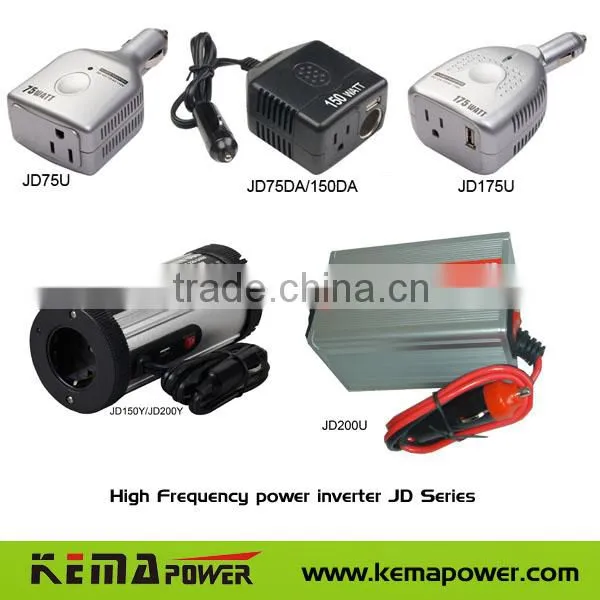

High frequency DC-AC power inverter JD75DA 150DA 150Y 200Y
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 per Month
- SHEN ZHEN/GUANGZHOU
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | kemapower | |
| Model Number | JD75DA JD150DA JD150Y 200Y | Output Power | 1 - 200KW | |
| Output Type | Single | Input Voltage | 10.5V to 15.5Vd0.3 | |
| Output Voltage | 220V,110V d10 V | Type | DC/AC Inverters | |
| Output Frequency | 50/60d5 HZ |
Product Description
Key Features
1.High frequency DC-AC power inverter
2.Single phase modefied sine wave ouput
3.Full range protection for the inverter and the battery.
4.With USB port
5.Smaller and light
Technical Specifications
| Mode | JD75DA | JD150DA | JD150Y | JD200Y |
| Continuous power (W) | 150 | 150 | 150 | 200 |
| Surge capability (W) | 300 | 300 | 300 | 400 |
| DC input (VDC) | 12V | |||
| DC input range | 10.5V to 15.5V±0.3 | |||
| AC output | 220V,110V ±10 V | |||
| Output frequency | 50/60±5 HZ | |||
| Output waveform | Modified sine wave | |||
| Efficiency | >85% | |||
| Battery low alarm | 10.2-10.8V | |||
| Over discharge protection | 10 ±0.5V, shut off | |||
| Resume voltage | 11.7V--12.8V ,auto restart | |||
| Over voltage protection | 15V-16.5V ,shut off. | |||
| Overload protection | Shut off while over 120% rated capacity | |||
| With cooling fan | Yes | |||
| USB | Yes | |||
| DC conection | Cigarette lighter | |||
| Connection convertor | No | |||
| Product package | Blister | |||
| Running temperature | 20 to 40 degree | |||
| High temperature protection | Yes | |||
| Short circuit protection | Yes | |||
| Reverse polarity protection | Yes | |||
| Product size(mm) | 145*75*50 | Φ70*145 | 145*75*50 | Φ70*145 |
| Carton size (mm) | 515*355*370 | 440*410*360 | 515*355*370 | 440*410*360 |
| Carton weight (kg) | 13 | 14 | 13 | 14 |
| PCS /CTN | 40 | 30 | 40 | 30 |
