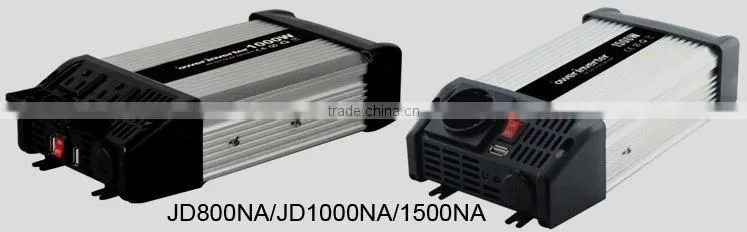

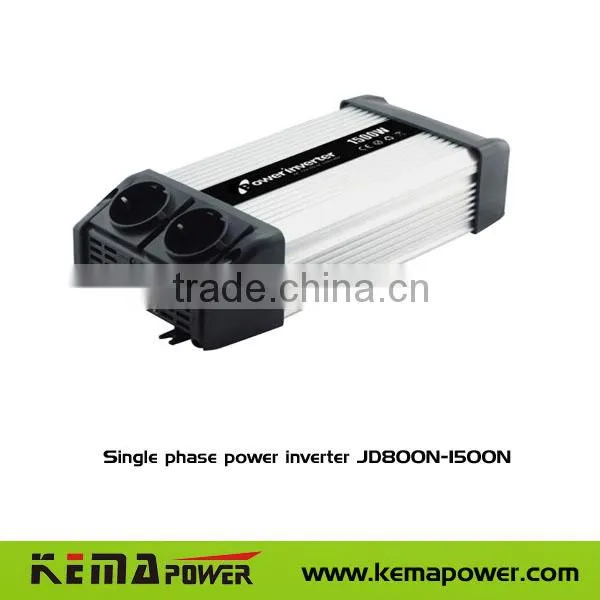

Single Phase Power Inverter JD800N-1500N
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
kemapower
Model Number:
Single phase power inverter JD800N-1500N
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Frequency DC-AC Power Inverter JD300-600NegotiableMOQ: 1 Piece -
High Frequency DC-AC Power Inverter JD800N-1500NNegotiableMOQ: 1 Piece
-
JD75U 175U 200U High Frequency DC-AC Power InverterNegotiableMOQ: 1 Piece
-
300W-600W Single Phase Power InverterUS$ 10 - 30MOQ: 1 Piece
-
JD800-3000 High Frequency MSW AC Power InverterNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
kemapower
Model Number
Single phase power inverter JD800N-1500N
Output Power
Other, 800-2000W
Output Type
Single
Input Voltage
10.5V to 10.5V to 15.5V±0.3 or 21V to 31V±0.3
Output Voltage
220V,110V ±10 V
Type
DC/AC Inverters
Output Frequency
50/60±5 HZ
Key Features
1.High frequency DC-AC power inverter
2.Single phase modefied sine wave ouput
3.Full range protection for the inverter and the battery.
4.With USB port
5.Smaller and light
Technical specification
| Mode | JD800NA/B | JD1000NA/B | JD1500NA/B |
| Continuous power (W) | 800 | 1000 | 2000 |
| Surge capability (W) | 1600 | 2000 | 4000 |
| DC input (VDC) | 12/24 | 12/24 | 12/24 |
| DC input range | 10.5V to 15.5V±0.3 or 21V to 31V±0.3 | ||
| AC output | 220V,110V ±10 V | ||
| Output frequency | 50/60±5 HZ | ||
| Output waveform | Modified sine wave | ||
| Efficiency | >85% | ||
| Battery low alarm | 10.2-10.8V or 20.4-21.6V | ||
| Over discharge protection | 10 ±0.5V or 20±0.5V shut off | ||
| Resume voltage | 11.7V--12.8V or 23.4-25.6V auto restart | ||
| Over voltage protection | 15V-16.5V, 30-33V shut off. | ||
| Overload protection | Shut off while over 120% rated capacity | ||
| With cooling fan | Yes | ||
| USB | Yes | ||
| DC conection | With cable | ||
| Connection convertor | No | No | No |
| Product package | Paper skin | ||
| Running temperature | 20 to 40 degree | ||
| High temperature protection | Yes | ||
| Short circuit protection | Yes | ||
| Reverse polarity protection | Yes | ||
| Product size(mm) | 265*136*65 | 265*136*65 | 265*136*65 |
| Carton size (mm) | 560*335*180 | 560*335*180 | 560*335*180 |
| Carton weight (kg) | 11.5 | 11.5 | 13 |
| PCS /CTN | 10 | 5 | 5 |
| Remark | JD*NA with DC port of max 150W | ||
