Home > Packaging & Printing > Printing Machinery > Screen Printer > GIGA LX 707 Full Servo Automatic Flexo Printer Diecutter

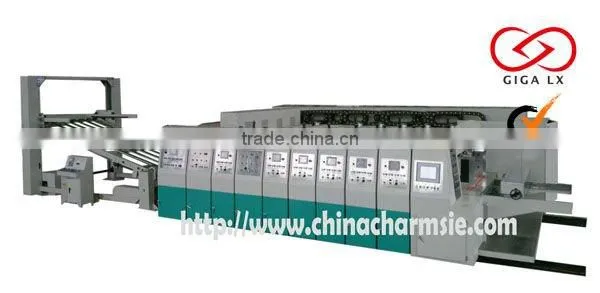

GIGA LX 707 Full Servo Automatic Flexo Printer Diecutter
US$ 400,000 - 800,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, Flexo printing plate
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
PORT OF SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GIGA LXC-250 NC Cutoff With Rotary Blade Box Making MachineUS$ 350,000 - 480,000MOQ: 1 Set -
GIGA LXC-250 NC Cutoff With Rotary Blade Corrugated Box MachineUS$ 350,000 - 480,000MOQ: 1 Set
-
GIGA LXC NC Cutoff With Rotary Blade Carton Packing MachineUS$ 350,000 - 480,000MOQ: 1 Set
-
GIGA LXC Corrugated Carton Box Making MachineUS$ 550,000 - 950,000MOQ: 1 Set
-
GIGA LXC-800N Automatic Corrugated Boxing MachineUS$ 380,000 - 1,250,000MOQ: 1 Set
Condition
New
Plate Type
Other, Flexo printing plate
Place of Origin
Shanghai, China
Brand Name
GIGA LX
Model Number
LX-707
Usage
Other, Carton and box printing, Printing carton, Forming box
Automatic Grade
Automatic
Voltage
380V
Gross Power
78-135kw
Dimensions(L*W*H)
4570x4970x2235
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.flexo printer2.CNC carton box making machine
3.Got CE, centralized control
4.Remote after service
LX-707 Full Servo Control Vacuum Suction Automatic Flexo Printer Die Cutter
Control Unit
- All position adjustments controlled by PLC, encoder tracking
- Computer centralized control, servo drivers
- Remote after service can be realized
- Each unit equipped with man-machine interface, easy to operate, accurate on adjustment.
- Full Servo Carton Box making Machine,Got CE,
- Fully Servo Control Vacuum Suction Corrugated Box Making Machine and carton box making machine prices are very good.
We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for carton box machinery LX308N, LX-608CN LX707N or corrugated cardbaod production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
1. The value of order over RMB 1 million (including 1 million).
2. Only for carton box machinery LX308N, LX-608CN LX707N or corrugated cardbaod production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
Feeding Unit
- Apply lead edge paper feeding patent technology, feed all types of corrugated paper board accurately and speedily lx707
- Paper feeding servo motor drive double rubber roller, without transmission mechanical error, upper roller is wrapped with wearable rubber, air pressure adjustment function to prevent cardboard from deformation, and to keep feeding accurate.
- Vacuum lead edge feeding, air volume, air pressure adjustable to fit paper size
- De-dust device removes dust and dirt from printing surface, and enhance printing quality
- No backlash transmission technology, reduce transmission error to the minimum
- No need self-circulating lubrication system, achieve environment friendly production
- Feeding clearance motorized adjustment, touch screen control
Printing Unit
- Forme roller and pressure roller made of high quality alloy steel, with grinded and chrome plated surface lx707
- Dynamic and static balancing make steadily running
- Hanging forme, make installation easy and quick
- Forme changing both foot switch, and/or PLC panel control (forward / backward run)
- Anilox roller auto lifting synchronous with paper feeding system (In feeding anilox roller press down whereas in stop, it release)
- Independent servo motor driving, to eliminate cumulate error of system
- Carton making machine printing phase automatic adjustment by man-machine interface and servo drive
- Forme roller intelligent zero returning, short cut resetting under dynamic and static condition
- Ceramic anilox rollers, enclosed chamber doctor blade system, achieve 80-90 lines quality printing
- AC servo control, peristaltic pump ink supplying and spreading, quick, economy, easy cleaning.
- Arc shaped, aluminum alloy chamber of doctor blade, raise anti-bending ability by 30%, ink reserves decreased by 20%; Lined with environmental protection fluorine layer, meet requirement of easy and non-stick cleaning
- Carton making machine suck blower, roller sending, synchronous with pressure roller, over print precision ± 0.35mm lx707
- Motorized adjust and digital display the forme roller transverse moves, up to 20 mm
- Clearance between anilox roller and pressure roller automatic adjustment, encoder tracking and recording (Carton machinery Input data at PLC touching panel to make automatic adjustment)
- Hot air drying or cold air drying can be choosing based on printing speed lx707
- AC servo motor with no backlash power transmission device, make gear lubrication unnecessary
Stacking Unit
- Connection arm can be operated manually or automatically lx707
- Tension of the driving belt of connection arm can be adjusted alone; Number of connection arms can be set at will
- Stacking height: 1600 mm
- Platform elevation and transmission motor has braking function, to prevent from down-slipping
- A pneumatic controlled plate will pop-up to hold the coming substrate when the pre-set height reached
- Anti slipping belt used in the transport bed, the stacker together with flexo printing machine, corrugated box making machine.
Model |
2500*1200 |
2200*1000 |
1800*1000 |
Max. speed (pcs/min) |
250 |
220 |
240 |
Max. feeding size(mm) |
2500*1200 |
2200*1000 |
1800*1000 |
Min. feeding Size(mm) |
650*450 |
650*400 |
650*400 |
Skip feeding size(mm) |
2500*1400 |
2200*1200 |
1800*1200 |
Feeding depth (mm) |
2-12 |
2-12 |
2-12 |
Max. printing size(mm) |
2450*1150 |
2150*950 |
2450*950 |
Standard printing plate thickness(mm) |
7.2 |
7.2 |
7.2 |
*Subject to change and improvement without notice
