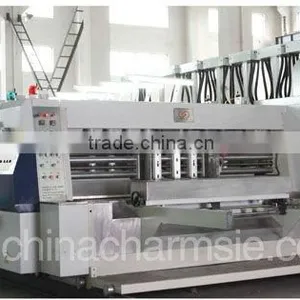

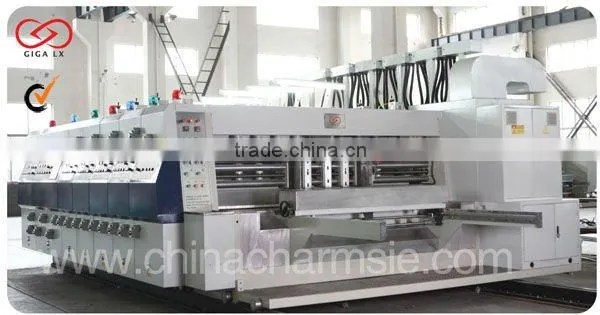

GIGA LX Flexo carton box printer slotter machine
- 8 Set / Sets per Month
- port of Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Scented teatriangle package packaging machine Inside and outside bag packaging line
- Give bag packaging machine Between-meal nibblespackaging line
- Internal and external package linkage line Green teatriangle package packaging machine
- Triangle package packaging machine Green teapackaging linkage line
- Between-meal nibblesgive bag packaging machine The five metalsbag packing machine
- Black teatriangle package packaging machine Packaging linkage line
Product Details
Condition: | New | Application: | Food, Medical, Chemical, Other, Textiles, Food, Medical, Chemical, Machinery & Hardware, Textiles | Packaging Type: | Cartons, Film |
Packaging Material: | Plastic, Metal | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | 25kw-48kw | Place of Origin: | Shanghai, China |
Brand Name: | GIGA LX | Model Number: | LX-308 | Dimension(L*W*H): | 8000mm*7000*2200 |
Weight: | 9MT-25MT | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
flexo slotter machine1.Touch-screen,Got CE
2.Two oil pumps lubrication
3.Memory order 999
GIGA LX308 Automatic Flexo carton box slotter Machine/ cardboard slotter machine / flexo slotting machine
Lead Edge Feeder Carton Box slotter Machine.
cardboard slotter machine main functions:
- Touch screen and electric control dual system, Suitable for small and middle-big size carton.
- All transmission gears are made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness HRC58-62
- CAPT-LOCKS union link to reduce the connect interval and keep long lasting overprint precision
- Functions of intelligent zero returning and memory reset 999 order memory
- The transmission system adopts two oil pumps circulating lubrication
- cardboard slotter machine and price of carton box slotting machine are very good.

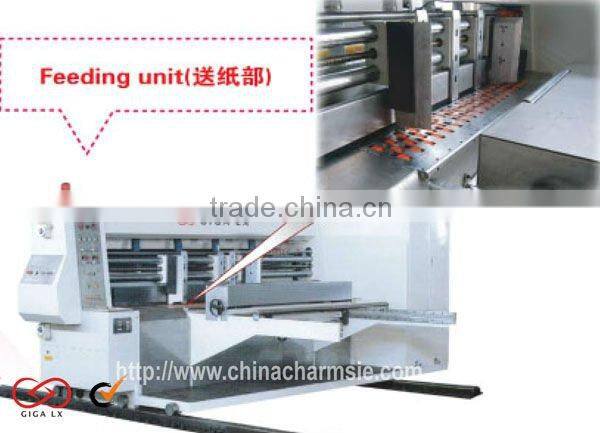

Feeding Unit
- Servo control Lead edge feeder--patent #ZL2005 2 0045628.x (Back-pushing suck blower feeding system is option);
- Servo motor-quick react, lx308precision positioning, system stability and durability. Electrical camshaft supersedes mechanical style;
- Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment; Half-wheel, quick replacing structure, to keep consistency of feeding position, and to avoid uneven wearing on the surface of feeding wheel;

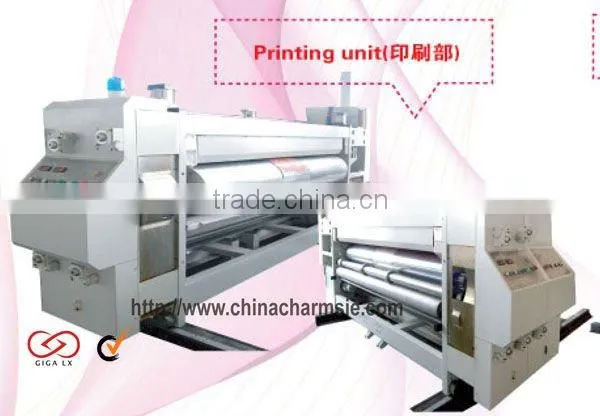

Printing Unit
- Cardoard carton printer slotter machine forme roller and pressure roller are made of high quality steel, with grinded and chrome plated surface
- Dynamic and static balancing make steadily running; Hanging forme, make installation easy and quick; Forme changing both foot switch, and/or electric control (forward / backward run)
- Printing machine anilox roller auto lifting device synchronous working with paper feeding system (In feeding,lx308 anilox roller pressed whereas in stop, it released); Planetary gear phasing structure; Printing phase automatic 360 degree adjust by PLC, touch screen and motorized digital control.
- Electromagnetic clutch printing phase braking mechanism.

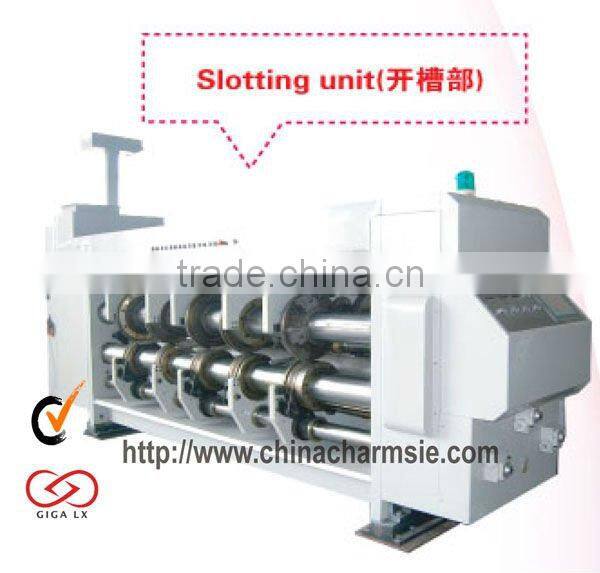

Slotter Unit
- Upper scoring wheel coated by polyurethane to avoid possible crush on the paperboard
- Transverse movement of scoring wheel, lx308 doctor wheel and slotting head controlled by motorized button control, easy and quick Planetary gear slot phasing structure
- 7 mm thick slotting knives are made of alloy tool steel by heat treatment and finely ground, sharpened endurable teeth, Bi-plate trimming knives with sharpened, endurable teeth.
Die Cutter Unit
New adjusting system for die cutter, easy operation adjusting the error and the difference of die cutter'S cardboard.
- Box slotter die cutter machine anvil roller and mould roller adopts high-grade steel with finely reground and chrome plated surface. Dynamic balancing correction enhances running stability
- Mould roller and anvil roller can be apart by the air cylinder eccentric mechanism during non-working condition in order to decrease the load of the machine and to prolong the life of the cutting mould and urethane rubber
- Mechanical drive anvil roller transverse moves up to ±30mm, lx308 installed with radial differential device, evenly spread/distribute abrasion to improve the life of anvil roller, unique speed difference compensation device makes a perfect die cutting .
Model | 1800/2200x1000 | 2500x1200/1400/1600 | 2800x1200/1400/1600 | |
Max. machine speed (pcs/min) | 200 | 160/140/120 | 160/140/120 | |
Max. printing speed(pcs/min) | 180 | 140/120/100 | 140/120/100 | |
Max. feeding size(mm) | 1770/2170*970 | 2500*1170/1370 | 2500*1170/1370 | |
Skip feeding size(mm) | 1770/2170*1170 | 2500*1370/1570/1770 | 2500*1370/1570/1770 | |
Min. feeding Size(mm) | 650*280 | 650*380/400/450 | 700*380/400/450 | |
Feeding depth (mm) | 2.5-10 | 2.5-10 | 2.5 - 10 | |
Min. slot interval | Positive cut (mm) | 120*120*120*120 | 140*140*140*140 | 140*140*140*140 |
Reverse cut (mm) | 190*50*190*50 | 250*80*250*80 | 250*80*250*80
| |
Max. printing area(mm) | 1750/2150*950 | 2450*1150/1350 | 2750*1150/1350 | |
Standard printing plate thickness(mm) | 7.2 | 7.2 | 7.2 |
*Subject to change and improvement without notice

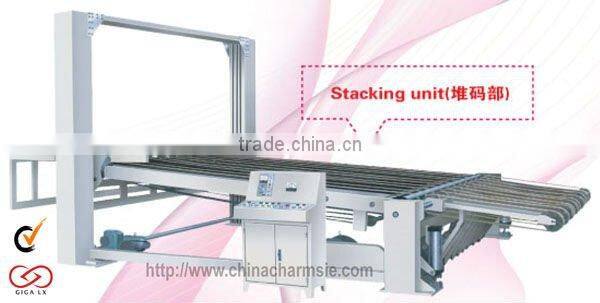

Stacker Unit
- Connection arm has manual and automatic operation methods
- Tension of the driving belt of connection arm can be adjusted alone; quantity of connection arms can be set at will. Stacking height: 1600 mm
- Platform elevation and transmission motor has braking function, to prevent from down-slipping
- A pneumatic controlled plate will pop-up to hold the coming substrate when the pre-set height reached
- Anti slipping belt used in the transport bed .
