GIGA LXC Export Raw Paper Mill Roll Stand Of Corrugating Machine
US$ 52,000 - 95,000
MOQ: 1 Pack
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Other, Food, Beverage, Commodity, Machinery & Hardware, MAKING CORRUGATED CARDBOARD
Packaging Type:
Other, In pallet
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Loan for Export GIGA LX 308N Cartoning MachineUS$ 130,000 - 550,000MOQ: 1 Set -
GIGA LX 608 Used Guarantee 10 Years Gears for 2 Colors Flexo Printing MachineUS$ 700,000 - 5,100,000MOQ: 1 Set
-
GIGA LX 608 Used Guarantee 10 Years Gears for 7 Colors Flexo Printing MachineUS$ 700,000 - 5,100,000MOQ: 1 Set
-
GIGA LX 608 MultiColor 1 Color Auto Flexo Printing MachineUS$ 700,000 - 5,100,000MOQ: 1 Set
-
GIGA LX 608 MultiColor 4 Color Auto Flexo Printing MachineUS$ 700,000 - 5,100,000MOQ: 1 Set
Condition
New
Application
Food, Beverage, Commodity, Other, Food, Beverage, Commodity, Machinery & Hardware, MAKING CORRUGATED CARDBOARD
Packaging Type
Other, In pallet
Packaging Material
Other, Pallet
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
5.5-6.5kw
Place of Origin
Shanghai, China
Brand Name
GIGA LX
Model Number
LXC-1500H
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Type: whole hydraulic type2.Adopt pneumatic brakes with many dots
3.Mill roll stand for paper roller
4.Corrugating machine

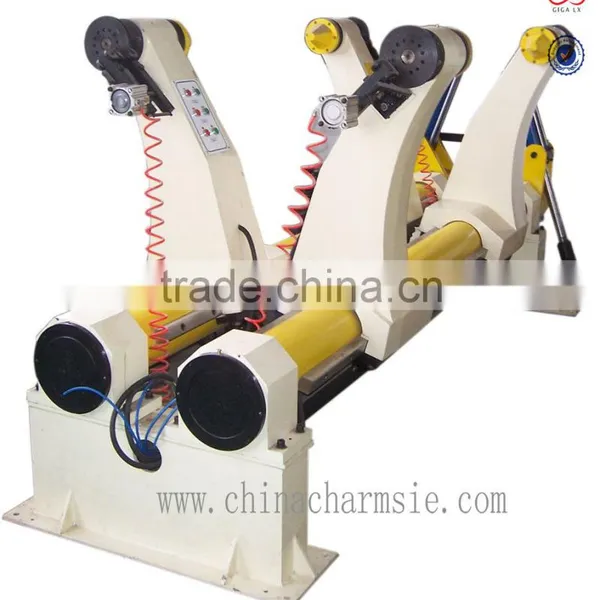

LXC-1500H Hydraulic Mill Roll Stand for paper roller
Corrugated Machine Main Funcation
- Control type: whole hydraulic type
- Max.speed: 250m/min
- Working width: Max.2500mm
- Diameter of paper clip: max Ø1500mm, Min Ø350mm
- * Folder structure adopts cast iron curves, beautiful and solid stability.
- * Clip arm lift and down, clamp and open, traverse from right to left;
- Assemble 7.5HP * 4P oil pressure system. (Taiwan brand)
- oil pressure pump –1 SET
- oil pressure valve
- oil pressure cylinder specifications:
- Ø80 * ST920 --- 4 PCS (left, right) Ø125 * ST475 --- 2 PCS (upper and lower)
- * The tension control of corrugating machine: adopt pneumatic brakes with many dots, along with air pressure valve, pressure regulator and pressure gauge.
- * Assemble Manual Pulley: four wheels under Pulley; slide track : 2 pcs.
- * Track rails : 2 sets.
- * electric oil pressure control, easy operation, low failure rate. Corrugating machine of corrugated cardboard machine are also in good quality.
We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for boxing machine LX308N, LX-608CN LX707N or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
4-4.
