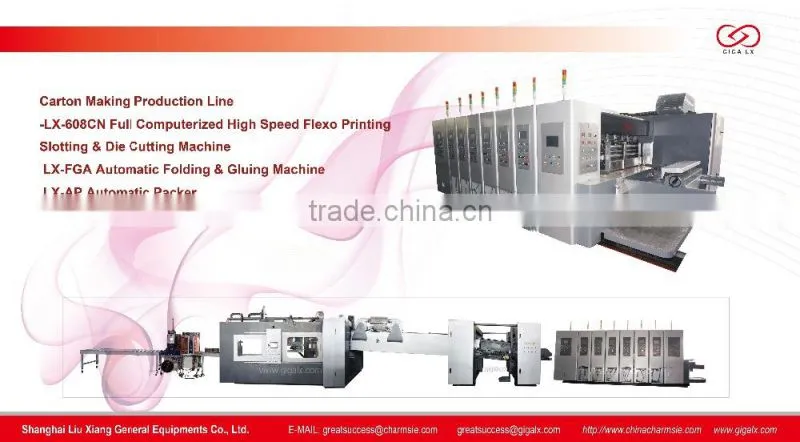

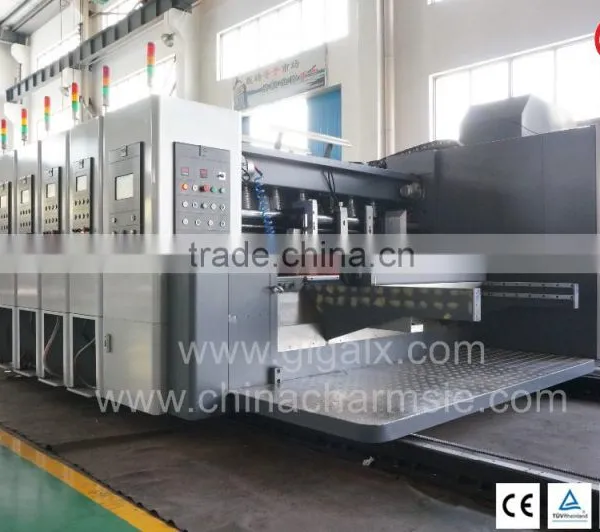

GIGA LX-608CN Full Computerized High Speed Flexo Carton Box Making Machine Online with Folder Gluer
Products Description
Main function

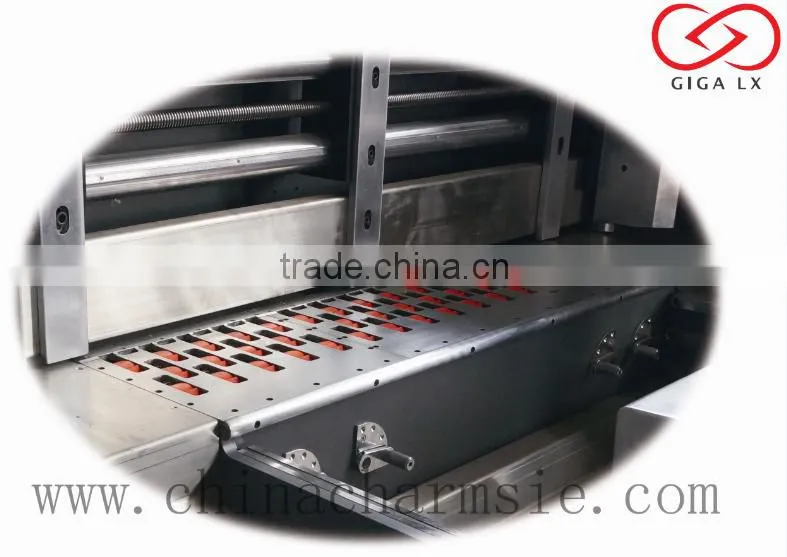

- Vacuum suction conveyor for printer
- Servo Control leadge Feeder;
- PLC central control;
- Slotter with intelligent photoelectric,which means it can guarantee the Slotter knife and Underthe knife to proposes an automatic alignment,and protect the blade.
- Remote after service. Which means when there's something the matter with the electric appliance software of the printer in your factory.we can remote check by network.
- New NC Adjusting System for die cutter.
- Individualized trimming;can memory 9999 orders(automatic memory reset function);
- Automatic stand by for new order ;
- High Speed Carton machine Flexo Printer Slotter & Die Cutter for small paper box making .
- Touch screen and electric control dual system;
- Phase of plate roller, axial position, pressure roller, anilox roller, slotting knife, are all motorized adjust; LX608CN Coder data tracking and recording system make adjustment simply by input data into interface real automatic position adjustment.
- Gears are made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness of HRC58_62, 6 grade precision the same grade with automobile gear box, features smooth run, low noise, long live, double gear oil pump multispray circulating lubrication. Up to 10 years damage resistance gears;
- CAPT_LOCKS union link to reduce the connect interval, make installation and maintenance easy, and keep long lasting overprint precision;
- Set up the order rapidly;
LX-608CN Feeder unit

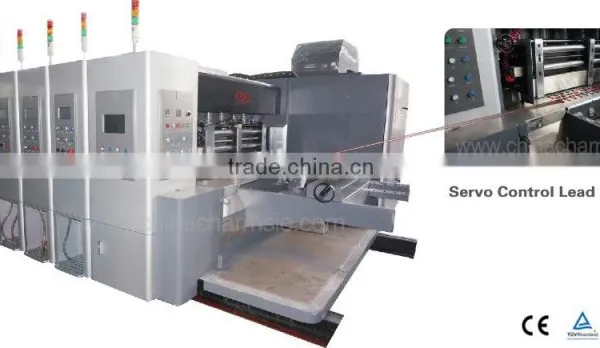

1. Servo control Lead edge feeder--patent
2. Servo motor-quick react, lx608cn precision positioning, system stability and durability. Electrical
camshaft supersedes mechanical style;
3. Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding
precision alignment; Half-wheel, quick replacing structure, to keep consistency of feeding position,
and to avoid uneven wearing on the surface of feeding wheel;
4. Pressure-free stretching feeding mechanism is the option;
LX-608CN Printing Unit
1. Printing phase adjustment by PLC, touch screen control and motorized digital 360 degree.
Printing cylinder keeps the function of zero return and can reset in dynamic and static condition.
2. Planetary gear phrasing mechanism.Dynamic and static balance correction ensure stable running
3. Loading and unloading of the printing plate motorized turn positive and reverse by pedal switch,
lx608 adopts hanging mechanism
4. Pressurized automatic lifting device working in with the feeding systerm
5. Motorized digital display adjusts the transversal position of the printing cylinder within the range of
20mm..
6. Printing phase fixing mechanism with electromagnetic clutch.

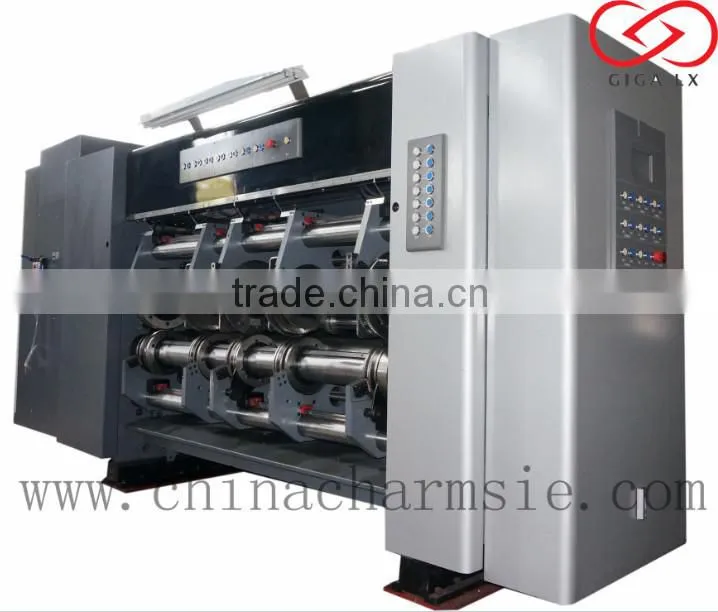

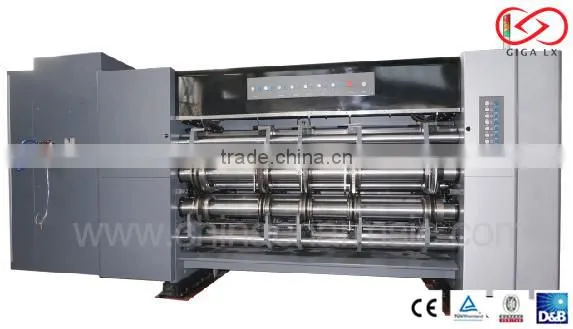

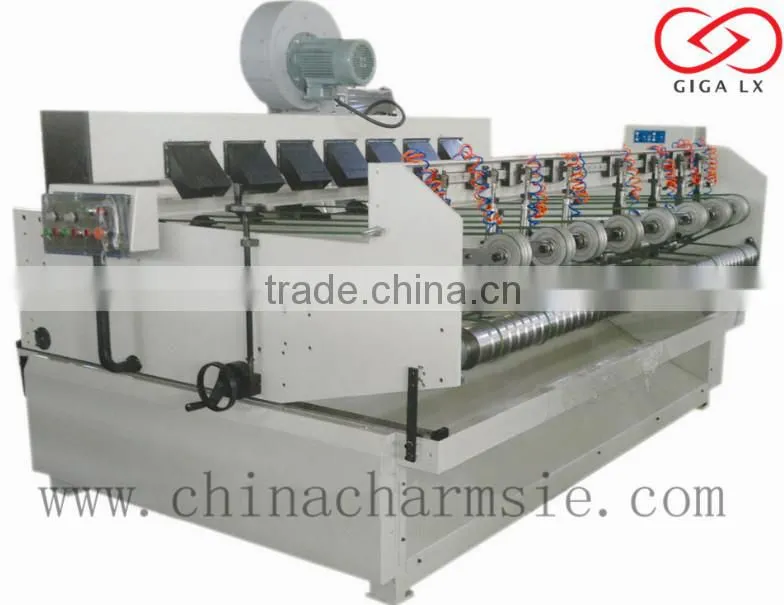

LX-608CN Slotter Unit
1. Pre-scoring wheel: the sheet by pre-scored is no crush.
2. Manual adjustment on the gap between scoring wheels within the range of 0-12mm.
3. Upper scoring wheel coated by polyurethane avoid of crush on the sheet.
4. Transverse movement of scoring wheel, doctor wheel and slotting head controlled polyfunctionally
by PLC, touch screen and electromotive button.
5. The slotting knives are made of alloy tool steel by heat treatment and teeth finely ground. The width
is 7mm. Sharp teeth and endurable.
6. Bi-plate trimming knives with sharp teeth and endurable.
7. Slot phasing machanism is planetary gear structure.
8. Slotting phase adjustment by PLC, touch screen conrol and motorized digital 360 degree in dynamic
and static condition. Order can be preset.
LX-608CN Vibration Waster
1. Independent vibration-waste unit, can be flexibly installed in front of the stacker.
2. Subsection of waste cleaning and paper collection, make it much efficient
3. Blower and brush double cleaning, packaging machine, behind carton machine, following die cutting machine.
4. Vacuum-absorb conveyor belt guarantee smooth and accurate paperboard transmission
LX-608CN Stack Unit
1. Sheet collection arm has manual and automatic operation methods.
2. Sheet collection arms are in belt transmission adjusted tension independently.
Numbers of sheet collection arms is optional.
3. The lifting of stacking bed is driven by strength chain. Piling height 1600mm.
Advantages of Folder Gluer Inline
- Folder gluer main motor use servo motor;( totally 3 servo motors)
- More scientific design, stronger machine body;
- The carton machinery and folder gluer machine inline is highly integrated, one time setting the order, very quick and convenient;
- By 45 degree folding, two times scoring of the cardboard carton, full way tray folding; left and right synchronization, long belt shaping the carton, effectively avoid the problem of big/small size seam, and scissor-like shape.
- Automatic Stacking: photoelectric control, computerized, fully automatic, high efficiency.

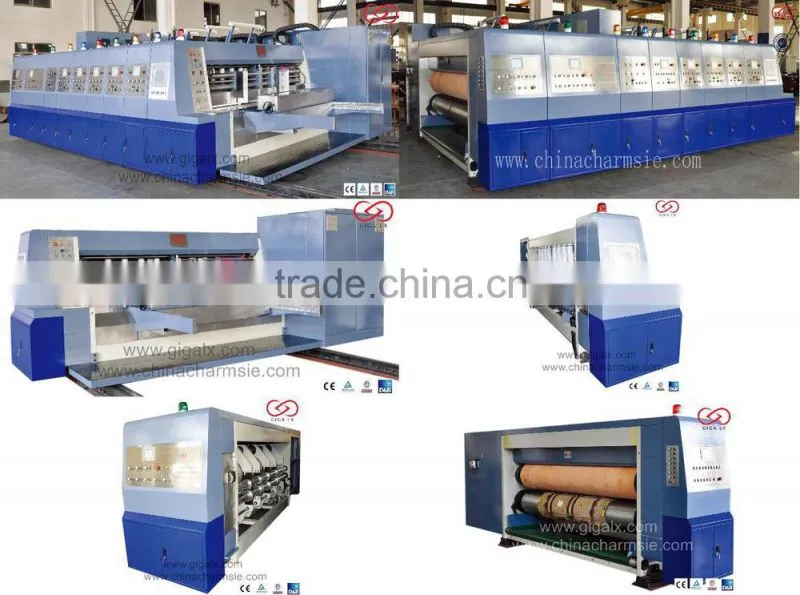

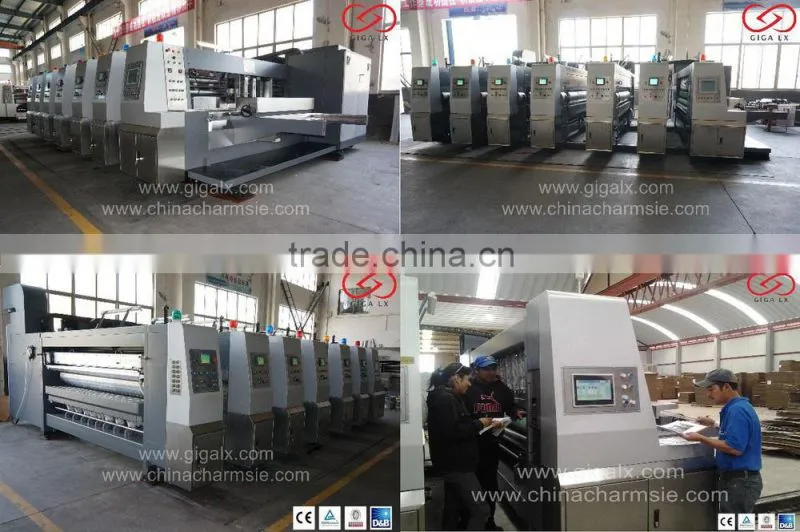

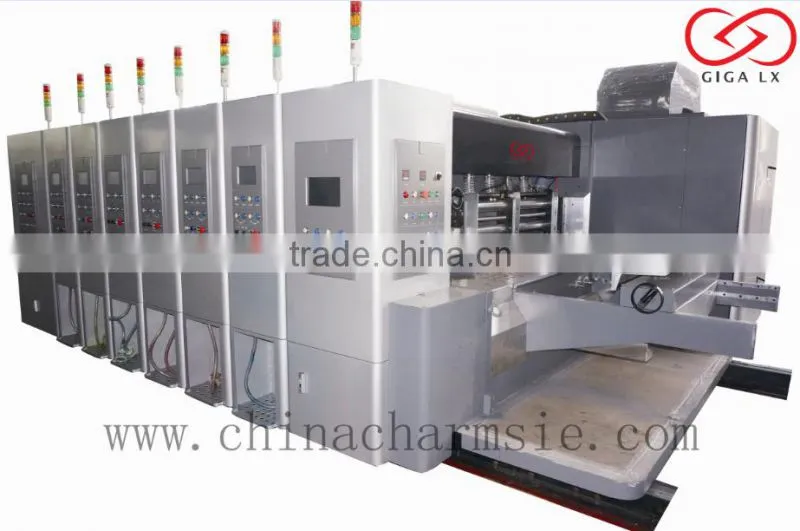

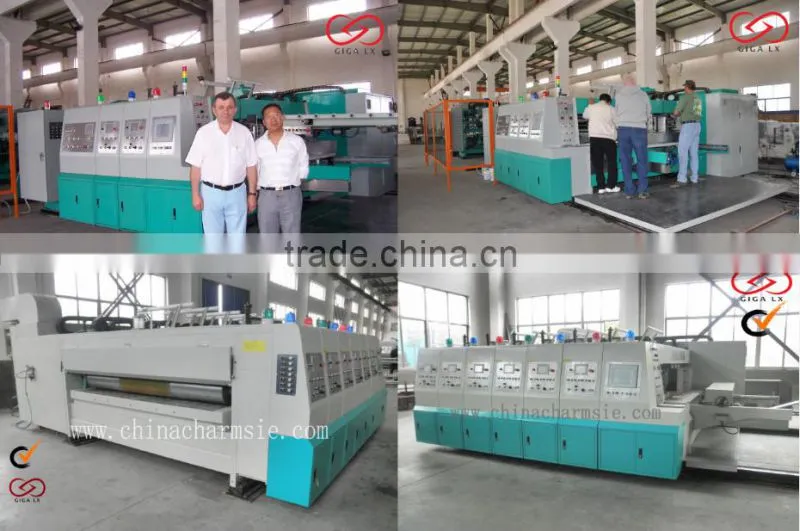

LX-608CN High Speed Flexo Printing and Slotting and Die Cutting Machine Realistic Pictures
- LX-608C Before ship to Mexico
LX-608C Before ship to Malaysia
LX-608C Before ship to America
Packing&Shipping
Company Information
Vision: To be a cross-century enterprise, become a group corporation owns ten international
brand group with 200 design engineers.
Mission: Better machine, better carton, to provide efficient, complete plant, systematic solutions
for factory construction.
Operation: Overall every control and clear.
Business philosophy:
Differentiation----no one else had
Specialization----better than anyone else
Primacy----design newer than anyone else
Value maximization----maximizing personal property along with company value

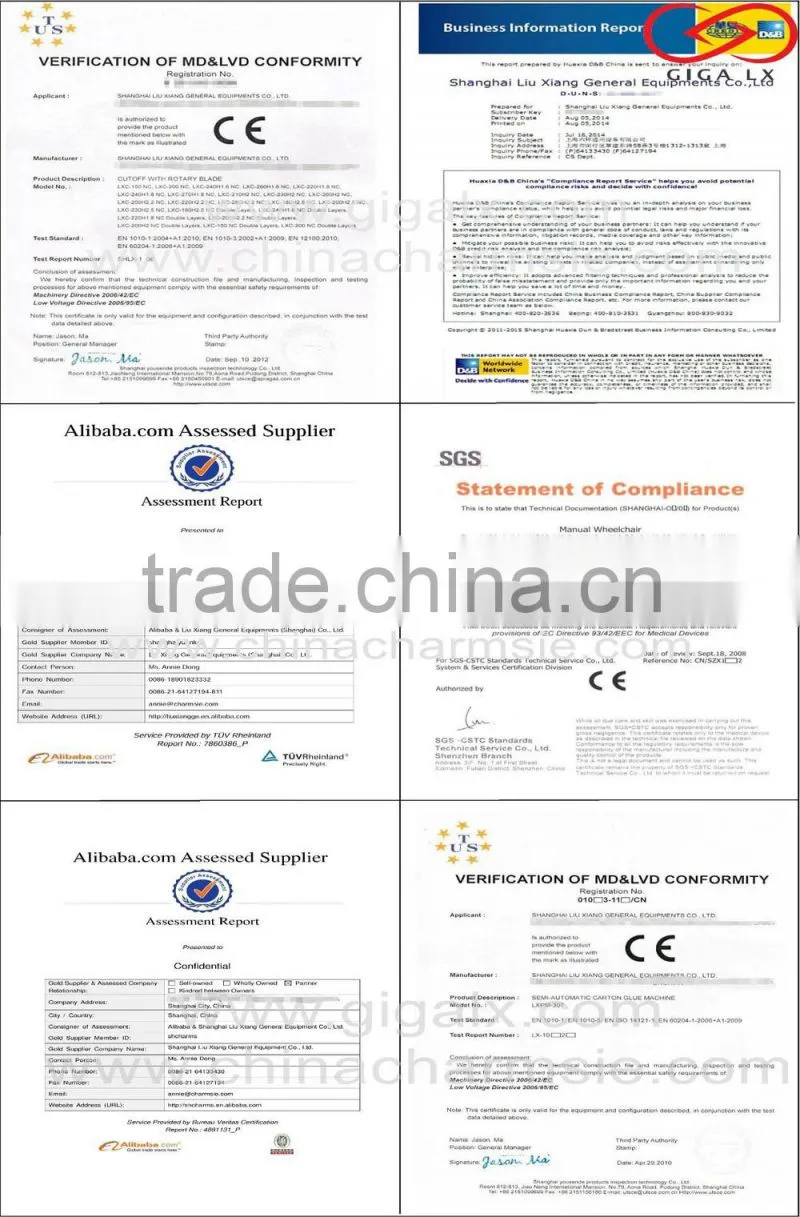

CE ,SGS and Quality Control Certificate
GIGA LX Exhibitions
GIGA LX After-service System
GIGALX Complete Factory Design
