GIGA LX308N Automatic Corrugated Cardboard Carton Box Making And Printing Machine
Automatic Carton Making and Printing Production Line Main Parameters :
- Set up the order by one-time in Printer operation panel
- Remote after service could be relized;
- Two times scoring , Four times molding;
- Can set parameter not only in Printer but also in Folder Gluer operation panel;
- Can set up the order rapidly;

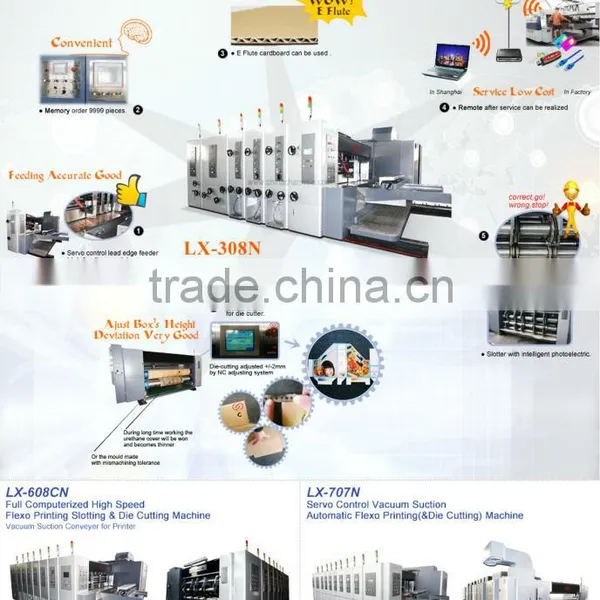

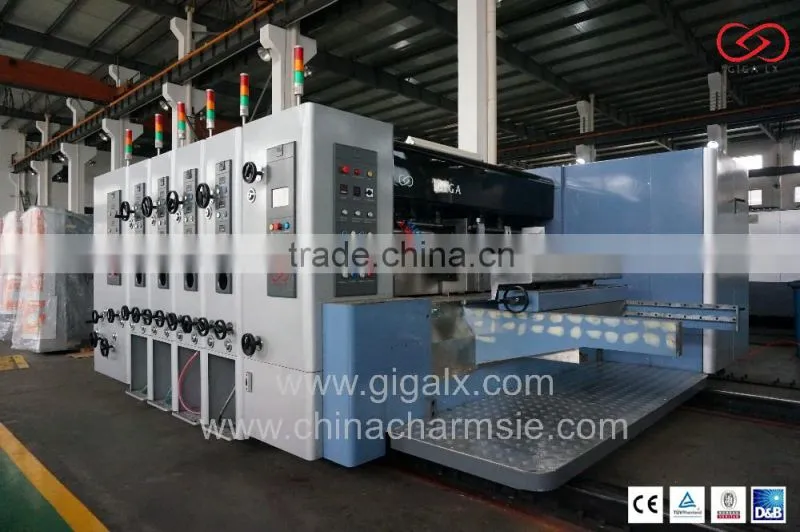

LX-308N Automatic Flexo Printer Slotter with Lead Edge Feeder Main Functions:
- Servo control lead edge feeder;
- Memory order 9999 pieces;
- E flute cardboard can be used;
- Slotter with intelligent photoelectric;
- With new NC adjusting system for Die cutter ( This Automatic Carton Printing Production Line only can produce slotting regualar cartons, diecutting units can not connect with inline folding gluing machine except basing on the situation of the die cutting box is square and rectangle);
- Main driving gears are made of high quality alloy steel(20CrMnTi) grinded under high temperature with hardness HRC58-62;
- Corrugated carton machine lx308n with remote after service can be realized;
- Servo control lead edge feeder;
- PLC control , frequency driver phase adjustment .Touch screen except Feeding unit and electric control dual system lX308n.Controllable ink roller automatic intelligent elevating , automatic memory reset , individualized trimming , automatic stand by for new order;
- CAPT-LOCKS union link to reduce the connect interval and keep long lasting overprint precision
- Functions of intelligent zero returning and memory reset 9999 order memory;
- The transmission system adopts two oil pumps circulating lubrication;
- The E flute cardboard could be used and printing with the carton box printing machine LX-308N.
- We provide systematic plant design solution.
LX-308N Feeding Unit.
- Servo control Lead edge feeder--patent #ZL2005 2 0045628.x (Back-pushing suck blower feeding system is option);
- Servo motorquick react, lx308nprecision positioning, system stability and durability. Electrical camshaft supersedes mechanical style;
- Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment;
- Half-wheel, quick replacing structure, to keep consistency of feeding position, and to avoid uneven wearing on the surface of feeding wheel;
- Box making machine pressure-free stretching feeding mechanism is the option;

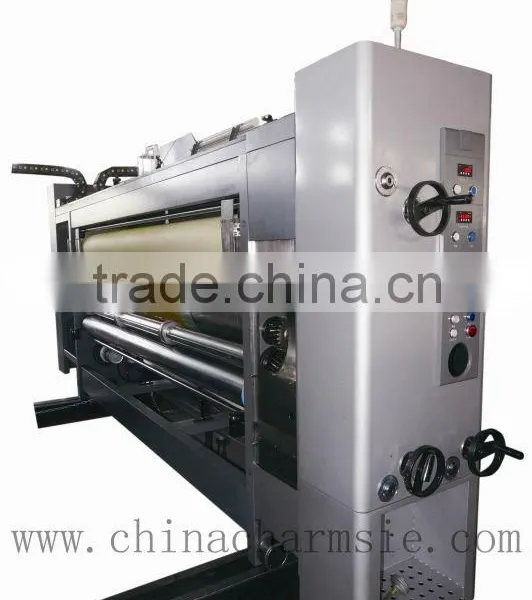

LX-308N Printing Unit
1.Forme changing both foot switch, and/or electric control (forward / backward run),
Anilox roller auto lifting device synchronous working with paper feeding system
2.Forme roller and pressure roller are made of high quality steel, with grinded and
chrome plated surface, lx308 Dynamic and static balancing make steadily running,
Hanging forme, make installation easy and quick, Planetary gear phasing structure
3.Printing phase automatic 360 degree adjust by PLC, touch screen and motorized
digital control.
4. Forme roller intelligent zero returning, short cut resetting under dynamic and static condition
LX-308N Slotting Unit
1.Slotter with intelligent photoelectric,which means it can guarantee the Slotter knife and Underthe
knife to proposes an automatic alignment,and protect the blade.
2.Pre-scoring wheel: Pre-scored paperboard will not crush
3.Upper scoring wheel coated by polyurethane to avoid possible crush on the paperboard
4.7 mm thick slotting knives are made of alloy tool steel by heat treatment and finely ground,
sharpened endurable teeth
5.Bi-plate trimming knives with sharpened, endurable teeth
6.Aluminium hand hole punch device
LX-308N Die cutting machine unit
- Die cutting is for option in this Automatic Carton Making Production Line
- Urethane cover roller have servo differential compensation device, keeps the anvil roller and mould roller running at the same linear velocity; effectively correct the die cutter effect error; Prolong double life of anvil cover and mould, keep each batch products on same geometric numerical, then reduce change cost..
- CNC adjusting difference system for rotary die cutting machine, which is for option
LX-FGA Automatic Folder Gluer Inline model Main Function
1. Width : 1800mm,2200mm,2500mm for your choosen.
2. Can set parameter not only in Printer but also in Folder Gluer operation panel
3. Fully Automatic for regular sized Cardboard
4. Touch screen input order, automatic adjust specifications.
5. Stacker and output are controlled by servo motor, max.speed 200 sheet/min.
6. Vacuum suction belt transmission to prevent slipping, and avoid scissors movement.
7. Lateral scorer to facilitate folding.
8. Both sides equipped with guiding rollers.
9. Carton strapping machine moving parts are composed of imported ball screw and linear guides track;
10. Work independently or equipped with printer & slotter machine.
11. Two times scoring , Four times molding
12. Equiped with gap adjusting system for cardboard with different thickness in Transmission unit;
13. To receive vertically the cardboard processed by printer;
14. The folding part adopts Air suction type main belt;
15. Equipped with Peristaltic type cycle suction pump,
16. To reduce the waste of paste/starch in Gluing system ;
17. Remote after service;
Advantages of Folder Gluer Inline
- Main motor use servo motor;( totally 3 servo motors) ;
- More scientific design, stronger machine body;
- The printer and folder gluer inline is highly integrated, one time setting the order, very quick and convenient;
- By 45 degree folding, two times scoring of the cardboard carton, full way tray folding; left and right synchronization, long belt shaping the carton, effectively avoid the problem of big/small size seam, and scissor-like shape;
- Automatic Stacking: photoelectric control, computerized, fully automatic, high efficiency.
Good functions
- Quick order setting: By inputing only five parameters, you can finish the setting for both printer and folder gluer;
- Folding and Stacking system: high-efficient and neat, by servo control;
- Multiple molding system(Ensure good carton);
- 45 degree inner angle flexible folding and pressing system, forming the two times score line by second time;
- Long belt folding system;
- whole carton shaping system;
- Automatic photoelectric control system: in case some cartons do not fall down or other problems, the main motor react quickly by alerting and stopping, to reduce the loss.

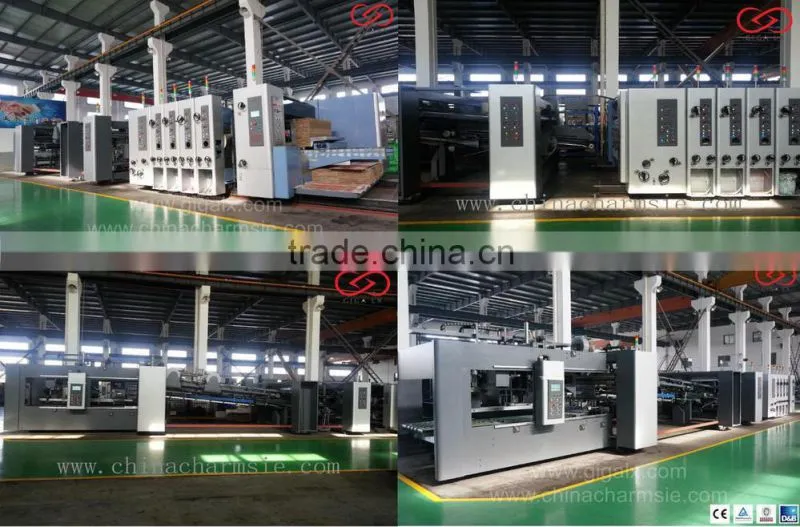

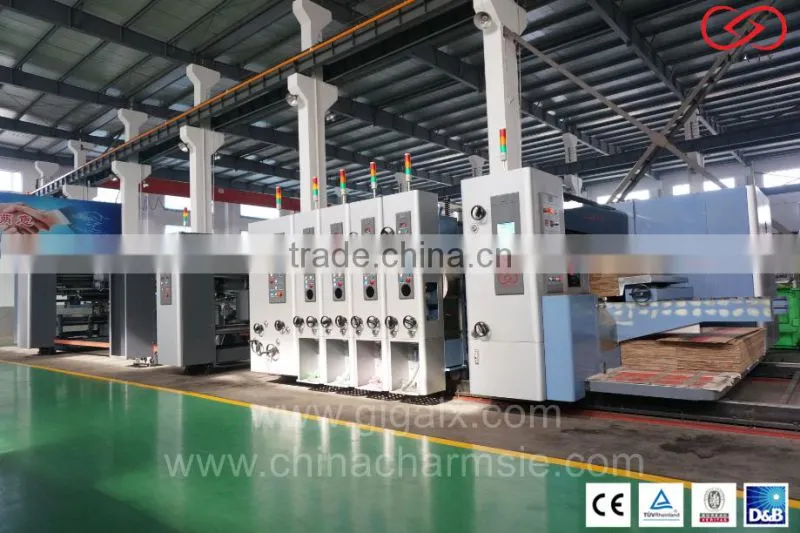

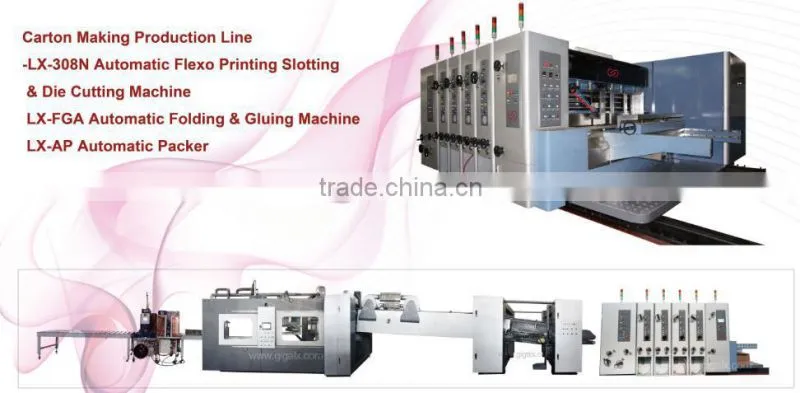

LX-308N Automatic Carton Box Making Machine +LX-FGA Folder Gluer Realistic Pictures
