Specifications
KB-125C cheap but high quality concrete roof tile production linecement + sand = raw material
3000-4000pcs per 8 hours
KB-125C cheap but high quality concrete roof tile production line
KB-125C cheap but high quality concrete roof tile production line
(tile making machine, molding machine, fast forming machine, roof machine)
details specification for KB-125C concrete roof tile production line
| moulding presure | 125T |
| moulding speed | 7-8pcs/min,more than 3000pcs/shift |
| main frame power | 5.5 KW |
| main frame weight | about 5T |
| external dimension | 2700*1600*2480mm |
charactor mainly for KB-125C concrete roof tile production line
1)Its with the merits of fast molding speed, large output, reliable performance, PLC automatic control and convenient operation. Its hydropneumatic, with the speed as high as 7-8 pieces/min. 3000-3500pcs/shift=8hours/day.In addition, the rate of finished products is high, and the quality-price-relative is better.
2)The cement-tiles made of the mortar concrete with press-filtering molding are with the perfect structure. In addition, there are many kinds available, with high density, strong intensity, and nice dimensions, which are the excellent on the concrete products, meeting the different construction requirements
3)The machine is with multi - functional. By changing molds, it could be used to produce master tile, ridge tile, edge tile, drain-tile, etc. In addition, it could also be used to product various top-grade colorful ground tile, including terrazzo tile, bathing tile, etc.
4)Our KB-125C also can produce Terrazzo tiles size no more than 400*400mm. Very profitable for customers.
full production line of KB-125C concrete roof tile production line
support equipments and post operators KB-125C concrete roof tile production line
| 1 | Moulding machine | 1 set |
| 2 | constant feeder machine | 1 set |
| 3 | blender | 1 set |
| 4 | elevator machine | 1 set |
| 5 | air compressor | 1 set |
| 6 | color painter | 1 set |
tipical roof tile samples made by KB-125C concrete roof tile production line
| Japan Style | SpanishStyle | Flat Tile | Green tile |
| 424×337mm | 350×338mm | 424×337mm | 424×286mm |
| Weight: 4kg | Weight: 4kg | Weight: 4kg | Weight: 4kg |
| Cement:Sand 1:(1.5-2) | Cement:Sand1:(1.5-2) | Cement:Sand 1:(1.5-2) | Cement:Sand 1:(1.5-2) |
| Unit volume 9.1parcel/m2 | Unit volume 9.1parcel/m2 | Unit volume 9.1parcel/m2 | Unit volume 9.1parcel/m2 |
| Capacity≥2200N | Capacity≥2200N | Capacity≥2200N | Capacity≥2200N |
functional products samples for KB-125C concrete roof tile production line, such as terrazzo floor tiles, ceramic tiles, curbstone .....etc

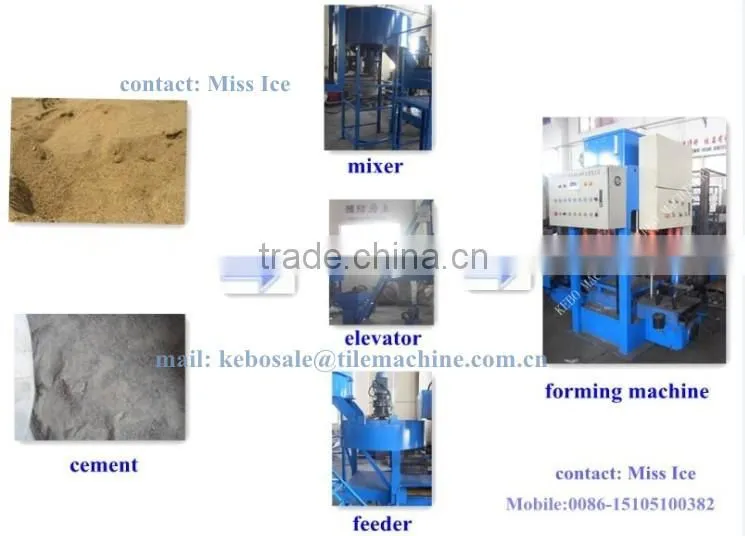

work flow:
Raw material→ 2.Bucket type elevator →3. Wheel type mixer→ 4. Quantitative constant feeding machine→ 5. Roof tile making machine→6. Roof tile pallet→7. Roof tile curing rack→8.24 hours curing →9.paintng corlor →8.Sell out
for details information,pls feel free to contact with me of following information. welcome you come to visit our factory if you come China:
