KB-125C roof tiles floor tiles Concrete roof tile making machine
- 10 Set / Sets per Month
- T/T
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Concrete |
Use: | Roof | Production Capacity: | 5-6pcs/min | Place of Origin: | Jiangsu, China |
Brand Name: | KBJX roof tiles floor tiles Concrete roof tile making machine | Model Number: | KB-125C roof tiles floor tiles Concrete roof tile making machine | Power(W): | 5.5KW |
Voltage: | 110-380v | Dimension(L*W*H): | 2700*1600*2480mm | Weight: | 8T |
Certification: | ISO9001 | Warranty: | 1year for KB-125C Concrete roof tile making machine | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
KB-125C roof tiles floor tiles Concrete roof tile making machine
(tiles making machine, concrete tile machine/ concrete floor tile making machine)
-- cement + sand
-- 3000 pcs per shift
-- full automatic
-- mixer, elevator, feeder, moulding machine and pallets
-- iron moulds, metal pallets
roof tile mould for KB-125C roof tiles floor tiles Concrete roof tile making machine
metal pallet :
pls view following production process working flow and supposed operators for KB-125C Concrete roof tile making machine
No. | Post | Operators |
1 | Main Moulding machine operation | 1 |
2 | Mixer supplying and operation | 1 |
3 | Moving wet products to tile rack | 2 |
4 | Transiting green products into curing room | 1 |
5 | polishing machine | 1 |
6 | stacker machine | 1 |
Elevating - Mixing - Fixed-quantity filling -Pressure forming- Mould unloading - Forming tiles - Maintenance - Finished products
Main technical parameters of KB-125C roof tiles floor tiles Concrete roof tile making machine
# | Main technical parameters | Details |
1 | Voltage | 380 V |
2 | Molding Cycle | 8-10 seconds / piece |
3 | Molding Pressure | 1800 Kilo Newton |
4 | Normal Roof Tile Size 1 | 420 x 330 x 15 mm |
5 | Normal Roof Tile Size 2 | 424 x 337 x 15 mm |
6 | Maximum Roof Tile Size | 600 x 600 x 20 mm |
7 | Power of the Main Machine | 7.5 KW |
8 | Weight of the Main Machine | 5 Ton |
9 | Dimension of the Main Machine | 3100 x 1650 x 2650 mm |
10 | Output for Roof Tiles Per 8 Hours | 3000-3600 pieces |
Technical parameters change as follows when the KB-125C roof tiles floor tiles Concrete roof tile making machine makes floor tiles by changing mold:
# | Main technical parameters | Details |
2 | Molding Cycle | 10-12 seconds / piece |
4 | Normal Terrazzo Size 1 | 300 x 300 x 15 mm |
5 | Normal Terrazzo Size 2 | 400 x 400 x 15 mm |
9 | Output for Terrazzos Per 8 Hours | 2000-2800 pieces |
The KB-125C roof tiles floor tiles Concrete roof tile making machine includes the following parts:
# | Product Name | |
1 | one bucket elevator | |
2 | one vertical mixer | |
3 | one quantitative feeding mixer | |
4 | one moulding machine | |
5 | one hydraulic forklift | |
6 | one manual ridge/edge tile making machine | |
7 | 2000 pieces of steel tile moulds | |
8 | 5 pieces of plastic ridge tile moulds and 5 pieces of plastic edge tile moulds |
each equipment has details picture for KB-125C roof tiles floor tiles Concrete roof tile making machine , pls view following:
full production line picture --
elevator has a bucket to hold mixer like cement and sand
wheel mixer after elevator of material
constant feeder after mixer and before moulding
moulding machine to form tiles:

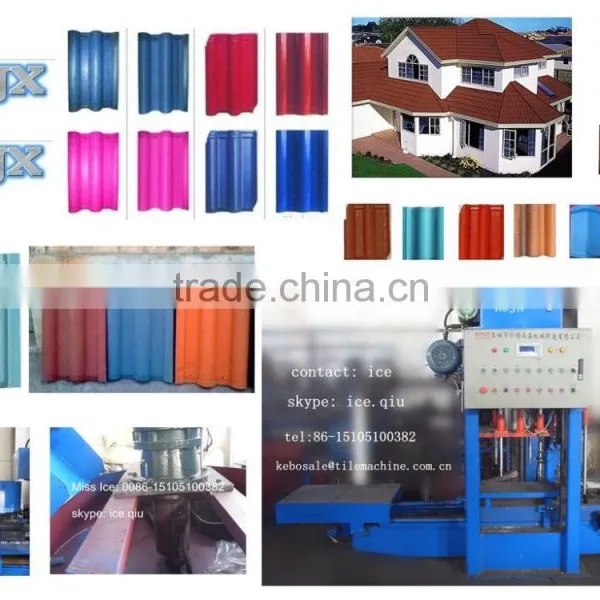

roof tiles samples, margin roof tile, ridge roof tile, three-way... for KB-125C Concrete roof tile making machine
delievery picture of KB-125C Concrete roof tile making machine
FAQ:
1. How about the Delivery time?
Lead time since receipt of 30% T/T deposit payment: 45 days. Samples will be prepared within 5 Days.
2. What kind of payments does jenor support?
T/T, L/C, Western Union, PayPal & Cash are accepted.
3. Can you produce according to customers' design?
Sauce, we are professional manufacturer; OEM and ODM are both welcome.
6. Can you tell me your main customers?
That's our customer’s privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
for details information pls feel free to contact following information with me, if you have time, welcome you to visit our factory for KB-125C Concrete roof tile making machine
