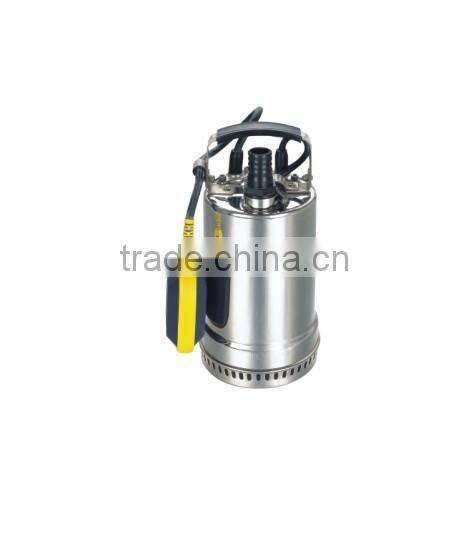

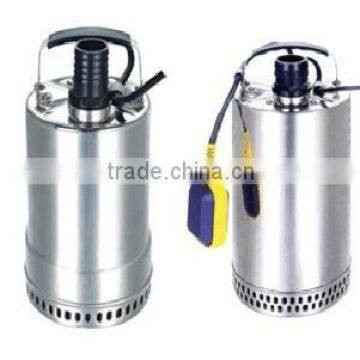

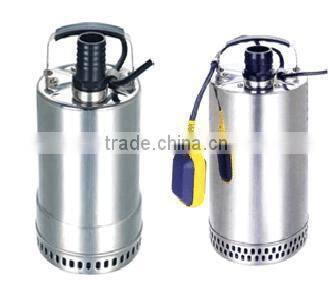

Help CenterSewage Pump Stainless Steel Centrifugal Submersible Pump
Related Products
-
HIGH PRESSURE MULTISTAGE WATER PUMPNegotiableMOQ: 1 Set -
Hot Selling Products Concrete Roof Tile Making MachineUS$ 25,000 - 36,000MOQ: 1 Set
-
Trending Hot Products Ridge Cap Roof Tile Making MachineUS$ 25,000 - 36,000MOQ: 1 Set
-
2016 New Products on China Market Colour Stone Coated Step Roof Tile Making MachineryUS$ 25,000 - 36,000MOQ: 1 Set
-
New Hot Selling Products Colorful Stone Coated Roof Tile Making MachineUS$ 25,000 - 36,000MOQ: 1 Set
RANGE OF PERFORMANCE
8Flow rate up to 400 l/min (24 m3/h)
8Head up to 14 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel.
8Environment temperature up to +40°C
8PH value in water : 4-10
8Maximum passage for suspended solids 2mm
WORKING PRINCIPLE
8Complete stainless steel structure,rust free and anti corrosion.No water diversion, convenient to use and easy to install. It can be made of standard AISI SS 304 (for PH value 4-10) or 316L (for PH value 0-12) on request to apply in medicine industry, food industry ,chemical industry and seawater industry etc.
STRUCTURAL CHARACTERISTIC
8Pump body : Stainless steel
8Impeller : Stainless steel with centrifugal radial flow type
8Motor body : Stainless Steel
8Mechanical seal : Stainless steel (SiC to SiC)
8Shaft : AISI SS420
8Bearing : C&U, NSK or China local
8Insulation class : B
8Protection class : IP 68
8With float switch (or without).
8With thermal overload protector in single phase motor
