KB-125E/400 small plant floor tile making machine
- 10 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Concrete |
Use: | Floor | Production Capacity: | 6-8pcs/min | Place of Origin: | Jiangsu, China |
Brand Name: | KBJX floor tile making machine | Model Number: | KB-125E/400 small plant floor tile making machine | Power(W): | 7.5KW |
Voltage: | 110-380v | Dimension(L*W*H): | 2700*1600*2480mm | Weight: | 8T |
Certification: | ISO9001 | Warranty: | 1year for KB-125E/400 floor tile making machine | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
KB-125E/400 small plant floor tile making machinePLC control, Chint electromagnetic valve
low price, easy operate
KB-125E/400 small plant floor tile making machine
(terrazzo tile machine, floor tile making machine, concrete tile machine/ ceramic floor tile making machine)
Main performance data for KB-125E/400 floor tile making machine
Technical data | |
moulding presure | 125T |
moulding speed | 5-8pcs/min,more than 3000pcs/shift |
main frame weight | about 5T |
external dimension | 2700*1600*2480mm |
Troduction capability | |
floor tile | 5-8 pcs/min |
Artifical stone | 5-8 pcs/min |
roof tile | 5-8 pcs/min |
Double layer terrazzo tile | 4-5 pcs/min |
Mainly electronic equipments introduction for KB-125E/400
Control System: Japan Mitsubishi PLC | Mixer Electric Control Cabinet |
Hydraulic System: Molding Pressure128T | Lift Motor, Transmission Machinery |
Sealing Motor | Ridge Tile Machine |
Hydraulic Cylinder | Feeding Distance: 300MM |
Bucket Elevator | Host Weight: 8T |
Electromagnetic Steering Valve: Made in ShLiX | Total Power: 17KW |
Mortar Quantitative System: 600KG | Molding Cycle: 6-8 S |
Elevator | Capacity(8 hour): 2500-3000PCS |
Support equipments of KB-125E/400 floor tile machine
1 | Moulding machine (KB-125E) | 1 set |
2 | constant feeder machine | 1 set |
3 | blender | 1 set |
4 | elevator machine | 1 set |
5 | air compressor | 1 set |
6 | polishing machine | 1 set |
7 | stacker machine | 1 set |
Production process for KB-125E/400 floor tile machine
terrazzo floor tile work flow: Elevating - Mixing - Fixed-quantity filling -Pressure forming- Mould unloading - Forming tiles - Maintenance - Finished products

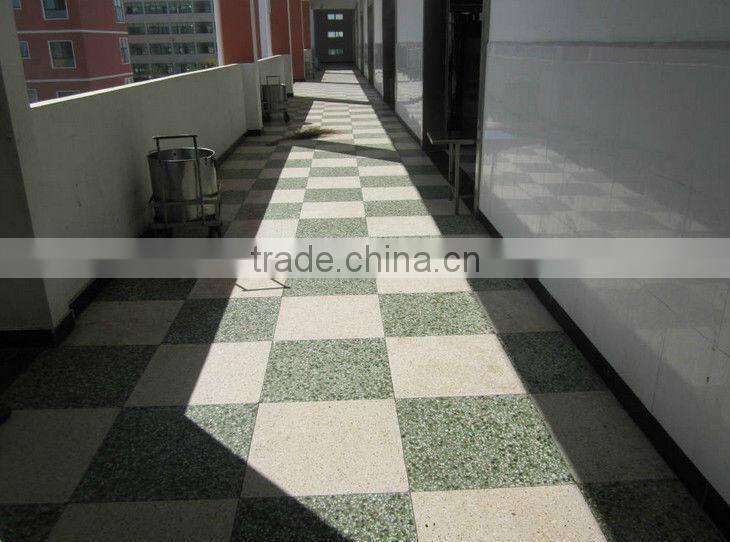

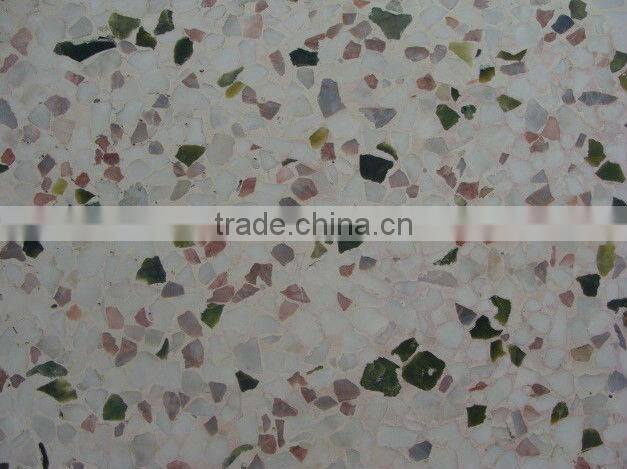

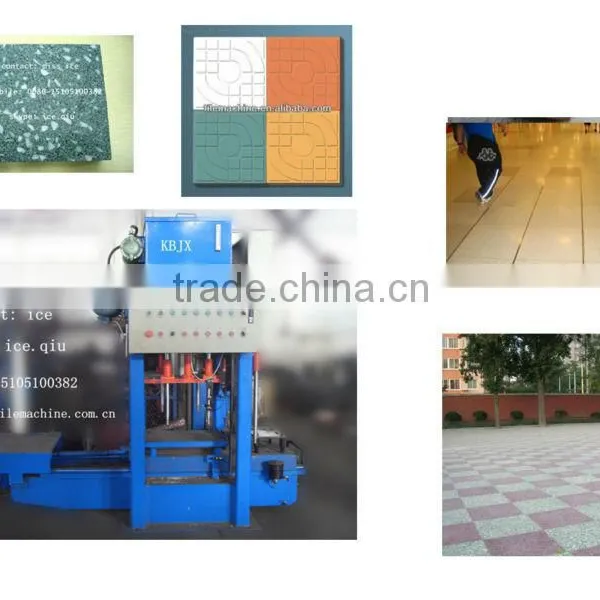

tiles samples made for KB-125E/400 floor tile machine, terrazzo tiles, marble tiles, roof tiles...

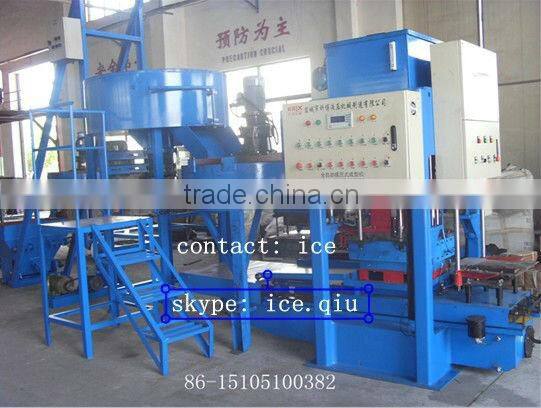

machine sample for KB-125E/400 Hydraylic press floor tile making machine

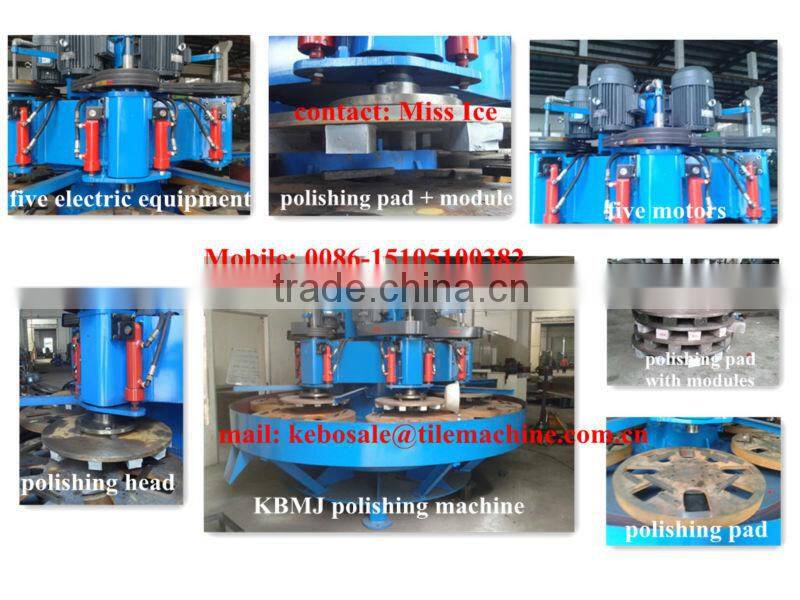

polishing machine sample:
for details information pls feel free to contact following information with me:
