ALN- 9610 HIGGS 3 smallest Dry Inlay for label and tag in asset management
| Product code | ALN-9610 |
| Product Category | Passive RFID antenna |
| Antenna Material | Aluminum Al (30μm) + PET (38μm) |
| Chip | ALN H3 |
| Frequency | 860—960 MHz |
| RF Protocol | ISO-18000-6C, EPC Class 1, Gen 2 |
| User capacity | 512bits |
| EPC capacity | 96bits |
| Working life | 100000 times / 10 years |
| Antenna size | 44* 10 mm |
| Wet inlay | 47*13 mm |
| Thickness | 0.07mm (chip location: 0.23mm) |
| Weight | 0.01g |
| Working temperature | -20℃ to +60℃ |
| Storage temperature | -25℃ to +65℃ |

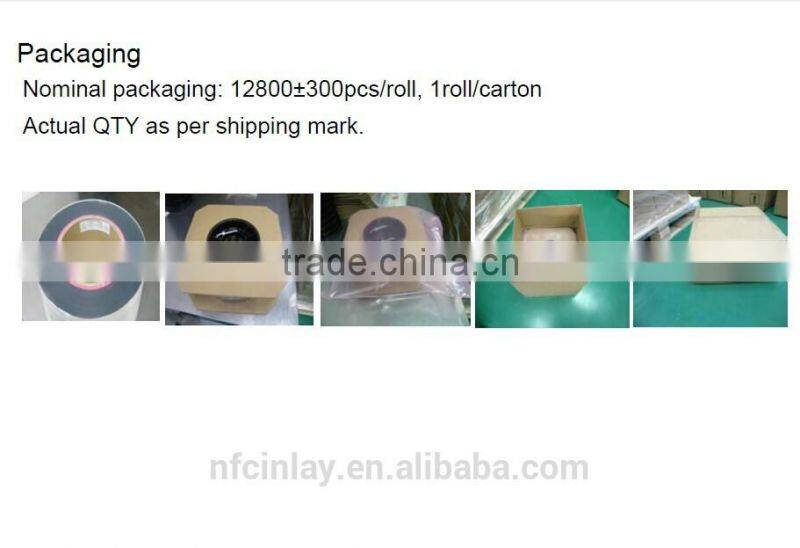

| Packing | 1000pcs/roll or by customized |
| Read Distance | up to 6m depending on antenna geometry and reader configuration |
| Shelf life | one year Under the conditions of vacuum packaging,temp 20-30℃/humidity 20%-60% |
| Application | Identification,Card, Logistics, Library, Asset management, Payment, Access control |

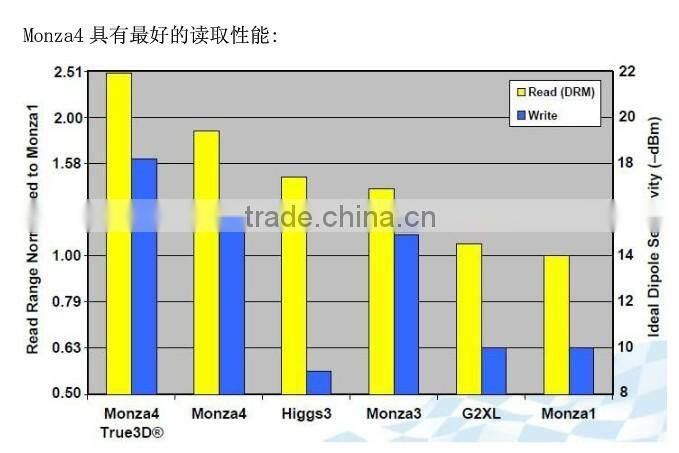

Read distance between different UHF chip

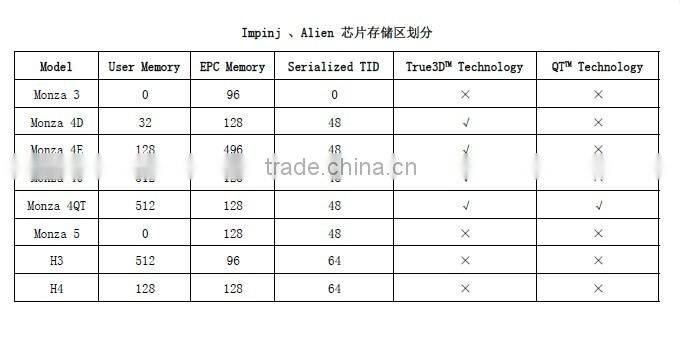

Difference structure of UHF chip
RFID AND CARD CO LTD offer the Dry/Wet Inlay to the market with economic price. The chip we use are from the NXP, Alien, and IMPINJ etc, large and quality international companies. Our products are now widely used in the identification, public transportation, entrance guard channel, tickets, payment, asset management, logistics and other industries.
RFID AND CARD CO LTD offer series RFID inlays suitable for many different environments and applications. We are continually updating and adding RFID products to our website in the relentless pursuit to bring our customers the very best that this technology has to offer. If there is a particular inlay you are searching for, but can’t seem to find anywhere, please contact us, and we'll assist you in getting what you need.
