13.56MHz 1024bits Wet Inlay Rfid Inlay and Smart Label

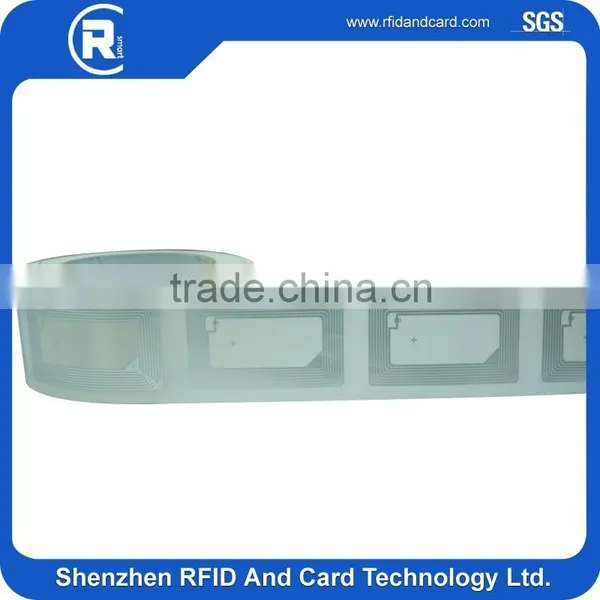

13.56MHz 1024bits Wet Inlay Rfid Inlay and Smart Label photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
Icode SLI-1126
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ HK
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Model Number Icode SLI-1126

13.56MHz 1024bits wet inlay rfid inlay and smart label







Product code

ICSLI-1126

Product Category

Passive RFID antenna

Antenna Material

Aluminum Al (30μm) + PET (38μm) + Al bridge (10μm)

Chip

Icode SLI

Frequency

13.56 MHz

RF Protocol

ISO-15693, 18000-3 Mode 1

Capacity

1024bits

Read Distance

4.5~8cm

Working life

100000 times / 10 years

Antenna size

76*45 mm

Wet inlay

85.5*54 mm

Thickness

0.07mm (chip location: 0.23mm)

Weight

0.01g

Working temperature

-20℃ to +60℃

Storage temperature

-25℃ to +65℃

Packing

1000pcs/roll or by customized

Read Distance

up to 4.5~8cm depending on antenna geometry and reader configuration

Shelf life

one year Under the conditions of vacuum packaging,temp 20-30℃/humidity 20%-60%

Application

Identification,Card, Logistics, Library, Asset management, Payment, Access control



Handling

  • Inlays with ink marks are defective, do not use.
  • RFID Inlays or labels are sensitive product, do not bend or stretch
  • Static-free bag will be use for packing; always keep environmental static charge to a minimum.
  • InlaySolution reserves the right to modify, change, supplement or discontinue product offerings at any time without notice
  • All products from Unico Solution should be tested by the customer/user thoroughly to ensure the product meets the particular requirements.
  • Unico Solution does not represent that this product is fit for any particular purpose or use.
