QCS 2000 Max Production 3600 Bot/h Bottle Stretch Blow Molding Machine

QCS 2000 Max Production 3600 Bot/h Bottle Stretch Blow Molding Machine thumbnail-1
QCS 2000 Max Production 3600 Bot/h Bottle Stretch Blow Molding Machine thumbnail-2
QCS 2000 Max Production 3600 Bot/h Bottle Stretch Blow Molding Machine photo-1

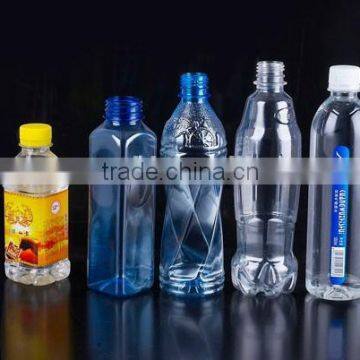

QCS 2000 Max Production 3600 Bot/h Bottle Stretch Blow Molding Machine photo-2
US$ 30,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PET
Contact Supplier Request Quote Chat Now
Huangyan Yanjun Mould Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO / SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Bottle
Plastic Processed PET
Blow Moulding Type Stretch Blow Moulding
Automatic Yes
Place of Origin Zhejiang, China
Brand Name QCS
Model Number QCS-200
Voltage 380V/50HZ
Power(W) 30W
Dimension(L*W*H) 2450*1500*1900mm
Weight 2450kg
Certification CE / HACCP
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

QCS 3000 Max Production 3600 bot/h Bottle Stretch Blow Molding Machine

Product Description

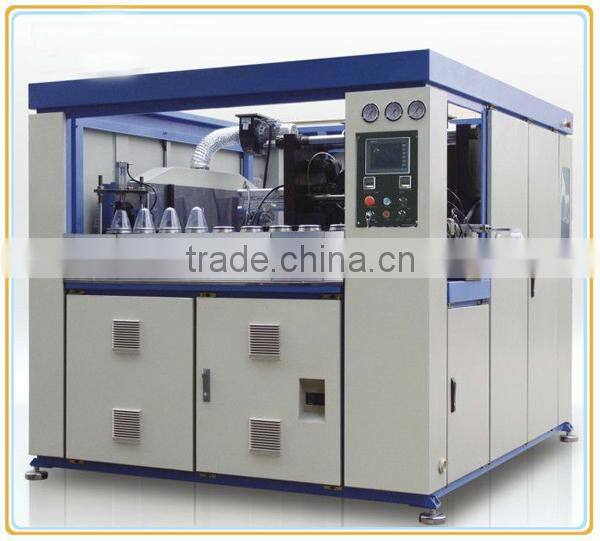

QCS 2000 Max Production 3600 bot/h Bottle Stretch Blow Molding Machine



QCS 2000 Max Production 3600 bot/h Bottle Stretch Blow Molding Machine



QCS 2000 Max Production 3600 bot/h Bottle Stretch Blow Molding Machine



QCS 2000 Max Production 3600 bot/h Bottle Stretch Blow Molding Machine



QCS 2000 Max Production 3600 bot/h Bottle Stretch Blow Molding Machine



QCS Specification
Model QCS-2000 QCS-3000 QCS-4000 QCS-6000
Max Production Capacity   1800 1200 3600 5600
Product Volume(ml) 2000 5000 2000 2000
Diameter Max(mm) 100 180 100 100
Height Max(mm) 350 340 350 350
Mould Cavity 2 2 4 6
Clamping Force 66.48   66.48 66.48
Opening Stroke 140 200 140 140
Blow Mold 120 190 120 120
Thickness(mm) 200 280 200 200
Width*Height Max(mm) 460*360 450*420 460*530 700*530
Preform Neck Size Max(mm) 15-35 32-40 15-35 15-35
Length Max(mm) 120 180 120 120
Heat Oven Lamp Number 24 40 32 48
Adjust Zone 2 4 3 6
Electrical Power 380v/3p/50hz 380v/3p/50hz 380v/50hz 380v/50hz
Heating Power 28 60 48 72
General Power 30 65 50 75
Compresses Air Blow Compressed 3.0-4.0Mpa 3.0-4.0Mpa 3.0-4.0Mpa 3.0-4.0Mpa
Drive Compressed 0.8-1,0Mpa 0.8-1,0Mpa 0.8-1,0Mpa 0.8-1,0Mpa
Machine Dimension Main Machine(kg) 2450*1500*1900 2500*1700*2050 3000*1950*1950 4400*1950*1950
Preform Auto-Feeder 2300*2400*2600 3000*1600*3000 2300*2300*2600 2300*2400*2600
Machine Weight Main Machine(kg) 2000 3400 3300 4300
Preform Auto-Feeder 280 280 280 380
Machine Packaging Dimensions Main Machine(kg) 2570*1750*2200 2650*1850*2150 3200*2150*2150 4600*2150*2150
Preform Auto-Feeder 3000*1400*1700 3150*1500*2250 3300*1400*1700 3000*1500*1700
Machine Weight Main Machine(kg) 2450 3650 3550 4700
Preform Auto-Feeder 510 510 510 610



Blow Machine Feature

1.All functions and operation under the control of computer PLC and touch screen;

2.The machine operating system can store 20 sets blowing data;

3.All pneumatic elements are famous international brands,such as FESTO low pressure valve,FESTO clamping cylinder,France Schneider PLC and electrical parts, the American PARKER high pressure valves, the German SICK radio and Photo switch,etc;

4.New design heating unit reduce the bottle preform distance, Single line infrared lamp heat both sides of preform,can save electric energy more than 50%;

5.Independent temperature control for each heating lamp can make every preform heated precisely and evenly;

6.Independent clamping of each cavity,higher accuracy,fast speed;

7.Special design of the clamping system reduce the diameter of the cylinder,save 40% low compressor pressure;

8.Fast mould change can be finished by one person only;

9.Simple machine structure,stable function,easy operation.

10.The percent of pass is over 99.9%;



Related Product

QCS 2000 Max Production 3600 bot/h Bottle Stretch Blow Molding MachineQCS 2000 Max Production 3600 bot/h Bottle Stretch Blow Molding MachineQCS 2000 Max Production 3600 bot/h Bottle Stretch Blow Molding Machine

Packing&Shipping2

QCS 2000 Max Production 3600 bot/h Bottle Stretch Blow Molding Machine

Company Information



QCS 2000 Max Production 3600 bot/h Bottle Stretch Blow Molding Machine

     Yanjun Mould,founded in 1988,specializes in mould and blow molding machine design,develop and manufacture.Now there are more than 60 workers and covers an area of 3000m2.Moulds are sold to more than 60 countries and areas,including German,Russia,Indonesia,etc.
