Welcome to Qingdao Juyuan,
Customer first,integrity based.
Dedicating to provide you a better caring service!
Description:

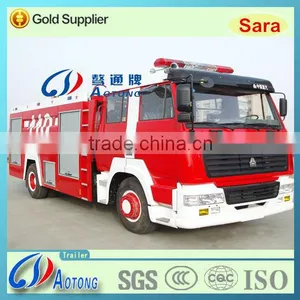

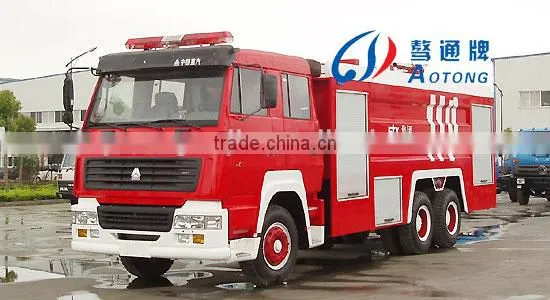

Dongfeng Chassis 4*2 Fire Fighting Truck/Water and Foam Fire Truck (8000L)
1. Chassis Model: EQ1141
2. More than 12 years professional manufacturer experience
3. Be designed according to your requirements
4. CCC ISO9001 SGS agreement
5. Small order can be accepted
6. 1 year quality guarantee term
7. We accept 100% inspection, welcome to our factory at any time
Specifications:
Fire Truck Specifications |
|
||||
Chassis Model /Manufacturer |
EQ1141/ Dongfeng |
||||
Overall Dimension |
Length×Width×Height |
7900×2470×3390 mm |
|||
Total Mass |
14900Kg |
||||
Max Payload |
10000 Kg |
||||
Kerb Weight |
6880Kg |
||||
The parameters of chassis | |||||
Chassis Model /Manufacturer |
EQ1141 |
||||
driving type |
4*2 |
||||
Cab type |
single row |
||||
Engine |
Manufacturer : |
Dongfeng Cummins |
|||
Model |
B190 33 |
||||
Rated Power |
190HP |
||||
Maximum power |
140(KW) |
||||
Displacement |
5900 ML |
||||
Fuel type |
Diesel oil |
||||
Wheel base |
4500mm |
||||
Front/Rear wheel tread |
1940/1860mm |
||||
The number of leaf spring |
8/10+8 |
||||
Tire |
10.00-20 |
||||
The number of tire |
6+1(spare tire) |
||||
A/C Air Conditioning |
optional |
||||
Max Speed |
85Km/h |
||||
Fire truck technical parameters | |||||
Agent |
Water |
5000 L |
|||
Foam |
2000 L |
||||

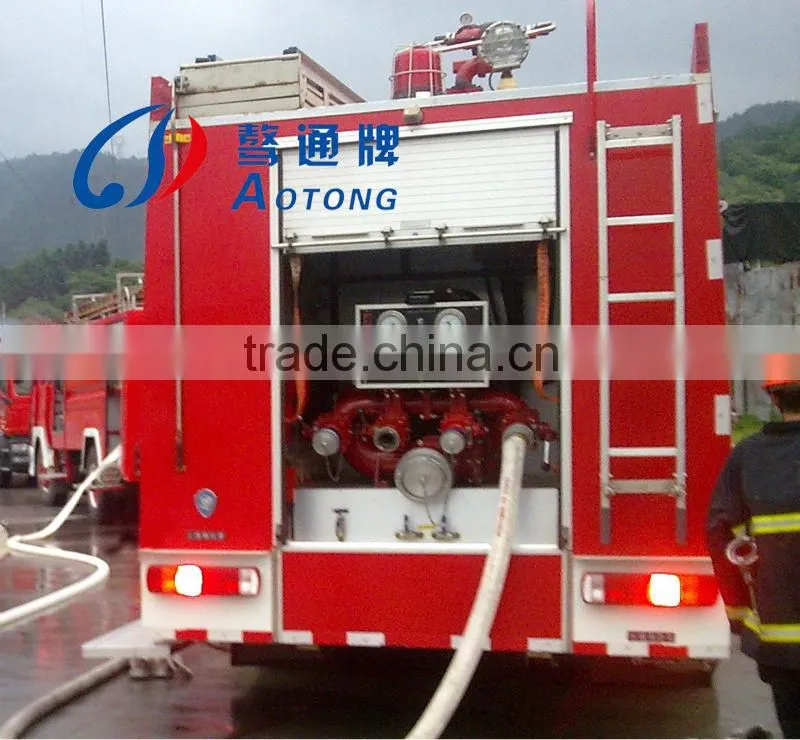

Fire pump |
Model |
CB10/40 normal pressure pump(Rear), high strength aluminum alloy, piston water device |
|||
Pressure |
1.0(Mpa) |
||||
Flux |
40(L/s) |
||||
Max suction deep |
≥7(m) |
||||
Suction time |
≤35(s) |
||||
Fire monitor |
model |
PP24 |
|||
Range |
water |
≥50 (m) |
|||
foam |
≥45 (m) |
||||
working pressure |
≤1.0(Mpa) |
||||
Horizontal rotation angle |
360 º |
||||
Application:
Applicable for fire or other emergency rescue use vehicles.
1, High efficiency
2, High pressure
3, Good sealing
4, Safety performance
5, Convenient operation
After-sales Service:

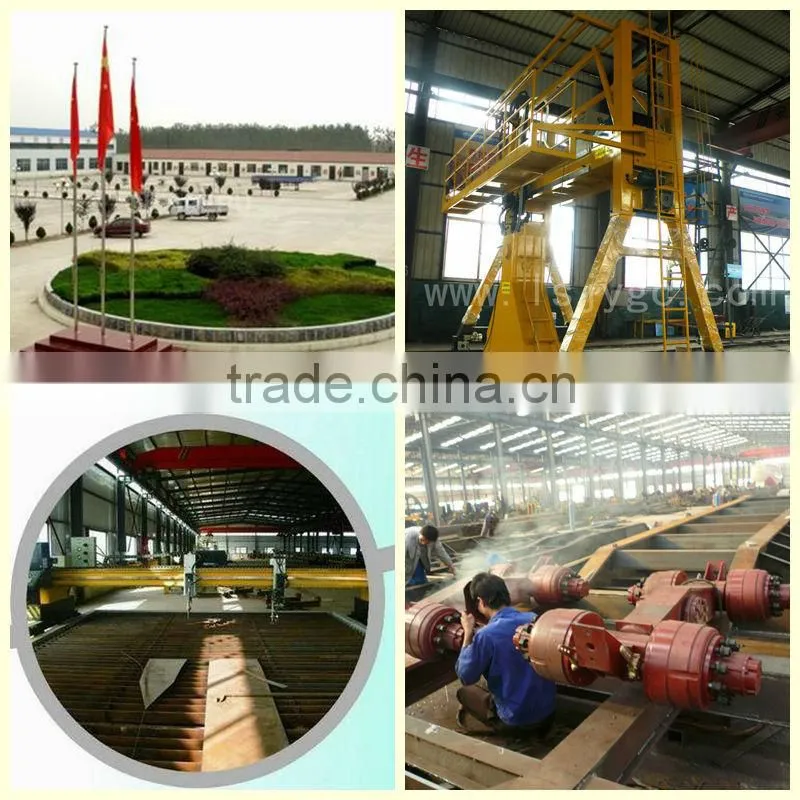

View of factory&Certificate:
Contact:
l Contact:Sara Jiang
l Tel: +86-0532 85699621 Fax: +86-0532 85699645
l Mobile: +86-151 9276 5060
l Skype: sara.jiang403
l Address:Room 311, No.135, Fuzhou North Road, Shibei District, Qingdao
l Website:
Pls contact Sara Jiang for details, good quotation and further product information will be provided as you required.
