Home > Transportation > Specialized Vehicle > Mixer Truck > HOWO SINOTRUK 290HP-370HP 8m3-10m3 Cubic Meters Concrete Cement Mixer Truck Trailer

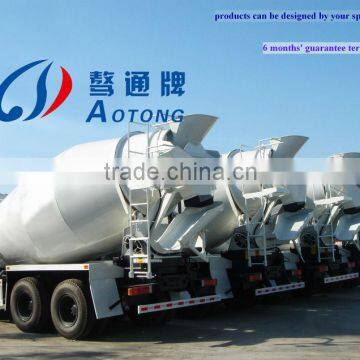

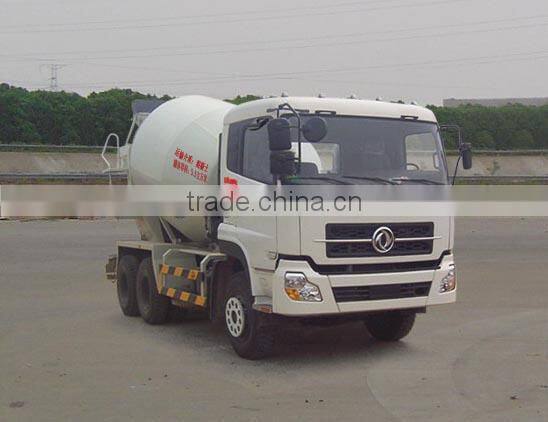

HOWO SINOTRUK 290HP-370HP 8m3-10m3 Cubic Meters Concrete Cement Mixer Truck Trailer
US$ 25,000 - 60,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HOWO
Model Number:
ZZ1257M3247W
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8 Cubic Meters Concrete Mixer Truck Semi TrailerUS$ 22,000 - 35,000MOQ: 1 Set -
China Hot Sale 290HP-370HP 8m3--10m3 Cubic Meters Concrete Mixer Truck Cement Mixer Truck Trailer Cement Mixer Truck TrailerUS$ 25,000 - 60,000MOQ: 1 Unit
-
Concrete Mixer TruckUS$ 15,000 - 30,000MOQ: 1 Set
-
Hot Sale 290HP-370HP 8m3--10m3 Cubic Meters Concrete Mixer Truck Cement Mixer Truck Trailer Cement Mixer Truck TrailerUS$ 25,000 - 60,000MOQ: 1 Unit
-
6*4 Styre Fire Fighting Truck/Water and Foam Fire Truck (8000L)US$ 30,000 - 80,000MOQ: 1 Unit
Place of Origin
Shandong, China
Brand Name
HOWO
Model Number
ZZ1257M3247W
Gross Vehicle Weight
13100
Hot Sale 290HP-370HP 8m³-10m³ Cubic Meters Concrete Mixer Truck Cement Mixer Truck Trailer Cement Mixer Truck Trailer
1. Model: GVW25000kg
2.12 months guarantee system
3.High quality and service
4.Practical and Economical
5.3C ISO certification
6. Small order can be accepted.
7.more than 12 years experience manufacturer
1. Hydraulic drive system adopts advanced equipment, system layout and clear, reliable operation and low failure rate.
2. Fittings all adopt domestic and international famous manufacturer, and strictly according to quality system requirements, test, use, and ensuring the vehicle good performance, stirring tube using pear type structure, mixing tube using leaf blade, the double helix surface in different cone segment using different leaf, make concrete fully mixing, and to ensure the quality of concrete. Tanks surface spraying two layers of polyurethane topcoat adopts baking process, even coating, adhesion strong, burnish more abiding.
| GVW25000kg Driving Type 6x4 | 4x2 is optional | |||
| Model | ZZ1257M3247W | ZZ5257GJBM3641W | ZZ5257GJBM3841W | |
| ZZ5257GJBN3247W | ZZ5257GJBN3641W | ZZ5257GJBN3841W | ||
| ZZ5257GJBS3247W | ||||
| Product code | 52576028 | 52576029 | 525760210 | |
| 52576038 | 52576099 | 525760910 | ||
| 52576048 | ||||
| Cubage(m3) | 8 | 9 | 10 | |
| Cab | HW76 | HW76 | HW76 | |
| Engine(Hp) | 290 | 290 | 290 | |
| 336 | 336/371 | 336/371 | ||
| 371 | ||||
| Power(Kw) | 213 | 213 | 213 | |
| 247 | 247/273 | 247/273 | ||
| 273 | ||||
| Transmission | HW15710/HW19710 | HW15710/HW19710 | HW15710/HW19710 | |
| Front Axle | HF9 | HF9 | HF9 | |
| Steering | ZF8098 | ZF8098 | ZF8098 | |
| Rear Axles | HC16 | HC16 | HC16 | |
| Wheels & Tyres | 8.5/12.00R20 | 8.5/12.00R20 | 8.5/12.00R20 | |
| Dimensions(mm) | 8204x2496x3850 | 8715x2496x3850 | 9040x2496x3850 | |
| Kerb weight (Kg) | 12800 | 13100 | 13220 | |
| Wheel base(mm) | 3225+1350 | 3625+1350 | 3825+1350 | |
| Engine | Model | WD615.87 | WD615.69 | WD615.47 |
| Horsepower | 290 | 336 | 371 | |
| Maximum output | 213/2200 | 247/2200 | 273/2200 | |
| Kw/r/min | ||||
| Maximum torque | 1160/1100-1600 | 1350/1300-1600 | 1460/1300-1600 | |
| N. m/r/min | ||||
| Type | 6-cylinder in line, 4-stroke, water-cooled | |||
| turbo-charged & inter-cooled, direct injection | ||||
| Bore x Stroke | 126x130mm | |||
| Valve | 2 | |||
| Displacement | 9.726L | |||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80 degrees Celsius | ||||
| opening begin, Rigid fan | ||||
| Option: Thermostat with 71 degrees Celsius opening begin; silicone oil fan; Cold-start with | ||||
| electric-inlet-air heating System (180Ah battery) | ||||
| Cab | SINOTRUK HW76 Lengthen cab, single bunk, new type seat, adjustable steering | |||
| wheel, EURO new type heating & ventilating system, German VDO instruments | ||||
| safety belts, exterior sun visor, stereo radio/cassette recorder, left driving | ||||
| air conditioner. Option: right driving; color | ||||
| Clutch | SINOTRUK Φ 430 diaphragm-spring clutch, hydraulically operating with | |||
| air assistance | ||||
| Transmission | SINOTRUK HW15710 or HW19710 transmission , 10 forward and 2 reverse | |||
| Ratio: 14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 | ||||
| 13.91(R1) 3.18(R2) | ||||
| Front Axle | SINOTRUK HF9 Front Axle, new 9-ton front axles of equipped with drum brakes | |||
| Option: disc brake | ||||
| Steering | German ZF8098 Steering Gear Box , hydraulic steering with power assistance | |||
| Ratio: 22.2-26.2 | ||||
| Rear Axles | HC16 Heavy reduction drive axle, STR hub-reduction with differential locks | |||
| between wheels and axles, enforced STR axle, ratio: 5.73; The basic | ||||
| configuration of HOWO series construction vehicle can be used in such | ||||
| bad environment as bad road condition, heavy impact and overloading, | ||||
| which is the best choice for heavy construction vehicle customers. | ||||
| Brake | Service brake: dual circuit compressed air brake | |||
| System | Parking brake (emergency brake): spring energy, compressed air operating on | |||
| rear wheels | ||||
| Auxiliary brake: engine exhaust valve brake | ||||
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel ; Tyres: 12.00-20 diagonal tyre with 1 Spare tire | |||
| Option: 12.00R20 radial tyre | ||||
| Electrics | Operating voltage: 24V, negative grounded | |||
| Starter: 24V, 7.5 Kw | ||||
| Alternator: 3-phase, 28V, 1500 W | ||||
| Batteries: 2x12 V, 165 Ah | ||||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||||
| Option: 2x180Ah Batteries | ||||
| Oil Tank | Square type-300L Aluminum alloy fuel tank | |||
| Other | Vertical Muffler; ABS; Automatic Break Clearance Adjusting Arm; Traveling Data | |||
| Optional | Recorder; Under Starting/Stopping Device; Metal Pipeline; Engine Protective Board | |||
| Delivery date | Within 45 days after receipt advance | |||
| Weight | Gross vehicle weight 25000 | |||
| in kg | Front axle loading capacity 9000 | |||
| Rear axles loading capacity 2x16000 | ||||
| Performance | Maximum drving speed (km/h) 75 | |||
| Fuel consumption (1/100 km) 38 | ||||
| The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||||
,
