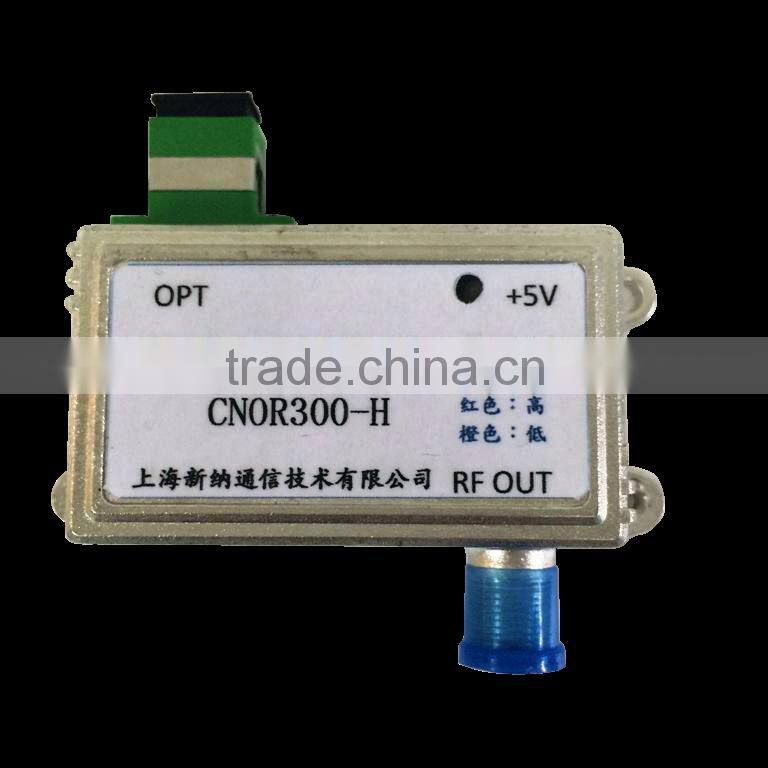

CNOR300-H
Digital TV FTTH Mini Optical Receiver
CNOR300-H mini optical receiver is a product for FTTH (fiber to the home) developed by CINACOM. Its low power consumption, good heat dissipation, extra-low optical power receiving, convenient maintenance and low price enable it to be the prior choice of users.
- Bandwidth: 47~1003MHz
- Input optical power: +2 ~-12dBm
- Output impedance: 75Ω
- Adopting GaAs synthesis technology
- +5V power adapter
- Mini size
Indicator instruction of input optical power | |
Indicator Color |
Description |
Green |
Normal(-10~+2dBm) |
Orange |
Low (<-10dBm) |
Red |
High (>+2dBm) |
Item |
Unit |
parameters |
|
Input power |
dBm |
-12 ~ +2 |
|
Return loss |
dB |
> 45 |
|
Wavelength |
nm |
1100 ~ 1600 |
|
Connector |
SC/APC |
||
Fiber type |
Single mode |
||
C/N |
dB |
≥ 51 |
-1dBm receiving power |
C/CTB |
dB |
≥ 65 |
|
C/CSO |
dB |
≥ 65 |
|
Frequency range |
MHz |
45 ~ 862/1003 |
|
Flatness |
dB |
±1 |
|
Standard output level |
dBμV |
≥ 85 (-1dBm receiving power) |
|
Output return loss |
dB |
≥ 16 |
|
Output impedance |
Ω |
75 |
|
Consumption |
W |
<1 |
|
Work temp |
℃ |
-20 ~ +55 |
|
Size |
mm |
77*69*23 |
|
