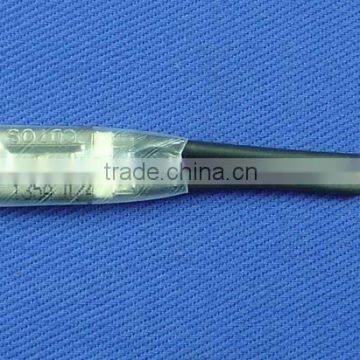

CD7OS Type Thermal Protector With PTC

Specifications

CD7OS Type Thermal Protector With PTC

Outer Size:

Application:CD7OS is an excess-current thermal protector with compact design. Main applications of CD7OS are as follows:

*Motor

*Commutator for fluorescent lamp

*Transformer

*Laminator, and various sort of household appliance.

Specification:

Function: Single-pole with contact opens when temperature range is reached.

Standard rating:UL&CUL: 120VAC 22A  , 16VDC 20A

                       VDE&IEC&CB: 120VAC 16A, 240VAC 9A, 12VDC 16A

Automatic Cycles: UL&CUL 10,000cycles, 100,000cycles(120VAC 5A)

                            VDE&IEC&CB: 10,000cycles

Max.Temperature(All standards): 180+/-5 Degree

Temperature range(All standards): 0~180 Degree

Tolerance(All standard):+/-5 Degree

Approvals: UL,CUL,VDE,IEC,CB

Special Features:

-CD7OS is relative compact designed and is operated with " Snap Action" which is detected by current and temperature.

-CD7OS can not reset automatically after being tripped off unless it is unplugged.

-Short circuit caused by contacting metal parts can be eliminated by leading wire with insulation sleeve attached.

Options:

-Length and leads type is optional.
