AC Electric Motor for Washing Machine

Specifications

AC Electric Motor
1,stable quality with reasonable price
2,smooth in operation with lowest noise
3,most energy-saving

AC Electric Motor for Washing Machine





We are a reputed manufacturer of Washing Machine Motors that are widely applied in various types of washing machines, such as semi-automatic, fully automatic, single tub, twin tub, top loading and front loading.



Model	Rate Power	Voltage	Frequency	Capacitor	Pole	Speed	Noise
YYG-45	45W	220V	50Hz	4uF	4 Class	>1300	<=48db
YYG-45	45W	110V	60Hz	14uF	6 Class	>950	<=48db
YYG-60	60W	220V	50Hz	4/5uF	4 Class	>1300	<=48db
YYG-60	60W	220V	60Hz	5uF	6 Class	>950	<=48db
YYG-60	60W	110V	60Hz	14uF	4 Class	>1300	<=48db
YYG-60	60W	110V	60Hz	18uF	6 Class	>950	<=48db
YYG-70	70W	220V	50Hz	5/6uF	4 Class	>1300	<=48db
YYG-70	70W	110V	60Hz	14uF	4 Class	>1600	<=48db

 Specifications:

1-Shaft diameter or length can be any as customers request

2-Stator height can be any from 10mm to 50mm.
3-Mounting holes size and distance can be any as customers needs
4-Brackets can be either metal or aluminum. Its height can be changed.

5-Motor rotation direction can be CW or CCW.

6-The motors can be customized according to the different voltages,frequencies and rotation speed.

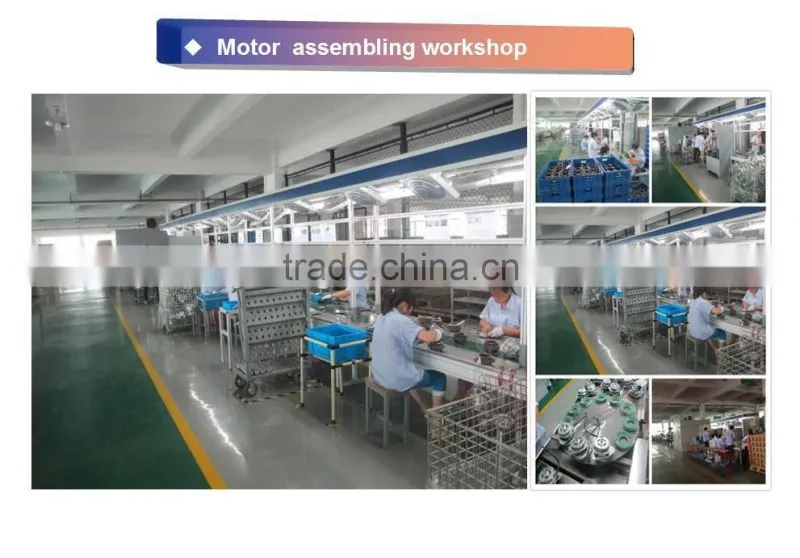

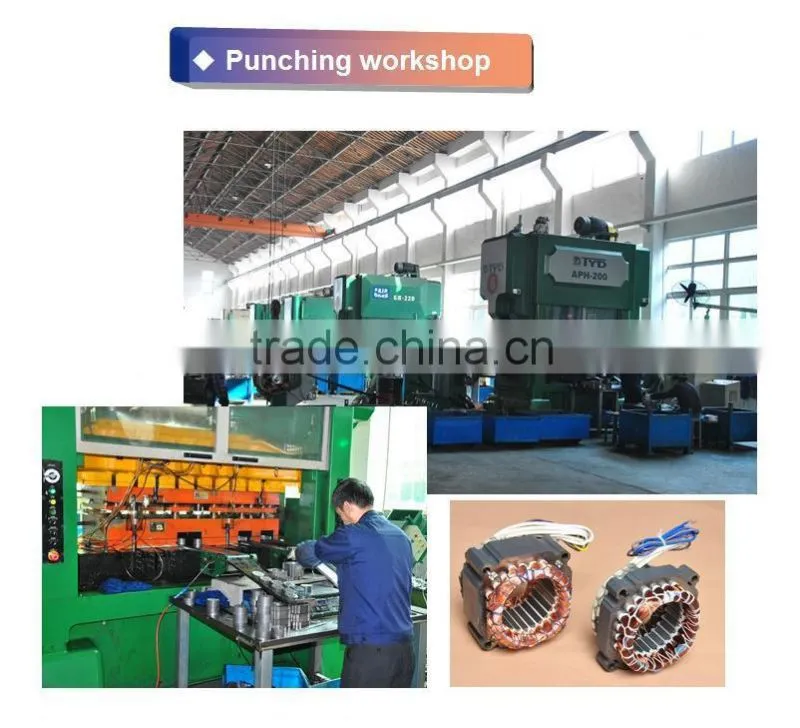

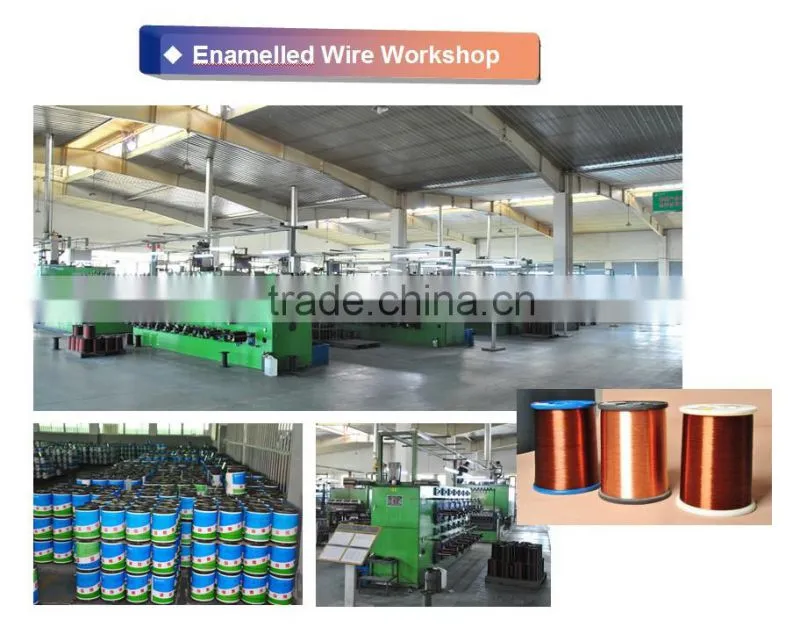

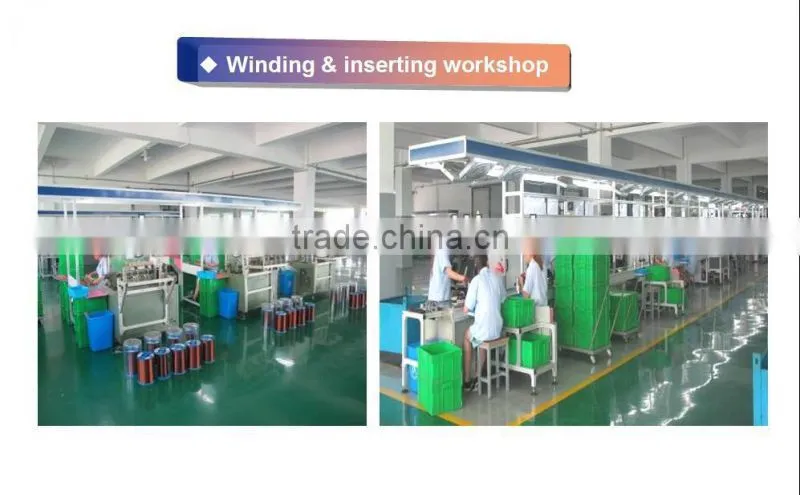

Manufacturing processing of producing motors

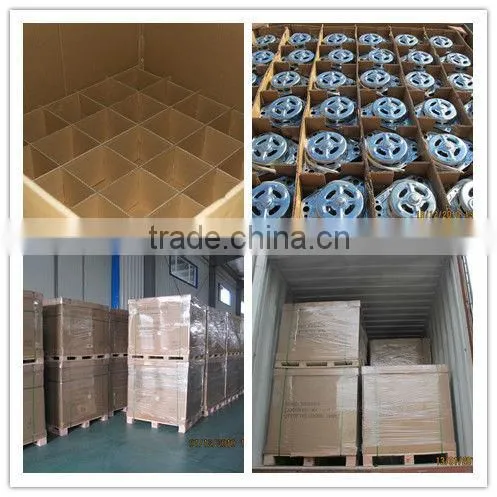

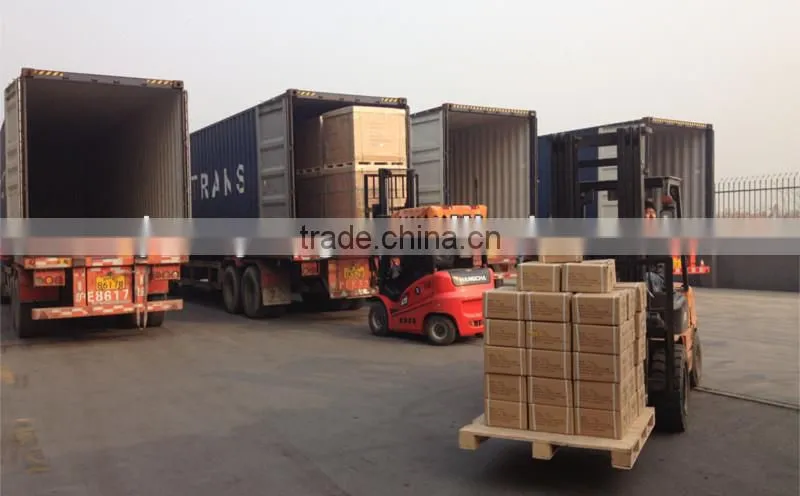

Packing details of NANYANG motor

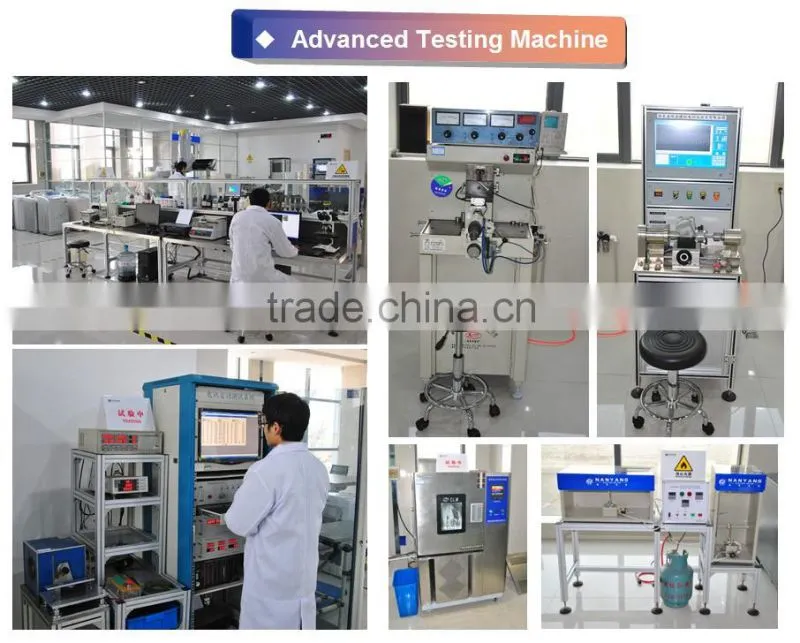

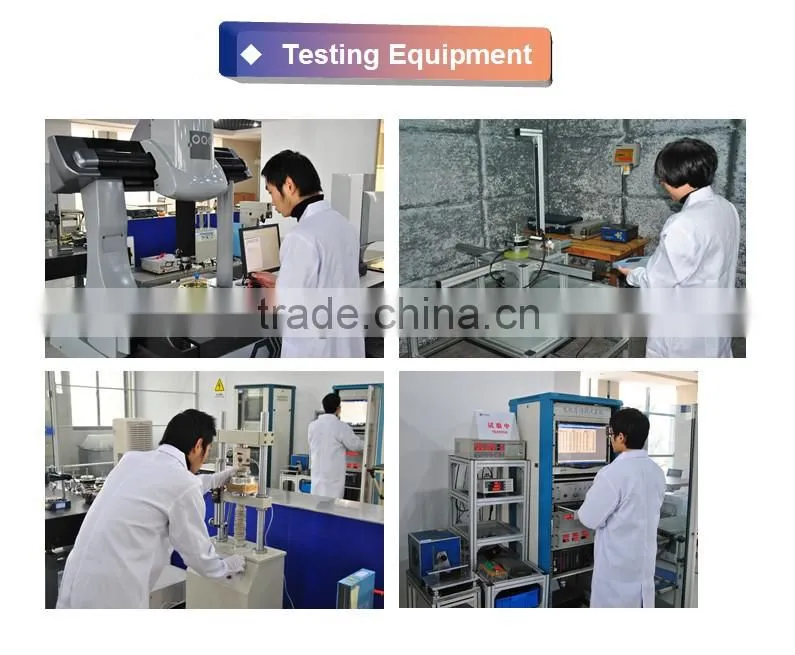

Advanced Testing Equipment





Why choose NANYANG

Service Guarantees of Keywords:

1)     Factory direct and on-time shipment,

2)     Quality can control better because most of motor parts produced by ourself,such as: enameled wire, stator assy, rotor assy, cover assy etc,

3)     The motors can be customized according to the different voltages,frequencies and rotation speed.

4)     Goods are sold with rerun/refund guarantee due to quality issue
