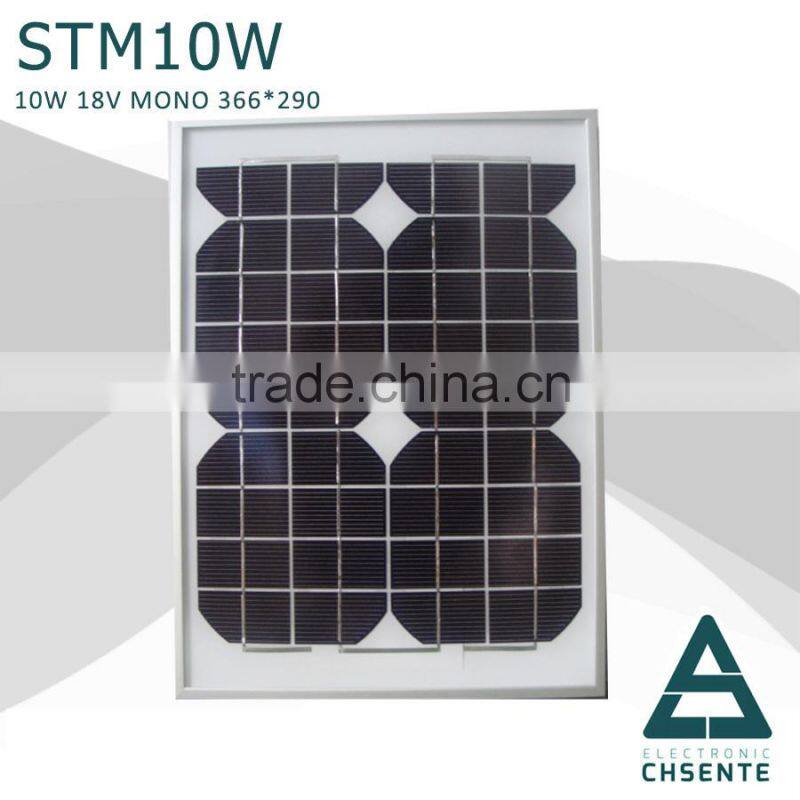

China Manufacturer Mono and Poly Price per Watt Solar Panel 10w Quality Choice
US$ 1.32 - 1.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHsente
Model Number:
STM10W
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Power Making Machine Solar Energy 20w Quality ChoiceUS$ 1.6 - 1.9MOQ: 100 Pieces -
5w Mini Solar Power Mono Solar Energy System Panel Solar KitUS$ 1.6 - 1.9MOQ: 100 Pieces
-
CE Approved 3w Monocrystalline Solar Energy Low Price Mini Solar Panel Quality ChoiceUS$ 1.9 - 2.1MOQ: 100 Pieces
-
High Efficiency 1w to 300w Solar Panel Kit With Full Certification Quality ChoiceUS$ 1.6 - 1.9MOQ: 100 Pieces
-
Top Quality 3 Watt Solar Energy Makeing Machine pv Small Solar Panel Quality ChoiceUS$ 1.9 - 2.1MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
CHsente
Model Number
STM10W
Material
Monocrystalline Silicon
Size
250*350*17mm
Number of Cells
36
Max. Power
10w

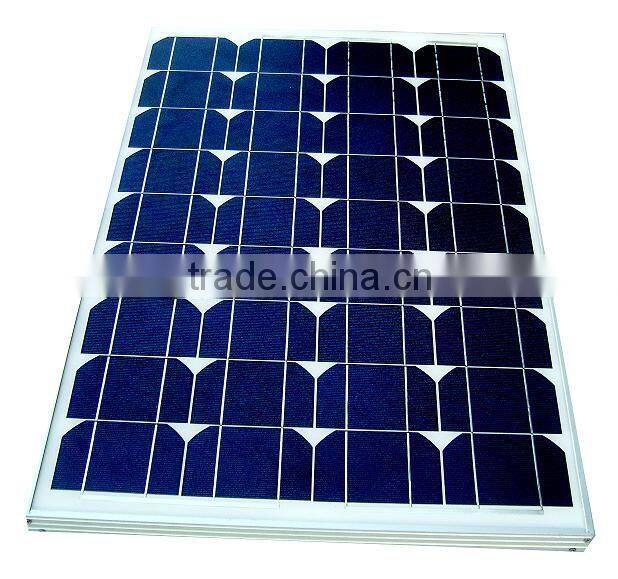

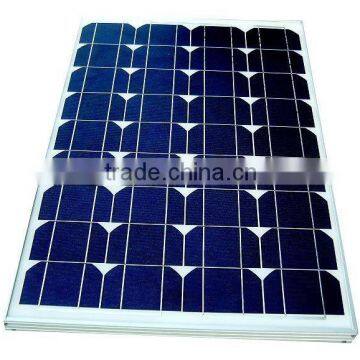

China manufacturer mono and poly price per watt solar panel 10w

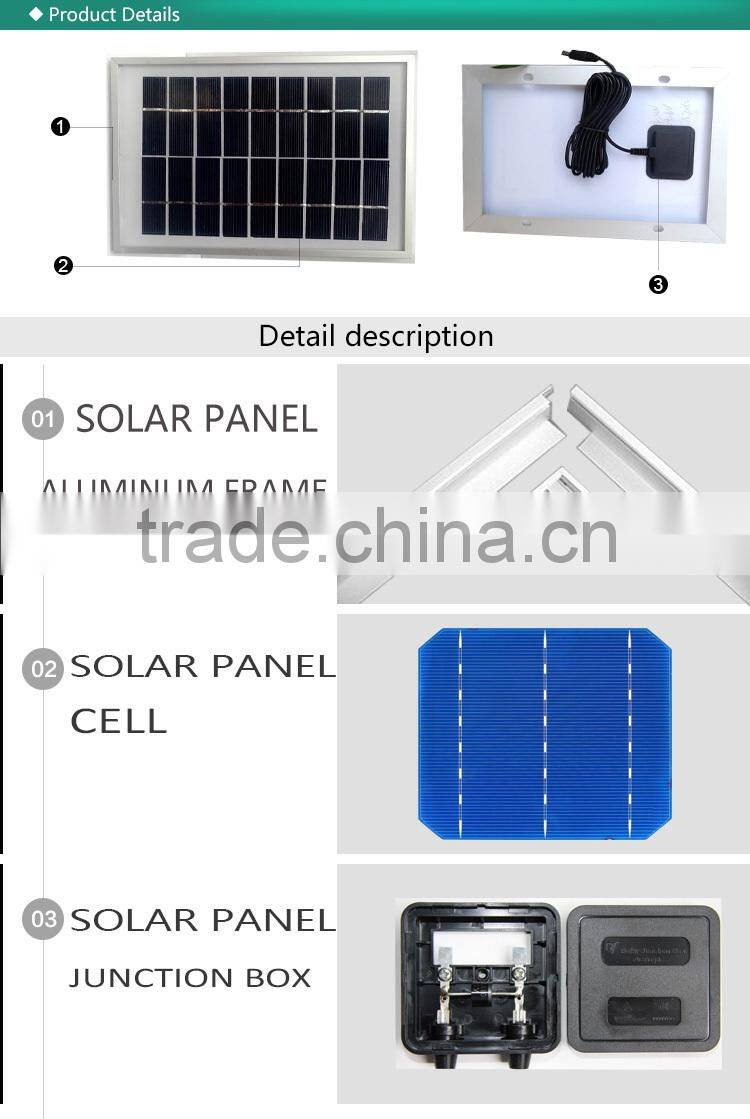

Product Description
Quality and Safety
1. Rigorous quality control meets the highest international standards.

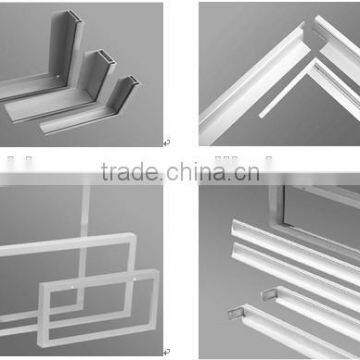

2. High-transmissivity low-iron tempered glass, strong aluminium frame.
3. Using UV-resistant silicon.

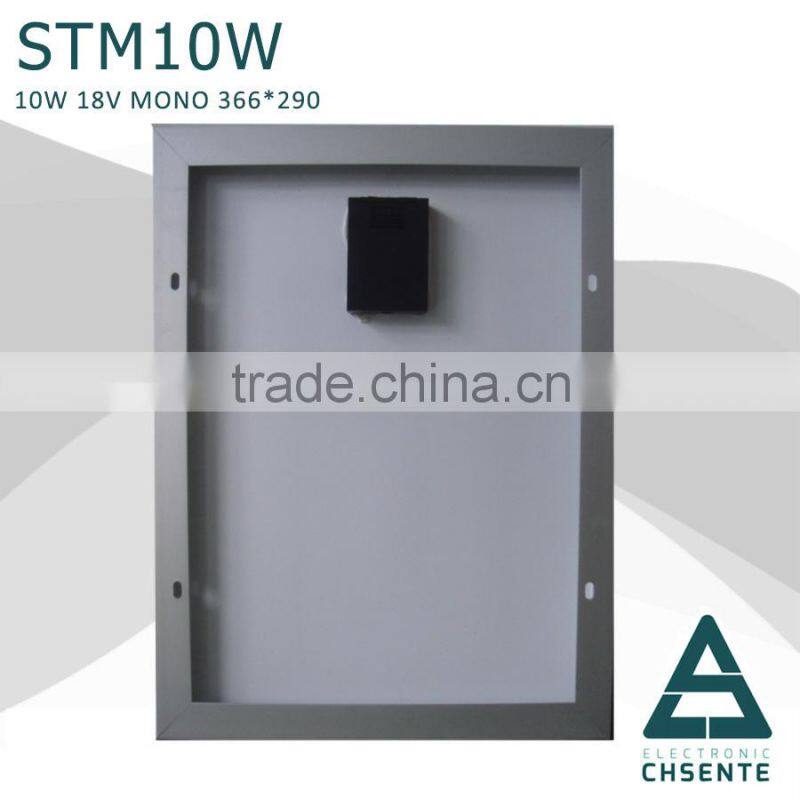

| ITEM NO | 10W 18V |
| MONO or POLY | mono |
| Maximum power (Wp) | 5W |
| Maximum power voltage (V) | 17.3V |
| Maximum power current (A) | 0.59A |
| Open circuit voltage (V) | 21.6V |
| Short circuit current (A) | 0.63A |
| Number of cells (Pcs) | 36 |
| Size of module (mm) | 250*350*17mm |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/℃ |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1) / ℃ |
| Temperature coefficients of Pm (%) | -(0.5+/-0.05)/ ℃ |
| Temperature coefficients of Im (%) | +0.1/ ℃ |
| Temperature coefficients of Vm (%) | -0.38/ ℃ |
| Temperature Range | -40℃~+85℃ |
| Tolerance Wattage (e.g. +/-5%) | +/-3% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 15 |
| Junction Box Type | GY-BOX-5C |
| Length of Cables (mm) | 900 |
| Cell Efficiency (%) | >16.44% |
| Module Efficiency (%) | >15.12% |
| Output tolerance (%) | +/-3% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25℃ |
| Warranty | 5 years product warranty and 25years 80% of power |
| FF (%) | 74% |
Packaging & Shipping
Company Information
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhejiang, China. You are warmly welcomed to visit us!
3. Q: How can I get some samples?
A: Please connect me for samples, and my phone number: +86 158 0577 2566.
4. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
