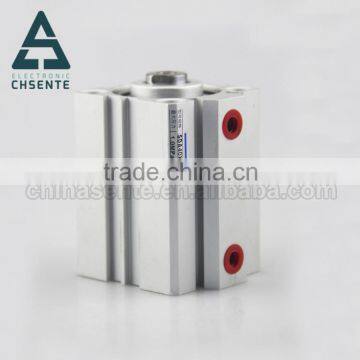

SDA Series Thin Air Cylinder Pneumatic Tool Pneumatic Cylinder Seal Kits
We are professional manufacturer of many kinds of pneumatic components and hydraulic components,the main products are as followed:
Pneumatic cylinder: Standard cylinder, Mini cylinder, Compact cylinder, Slide cylinder, Pneumatic finger cylinder, Clamp cylinder, Stop cylinder, Rotary cylinder, Rodless cylinder, Guide cylinder, With valve cylinder, Heavy cylinder, Multi-rod cylinder, with superior quality, excellent service and competitive prices.
1.High safety performance
2.Low start pressure
3.Stable operation
4.Fine tightness
5.Long service life
6.Energy conservation and environmental protection, can recycle
7.Beautiful appreance
8.Widely used in automatic devices, eg. light industry, chemical industry, textile, electron, machinery, etc.
Product Details
Product Feature
2.Riveted structure is adopted to connect the cylinder body and back cover,and pistion and piston rod to make it compact and reliable;
3.The inner diameter of the body us treated with rolling followed by the treatment of hard anodizing,forming an excellent abrasion resistance and durability;
4.The seal of piston adopts heterogeneous two-way seal structure.It had compact dimension and the function of oil reservation;
5.Compact structure can effectively save installation space;
6.There are magnetic switch slots around the cylinder body,which is convenient to install sensor witch;
7.Mounting accessories with various specification are optional.
Installation&Usage
2.Before fitting correct fittings in,make sure the thread ports and fittings are clean.Be aware of dust or fitting tag falling into the cylinder.
3.It is suggested to use the medium lubricated by 40um filter element.
4.Under the low-temperature environment,take measures to avoid frozen fluid inside system.
5.In order for the cylinder to achieve long service life,do not side-load cylinder.
6.If the fittings were remove from the cylinder for a period of time,be sure to block the thread prot with protecting cap to keep the dust away.
Specifications
Bore(mm) |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
Action type |
Double Action |
|||||||||
|
Single acting-Push type Single acting-Pull type | ||||||||||
Working Medium |
Air(To be filtered by 40um filter element) |
|||||||||
Operatinjg Pressure |
Double acting:0.1~1.0Mpa(14~145Psi) |
|||||||||
Single acting:0.2~1.0Mpa(28~145Psi) | ||||||||||
Proof Pressure |
1.5Mpa(215Psi) |
|||||||||
Temperature Range |
-20~80 |
|||||||||
Speed Range mm/s |
Double acting type:30~500 |
|||||||||
Single acting type:50~500 | ||||||||||
Stroke tolerance |
+1.0 0 |
|||||||||
Cushion type |
Bumper |
|||||||||
Joint Pipe Bore |
M5×0.8 |
G1/8" |
G1/4" |
G3/8" |
||||||
More details
Series Products
Package & Delivery
Company Information
Our Services
1. Any question from you are welcome and will be replied in 24 hours.
2. The reasonable price.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Samples will be offered to you for our future cooperation.
