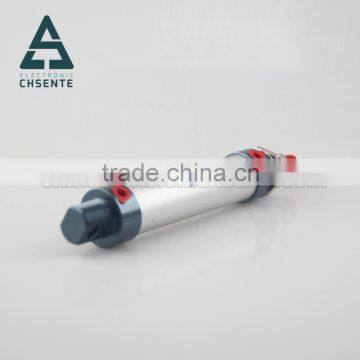

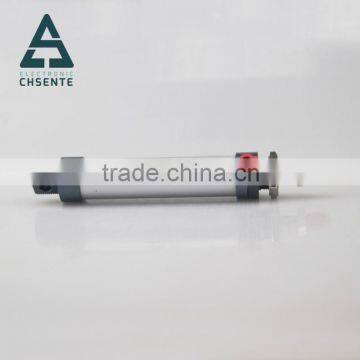

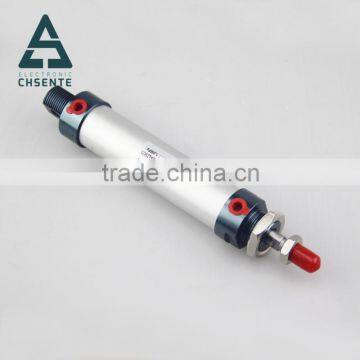

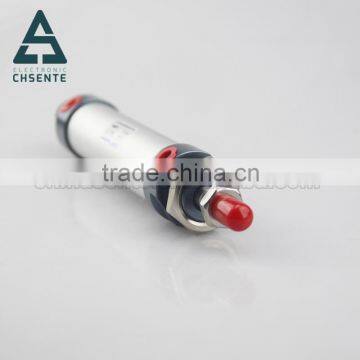

MAL Series Aluminum Alloy Mini Air Cylinder Pneumatic Piston Cylinder
We are professional manufacturer of many kinds of pneumatic components and hydraulic components,the main products are as followed:
Pneumatic cylinder: Standard cylinder, Mini cylinder, Compact cylinder, Slide cylinder, Pneumatic finger cylinder, Clamp cylinder, Stop cylinder, Rotary cylinder, Rodless cylinder, Guide cylinder, With valve cylinder, Heavy cylinder, Multi-rod cylinder, with superior quality, excellent service and competitive prices.
1.High safety performance
2.Low start pressure
3.Stable operation
4.Fine tightness
5.Long service life
6.Energy conservation and environmental protection, can recycle
7.Beautiful appreance
8.Widely used in automatic devices, eg. light industry, chemical industry, textile, electron, machinery, etc.

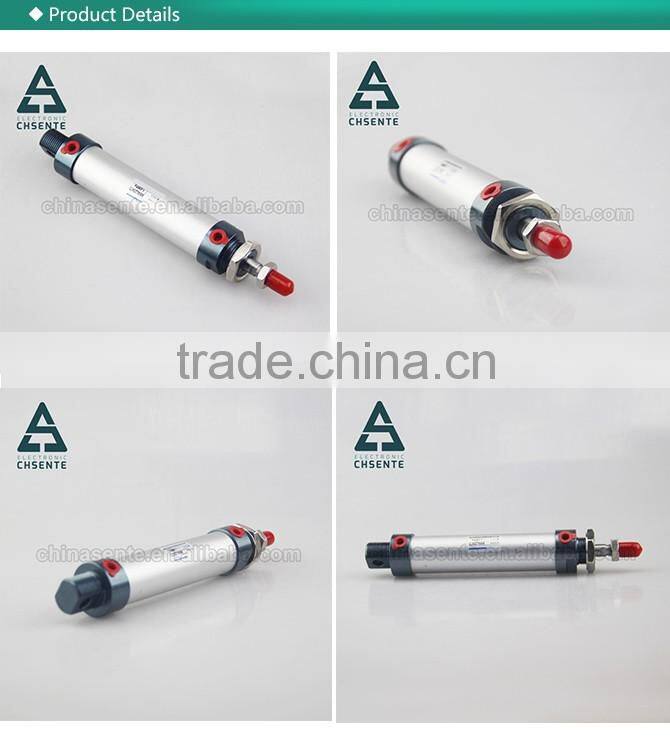

Product Details
Product Feature
1.Manufactured by our enterprise.
2.Front and back cover and cylinder tube are connected by threads.
3.Piston adopts heterogeneous two-way seal structure.It has compact size and has the function of grease reservation.
4.Front cover adopts self-lubrication bearing guide that havs good performance of lubrication and guide.
5.There are several modes of back cover,which makes the installation of cylinder more convenient.
6.There are cylinders and mounting accessories with several specifications for your choice.
Installation&Usage
1.When load changes in the work,the cylinder with abundant output capacity shall be ed.
2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the codition of high temperature or corrosion.
3.Necessary protection measure shall be taken in the environment with higher humidity,much dust or water drops,oil dust and welding dregs.
4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 40 or below.
6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7.To avoid side load,otherwise,piston rod will be bent and deformed and damage the thread at the end of the rod.Single-acting type can not be added in return;
8.If the cylinder is dismantled and stored for a long time.pls to conduct anti-rust treatment to the surface.Anti-dust caps shall be added in air inlet and outlet ports.The front and back cover can not be dismantled,which shall be especially noticed.
Specifications
Bore(mm) |
8 |
10 |
12 |
16 |
20 |
25 |
32 |
40 |
|
Action type |
Double acting,Single acting_push,Single acting_pull |
||||||||
----- |
Doulbe acting with cushion |
||||||||
Fluid |
Air(To be filtered by 40um filter element) |
||||||||
Operating pressure |
Double Acting |
0.1~1.0MPa(15~145psi)(1.0~10.0bar) |
|||||||
Single Acting |
0.2~1.0MPa(28~145psi)(2.0~10.0bar) |
||||||||
Proof pressure |
1.5Mpa(215Psi)(15bar) |
||||||||
Temperature Range |
-20~70 |
||||||||
Speed Range mm/s |
Double Acting:30~800 Single Acting:50~800 |
||||||||
Stroke tolerance |
0~150(+1.0~0);>150(+1.4~0) |
||||||||
Cushion type |
MIC Series:Variable cushion Other series:Bumper |
||||||||
Port size(1) |
M5X0.8 |
1/8" |
1/4" |
||||||
(1)G thread are available.
