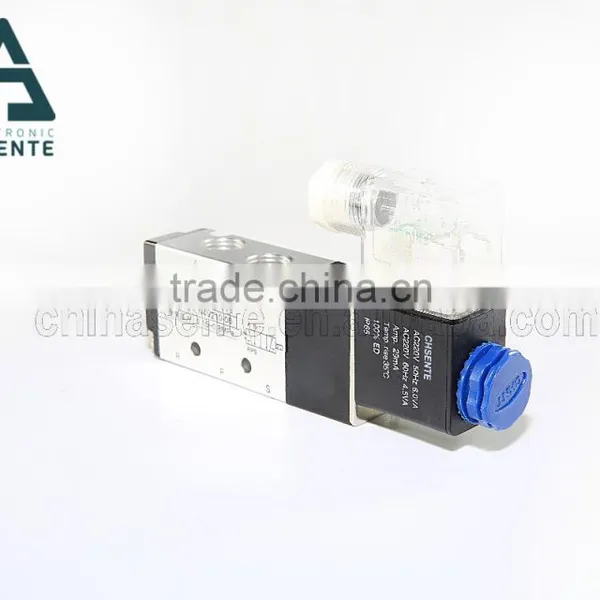

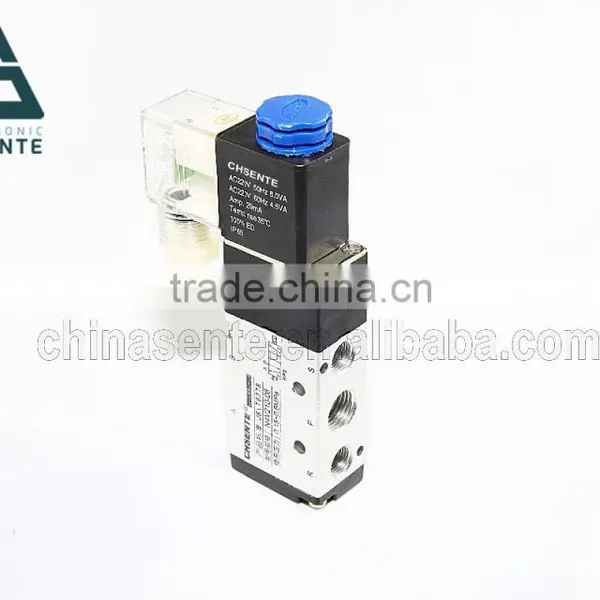

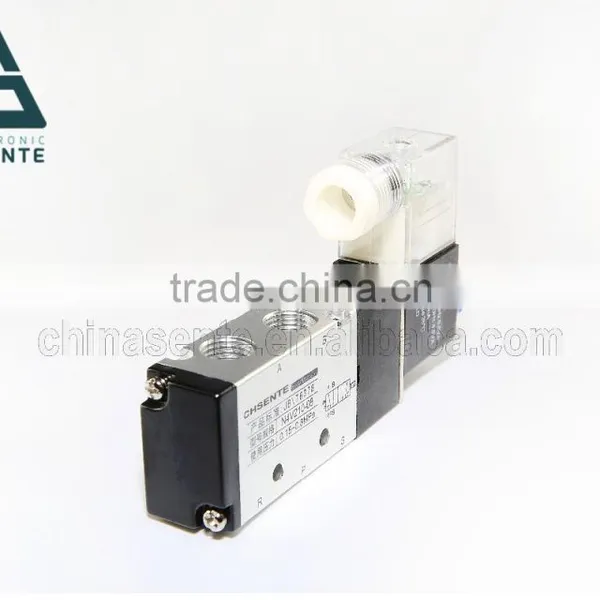

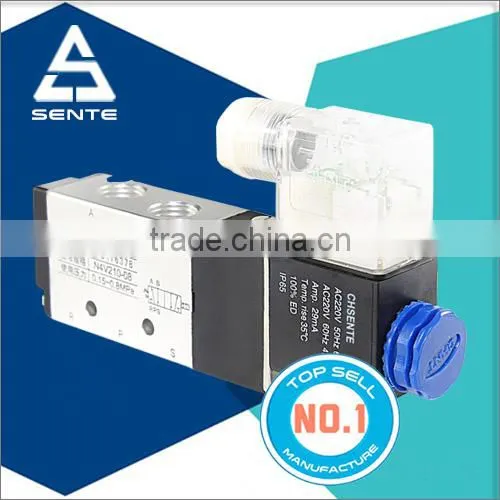

CHSENTE AirTac 4V Series Air Valve 4V210-08 Low Price Solenoid Valve
Product Feature
1.Pilot-oriented mode: internal pilot or external pilot;
2.Stucture in sliding column mode:good tightness and sensitive reaction;
3.Three position solenoid valves have three kinds of central function for your choice;
4.Double control solenoid valves have memory function;
5.Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life;
6.No need to add oil for lubrication;
7.It is available to form integrated valve group with the base to save installation space;
8.Affiliated manual devices are equipped to facilitate installation and debugging;
9.Several standard voltage grades are optional.
Installation&Usage
1.Before installing,be sure the valve hasn’t been damaged via transportation.
2.It’s suggested to use the medium lubricated by 40 um filter element.Be aware of the flow direction and port size.
3.Please notice whether the installation condition accords with technical requirements(such as “voltage”,”actuation frequency”,”working pressure”and “scope of application temperature”),then the equipment can be installed and used.
4.Notice the flow direction of air during installation,P is the air intake,A(B) is the work port and R(S) is the exhaust outlet.
5.Take measure to avoid vibration and frozen.
6.Before using the fittings and tubes make sure they are clean.When connecting to fittings,be sure the PTFE Thread Seal Tape is used correctly.
7.To keep the dust away,please use the silencer for the echaust ports.Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8.After installing,please use the manual override to test valve first.

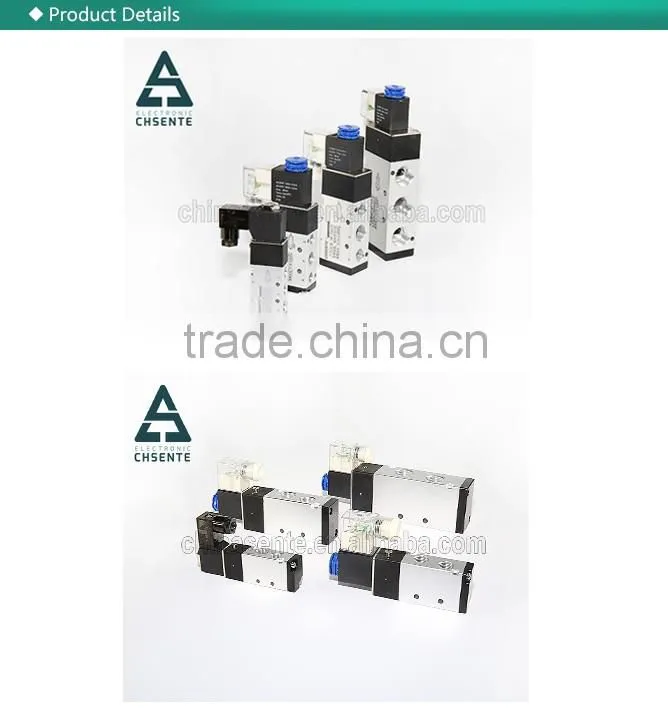

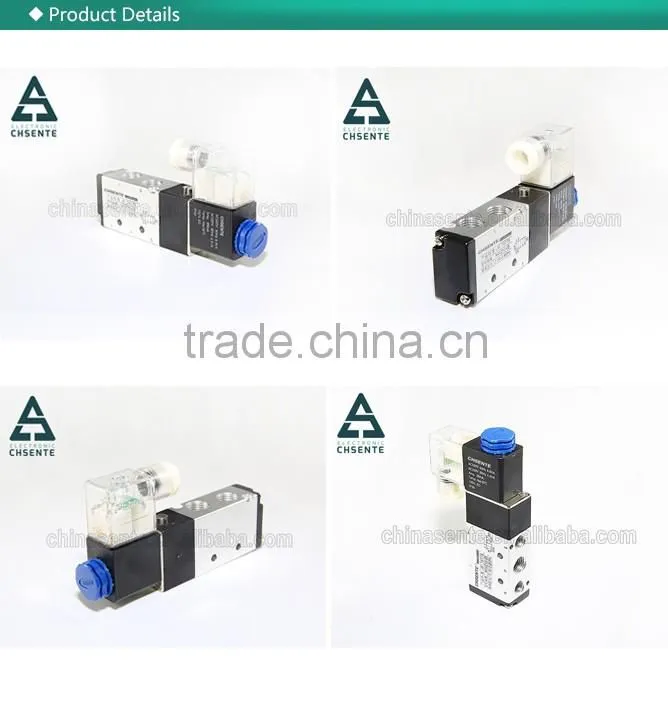

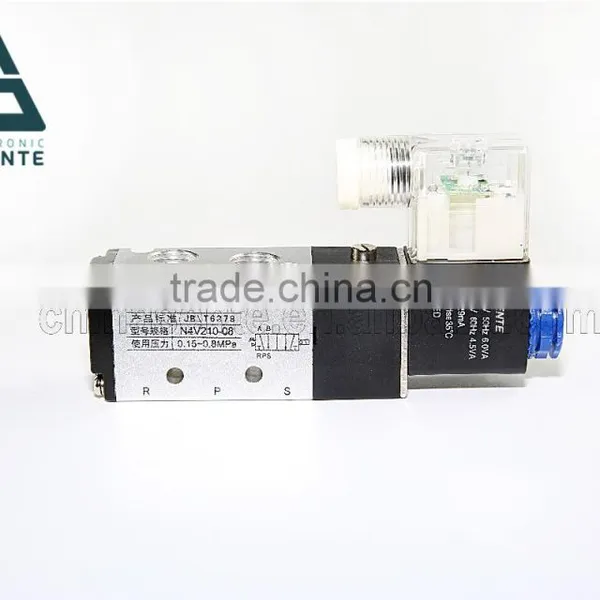

Product Details
Specifications
Model |
4V210-06 4V220-06 |
4V230C-06 4V230E-06 4V230P-06 |
4V210-08 4V220-08 |
4V230C-08 4V230E-08 4V230P-08 |
|||||
Fluid |
Air(to be filtered by 40um filter element) |
||||||||
Acting |
Internal pilot or external pilot |
||||||||
Port size (1) |
In=Out=Exhaust=1/8” |
In=Out=1/4”Exhaust=1/8” |
|||||||
Orifice size |
14.0mm² (Cv=0.78) |
12.0mm² (Cv=0.67) |
16.0mm² (Cv=0.89) |
12.0mm² (Cv=0.67) |
|||||
Valve type |
5 port 2 position |
5 port 3 position |
5 port 2 position |
5 port 3 position |
|||||
Operating pressure |
0.15~0.8MPa(21~114psi) |
||||||||
Proof pressure |
1.5Mpa(215Psi) |
||||||||
Temperature Range |
-20~70 |
||||||||
Material of body |
Aluminum alloy |
||||||||
Lubrication (2) |
Not required |
||||||||
Max.frequency (3) |
5 cycle/sec |
3 cycle/sec |
5 cycle/sec |
3 cycle/sec |
|||||
Weight |
4V210-06:220g 4V220-06:320g |
360g |
4V210-08:220g 4V220-08:320g |
360g |
|||||
(1)PT thread,NPT thread and G thread are available.
(2)Once lubricated air is used,continue with same medium to optimise valve life span.Lucricants like ISO VG32 or equivalent are recommended.
(3)The maximum actuation frequency is in the no-load state.
Coil specification
Item |
Specitification |
Standard voltage |
AC220V,AC110V,AC24V,DC24V,DC12V |
Scope of voltage |
AC:±15% DC:±10% |
Power consumption |
AC:3.5VA DC:3.0W |
Protection |
IP65(DIN40050) |
Temperature classification |
B Class |
Electrical entry |
Terminal,Grommet |
Activating time |
0.05 sec and below |
More details

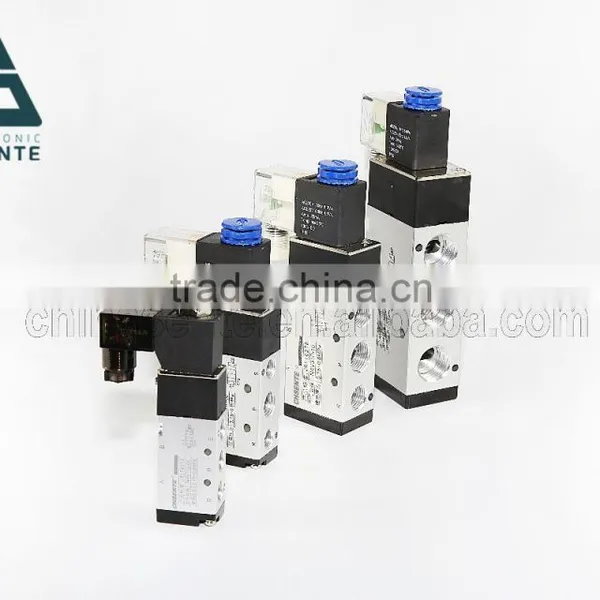

Series Products
