Small Wood Fired Steam Boiler

Small Wood Fired Steam Boiler photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Natural Circulation
Usage Industrial
Structure Other
Pressure Low Pressure
Style Horizontal
Fuel Other, Biomass Materials
Place of Origin Jiangsu, China
Brand Name WILFORD
Model Number DZL
Output Steam
Weight 14.4-21.8t, 14.4-21.8t
Certification ASME ISO SGS TUV
After-sales Service Provided Engineers available to service machinery overseas

small wood fired steam boiler

        1.Long life time:sweeping function after preset can extend its service life;

        2.Environment protecting:the unique design can reduce NOx emissions;

        3.Easy for maintenance :smoke pipes box uses multi-level sealing approaches;

        4.High efficiency:horizontal structure has area ample heated

        5.Quality steam:steam evaporation surface is arge;

        6.Full automatic:advanced touch screen controller,digital prosecution;

        7.Safe and reliable:with a variety of alarm interlock devices

Some fuels

 small wood fired steam boiler

biomass steam boiler series technical Parameter



Item         Model DZL-1-0.7-AII DZL1-1.0-AII DZL2-1.0-AII DZL2-1.25-AII DZL2-1.6-AII
Unit
Rated steam evaporation t/h 1  1 2 2 2
Rated steam pressure Mpa 0.7 1 1 1.25 1.6
Rate steam temperature  'C 170 184 184 193 204
Water supply temperature  'C 20 20 20 20 20
Heating area main body emissions   614 6.14 6.8 16.8 16.8
convection m2 214 21.4 44.5 44.5 44.5
economizer         28.2 28.2 28.2

chain grate effctive area m2 2.4 2.4 3.42 3.42 3.42
maximum transportation size mm 4747*2131*2866 4745*2131*2866 6051*2482*3051 6051*2481*3052 6052*2502*3151
maximum installation size mm 4745*2555*3065 4746*2555*3066 6051*3622*4234 6051*3622*4236 6051*3841*4236
boiler room size m 10*9*6 10*9*6 12*10*7 12*10*7 12*10*7
maximum transportation weight 14.4 14.5 19.7 19.7 21.8











Company Information

small wood fired steam boiler



 And Customers

small wood fired steam boiler





Packaging & Shipping

small wood fired steam boiler



Certifications

small wood fired steam boiler

 Other types of our factory(click on the picture to see details)

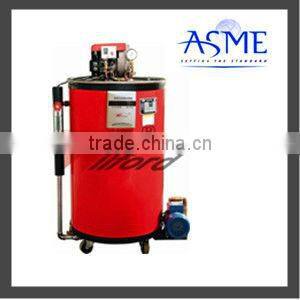

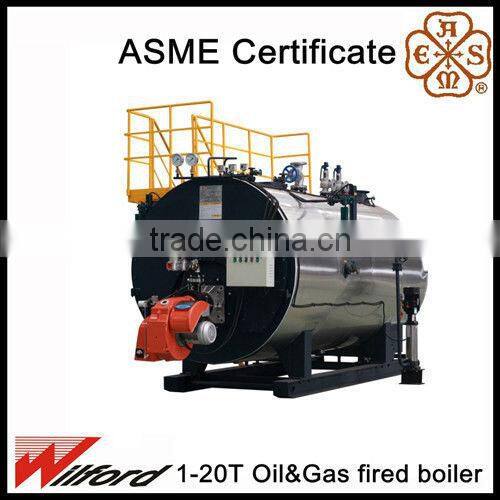

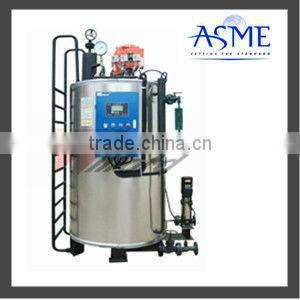

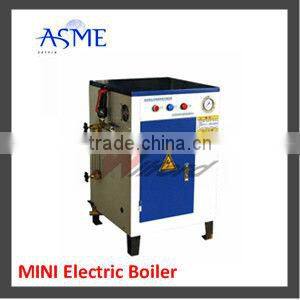

       oil/gas steam generator                oil/gas steam boiler              Electric steam generator      Horizontal oil/gas steam boiler

small wood fired steam boilersmall wood fired steam boilersmall wood fired steam boilersmall wood fired steam boiler
