1-20T/h WNS Series Heavy Oil Fired Steam Boiler

1-20T/h WNS Series Heavy Oil Fired Steam Boiler thumbnail-1
1-20T/h WNS Series Heavy Oil Fired Steam Boiler thumbnail-2
1-20T/h WNS Series Heavy Oil Fired Steam Boiler thumbnail-3
1-20T/h WNS Series Heavy Oil Fired Steam Boiler thumbnail-4
1-20T/h WNS Series Heavy Oil Fired Steam Boiler thumbnail-5
1-20T/h WNS Series Heavy Oil Fired Steam Boiler thumbnail-6
1-20T/h WNS Series Heavy Oil Fired Steam Boiler photo-1

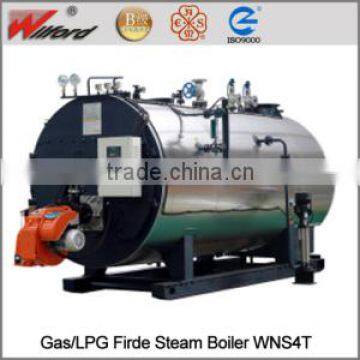

1-20T/h WNS Series Heavy Oil Fired Steam Boiler photo-2
1-20T/h WNS Series Heavy Oil Fired Steam Boiler photo-3
1-20T/h WNS Series Heavy Oil Fired Steam Boiler photo-4
1-20T/h WNS Series Heavy Oil Fired Steam Boiler photo-5

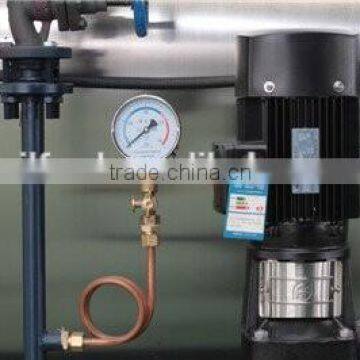

1-20T/h WNS Series Heavy Oil Fired Steam Boiler photo-6
US$ 12,000 - 2,500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Contact Supplier Request Quote Chat Now
Zhangjiagang Wilford Thermal Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port.China .hfo boiler
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Natural Circulation
Usage Industrial
Structure Fire Tube
Pressure High Pressure
Style Horizontal
Fuel Other, diesel oil or HFO or Gas, HFO ,diesel oil or LPG ,NG ,pipeline gas
Place of Origin Jiangsu, China
Brand Name WILFORD
Model Number WNS
Output Steam
Dimension(L*W*H) Depend
Weight Models, 3.3-49.5T
Certification ASME ,CE ,ISO
After-sales Service Provided Engineers available to service machinery overseas

Product Description

  Thermal Heavy Oil Fired Steam Boiler --Wilford

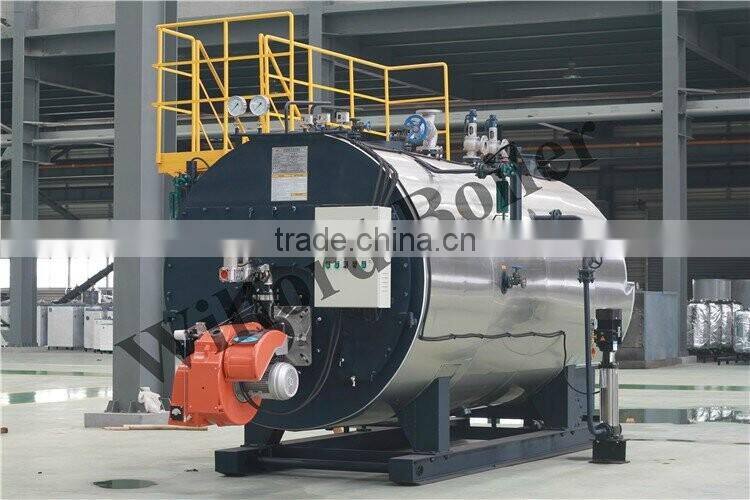

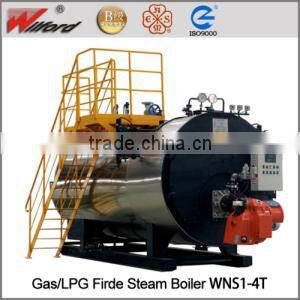

1-20T/h WNS series heavy oil fired steam boiler1-20T/h WNS series heavy oil fired steam boiler

The structure of heavy oil boiler --horizontal model





  • Our products steam boiler adopt the most international mature three return all wet back structure, safe and reliable.
  • Using Waveform furnace; Both enhanced heat transfer effectiveness and promote fuel in the combustion chamber.
  • The heating surface layout is symmetrical, structural strength is relaible , the water cycle system is reasonable.
  • Up boiler water capacity is large.Steam room and steam quality is good.
  • The distance between two boilers are long, pipe diameter is large, ensuring good natural cycle.
  • The unique setting of gas furnace and the heat design to gurantee the boiler heat losses are most minimal.



1-20T/h WNS series heavy oil fired steam boiler1-20T/h WNS series heavy oil fired steam boiler



The Main superiorities of the heavy oil  boiler





1. The large steam room and high quality steam.



2. The horizontal structure has adequate heating, heat transfer is full ,load changes operating is stable in boiler, high combustion efficiency.



3. Can greatly promote the boiler's efficiency, save fuel and lower the operation cost.



4. Automatically operation, PLC is control.



5.The unique design of the combustion chamber,reducing the size of the boiler, reducing NOx emissions.



6. After preseting, the purge functions to improve the working conditions of combustion and longevity.







Technical Parameter for heavy oil steam boiler







      Type WNS0.5-0.7-Y.Q WNS1-1.0-Y.Q WNS2-1.0-Y.Q WNS3-1.0-Y.Q WNS4-1.25-Y.Q WNS6-1.25-Y.Q WNS8-1.25-Y.Q WNS10-1.25-Y.Q WNS12-1.25-Y.Q WNS15-1.25-Y.Q WNS20-1.25-Y.Q
    Project Unit
Rated evaporation t/h 0.5 1 2 3 4 6 8 10 12 15 20
Rated working pressure MPa 0.7 1.0 1.0 1.0 1.25 1.25 1.25 1.25 1.25 1.25 1.25
Staturated steam temperature   170 184 184 184 193 193 193 193 193 193 193
                                       Fuel consumption Light diesel oil kg/h 32.5 65 130 195 260 390 520 650 780 975 1300
Natural gas Nm3/h 35 70 140 210 280 420 560 700 840 1050 1400
Liquefied gas Nm3/h 15 30 60 90 120 180 240 300 360 450 600
Pipeline gas Nm3/h 85 170 340 510 680 1020 1360 1700 2040 2550 3400
Infall caliber DN 25 25 40 40 50 50 65 65 65 65 80
Main valve caliber DN 40 65 80 80 100 125 150 150 200 200 250
Safty valve caliber DN 40 50 40×2 40×2 50×2 40/80 40/80 50/80 50/80 80/80 80/80
Sewage valve caliber DN 40 40 50 50 50 65 65 65 65 65 65
Overall size Length mm 3500 3900 4300 4500 5000 7730 8430 8900 9200 9800 12500
Width mm 2000 2500 2700 2850 3000 3490 3690 3890 4120 4500 4750
Hight mm 2150 2300 2500 2980 3200 3560 3800 4250 4430 4800 5120
Weight kg 3300 4600 7100 9200 11000 19200 21600 24500 30100 36500 49500

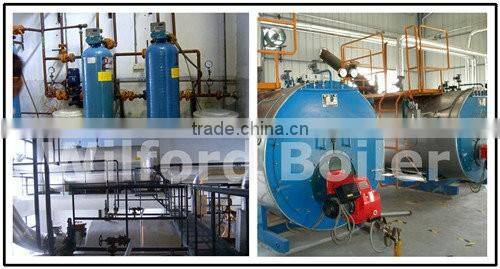

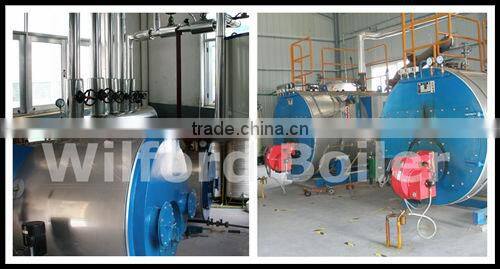

And the project case overseas :



1-20T/h WNS series heavy oil fired steam boiler1-20T/h WNS series heavy oil fired steam boiler1-20T/h WNS series heavy oil fired steam boiler1-20T/h WNS series heavy oil fired steam boiler











company information

Established : 1998

Name: Zhangjiagang  Wilford thermal

Wilford is PUBLIC COMPANY ,with stock code :831561

Local:  Zhangjiagang Economic Development Zone

Main product: Oil Gas Diesel Electric Steam Boiler and Hot Water Boiler

Certificates:  ASME,TUV,CE ,SGS,B-class boiler manufacturer

Welcome to visit our factory!







Contact information

Contact person: Sonja

Skype:sonjawilford

Mob: 0086 17701567985

Wechat:(86)17701567985

Whatsapp:(86)17701567985







After-Sales Service

1.1-year warranty with full life after-sale services

2.Powerful technical support and services

4.Fast respond within 10 minutes on line

5.Whole life factory cost spare parts .
