304&316 1x19 Stainless Steel Wire Rope
| Type | 1x19 Stainless Steel Wire Rope |
| Material | Stainless Steel |
| Grade | 304,316 |
| Standard | AISI,GB,ASTM |
| Diameter | 0.5mm-50mm |

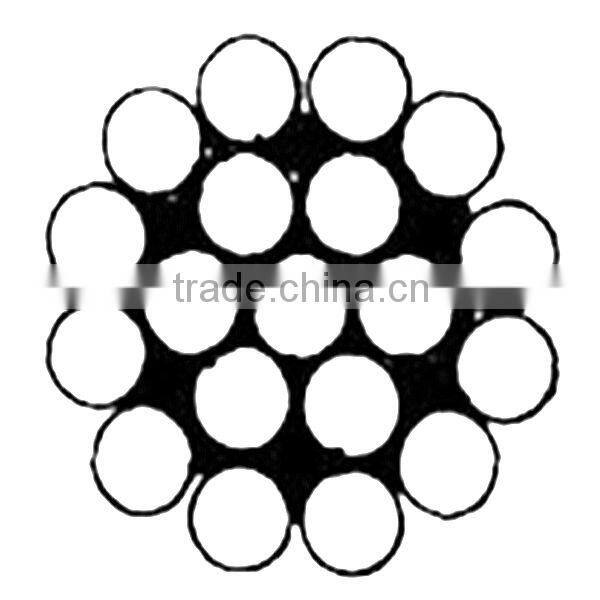

| Construction | 1x19 |
| Core | steel |
| Length | 200m/reel,305m/reel,500m/reel,1000m/reel,1500m/reel,Any size,According to customers' requirement |
| Secondary or not | 100% new,non-secondary |
| Packing | Wrapped in plastic reel/coil/spool then put on pallets or in wooden/carton box or according to customers' requirement |
| Payment Terms | T/T or L/C etc |
| Loading Port | Shanghai China |
| Delivery Term | EXW,FOB,CFR,CIF |
| Quality Assurance | Mill Test Certificate is supplied with shipment |
| MOQ | 1 ton |
| Delivery Time | Normally within 10 days after receiving deposit or according to customers quantity |
| Certification | ISO |
| Technique | Hot/Cold Rolled |
| Twist Dirction | RHOL,RHLL.LHOL.LHLL |
| Condition | Soft wire,semi-soft wire,hard wire |
| Nominal Tensile Strength(Mpa) | 1470,1570,1670,1770,1870Mpa |
chemical component of stainless steel wire
Main products: Stainless steel wire rope, galvanized steel wire rope,PVC,PE,Nylon coated steel ripe,Stainless steel wire,spring wire,piano wire
Established in 1997, located in Dainan Town, which is the biggest manufacturing base of stainless steel materials and products in China, Jiangsu Province.Annual output is more than 5000 tons, consisting of stainless steel wires, galvanized steel wires, rigging and so on. We always follow the principle of "the supremacy of quality". All the production activities, from raw material smelting, wire drawing, heat treatment and rope twisting to physical and chemical performance testing, are under strict and scientific control according to ISO9001:2008 Quality Management System.
Our company will actively cooperate with domestic and overseas customers and partners with the first-class quality and service to make great achievements
1. Can samples be sent free?
For quality reference, we can supply 1-2 samples for free. But the freight will be collected.
2.Are your products of good quality? How can I trust you?
Yes. We are a professional manufacturer of steel wire rope in China, having 20 years experience of producing cables and more than 10 years export stainless steel wire rope,wire. We have always been cooperating with all domestic petroleum and petrochemical companies. And our products have win good reputations. If this is your first time to contact us, please trust us, we’ll not let you down.
3.Can I place an order as appointed type or technical parameter of well logging cable?
Yes, this is achievable.
4.What is your payment terms?
TT deposit 50% upon order confirmation, then balance against the copy of B/L Or L/C at sight.
How to order:
In ordering steel wire rope, you are requested to give us complete information as specified below:
1:Standard:AISI,ASTM,DIN,EN,GB,JIS etc
2.Grade: 201,202,301,302,303,304,304L,316,316L,430,420,310S etc .
3.Diameter: Diameter of the rope in millimeter or inches
4.Construction: 1x7,1x19,7x7,6x7,6x36 etc.
5.Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
6. Lay: Right regular lay, left regular lay, right lang lay, left lang lay.
7. T/S: 1470Mpa,1570Mpa etc.
8. Min Breaking Load: Minimum or calculated breaking load in tones or pounds.
9. Lubrication: Whether lubrication is desired or not, and required lubricant.
10. Length: Length of wire rope.
11. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.
12. Quantity: By number of coils or reels, by length or weight.
Learn More About Wire Rope
Incredibly durable, wire rope is ideal for outdoor environments because its strength and length remain constant when wet or dry. There are many different sizes, configurations, and materials that form wire rope. Our category includes a variety of 304 stainless steel wire rope, galvanized wire rope, and bright wire rope in configurations from the 6x19 and 6x37 classes.
We also carry steel cable that’s also known as cable railing or aircraft cable. It’s a wire rope but with a smaller diameter and end uses that are lighter-duty than regular wire rope.

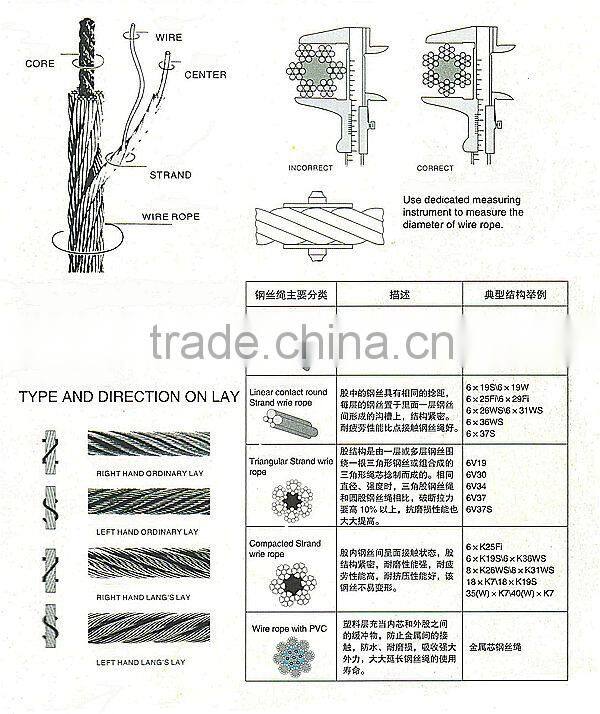

Wire rope is generally composed of wires, strands and a core formed in a helix (spiral) pattern. Steel wires are precisely formed in a helix geometric pattern to form a strand, which is called "stranding." Strands are then laid around the core to form a wire rope, which is called "closing." Steel cable wire ropes vary by:
- Diameter of the rope: To properly measure the diameter of steel wire ropes, measure the rope at its widest point. This is an industry standard with wire cable manufacturers and steel cable suppliers.
- Grade of Steel- IPS, EIPS, EEIPS: IPS is the abbreviation for Improved Plowed Steel. EIPS is Extra Improved Plowed Steel and has roughly 10% more strength than IPS. EEIPS is Extra Extra Improved Plowed Steel and is approximately 10% stronger than the EIPS. We carry a great selection of IPS and EIPS wire ropes.
- Direction of stranding and closing: Right hand and left hand designates which way the strands wrap around the core of the steel rope. Regular lay and Lang lay specify which way the wires are formed in the helix pattern. Regular lay means the wires are rotated opposite the direction of the strands around the core. Lang lay means the wires are twisted in the same direction as the strands are wrapped around the wire rope core. Our wire rope lay is right hand regular lay, with strands wrapped around the core to the right, and the wires making up the strand turned and rotated to the left.
- Wire Finish- Bright Wire, Galvanized Wire, Type 304 Stainless Steel: Most wire ropes have a bright, self-colored finish hence the name. Wire ropes generally have a coating of lubricant to reduce friction and protect from corrosion. However, there are wire ropes that are galvanized, 304 and 316 stainless steel, or coated in vinyl and other plastics. These are three of the most common finishes offered by wire rope manufacturers.
- Material of the Core: Fiber Core (FC) or Independent Wire Rope Core (IWRC) - Fiber cores are made of vegetable (sisal, etc.) or synthetic (polypropylene, etc.) fibers. IWRC offer more support to the outer strands, and have a higher resistance to crushing. IWRC also offer more resistance to heat, reduces the amount of stretch, and increases the strength of the rope.
- Strands: Another variable in wire rope is how many strands make up the rope and how many wires make up one strand. For instance, a 6x26 wire rope has 6 strands around a core with 26 wires making up each strand. The 2 main classes of wire rope that US Cargo Control carries are 6x19 and 6x37. In the 6x19 Class, the wires per strand can vary from 19 to 26. In the 6x37 Class, the wires per strand can vary from 27 to 49. The 6x19 class is the most common class and offers higher resistance to abrasion but the 6x37 class offers a higher flexibility.
Although wire rope is extremely strong, it can become damaged with improper use, and becomes unsafe. It’s important to inspect your wire rope for broken wire, corrosion, overuse wear, and kinks.
The size, finish and braided wire rope construction can be important factors depending on the application. If you have questions about any of our wire rope prices, quantities, call us .
