High Quality Industrial Water Proof Plastic Distribution Box Most Popular
- 10000 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | CZ | Model Number: | M059 |
Product Description

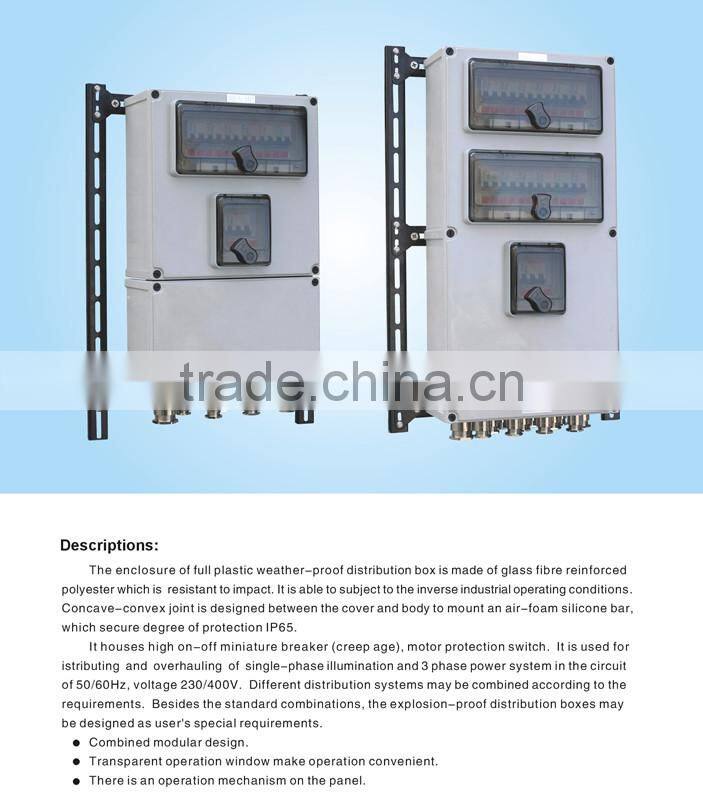

Description:

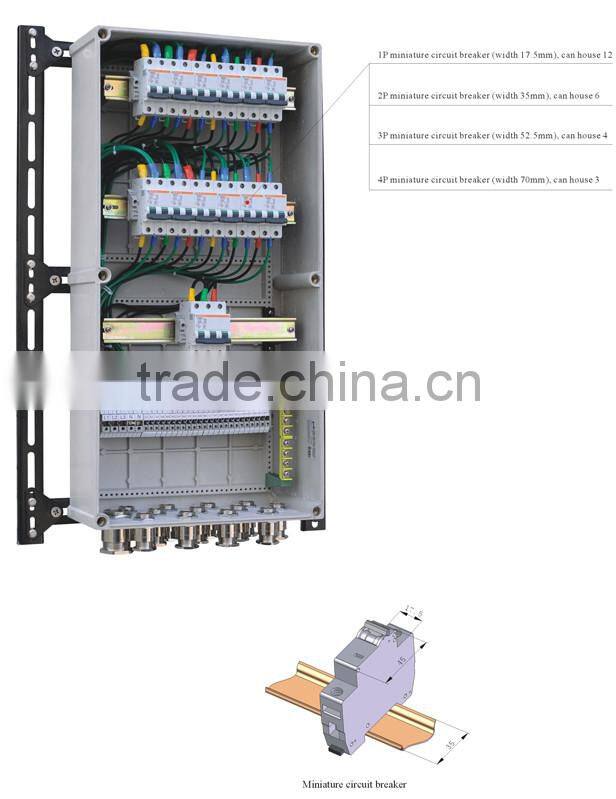

Diagram:
Main
Main Technical Data:
Corrosion-proof mark | WF2 |
Degree of protection | IP66 |
Ambient temperature use | -40℃ ≤Ta ≤55℃ |
Material of enclosure | GRP |
Illumination power distribution boxes:
Built-in component | C65 Miniature circuit breaker |
Rated voltage | 230V; 50/60Hz |
Rated current | 0.5-63A |
Rated on-off capacity | 6kA, 10kA |
Trip character | C, D characteristic curve |
With electrical leakage protection circuit breakers:
Rated current | 6-40A |
Rated remained action current | 30, 300mA |
Numbers of pole | 1P, 2P, 3P, 4P, 1P+N, 3P+N |
Electromagnetic starting distribution boxes:
Built-in component | LC1 AC contractor, LR2 thermal overload relay C65/EZD moulded plastic circuit breaker |
Rated voltage | 380/400V; 50/60Hz |
Main switch rated voltage | 40-630A |
Branch circuit rated voltage | 1-400A |
Power overhaul distribution boxes:
Built-in component | EZD moulded plastic circuit breaker |
Rated voltage | 380/400V; 50/60Hz |
Main switch rated voltage | 100-630A |
Branch circuit rated voltage | 40-100A |

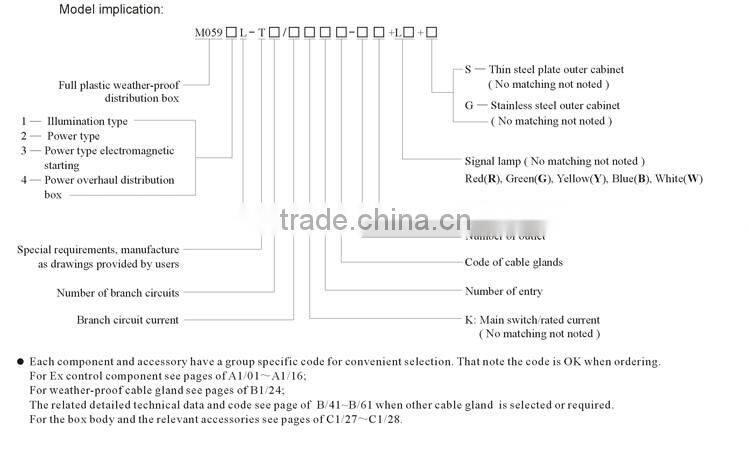

Order Specification:

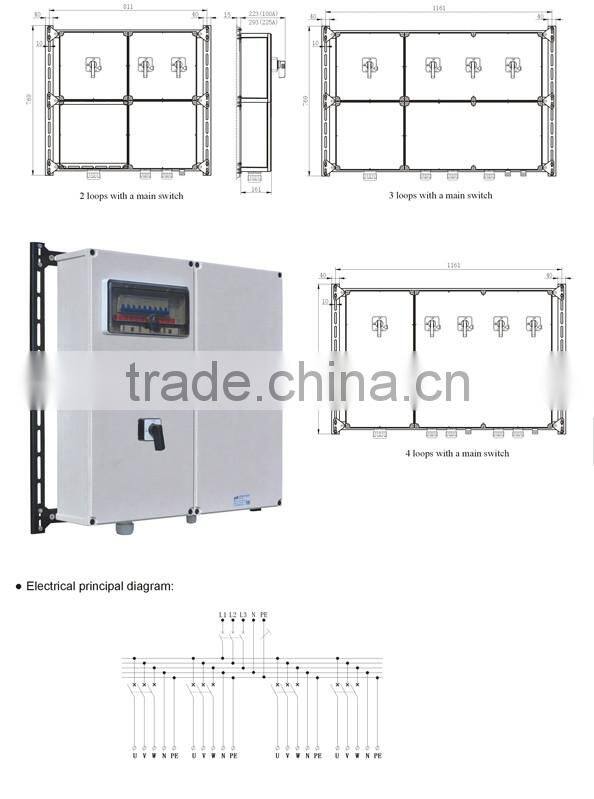

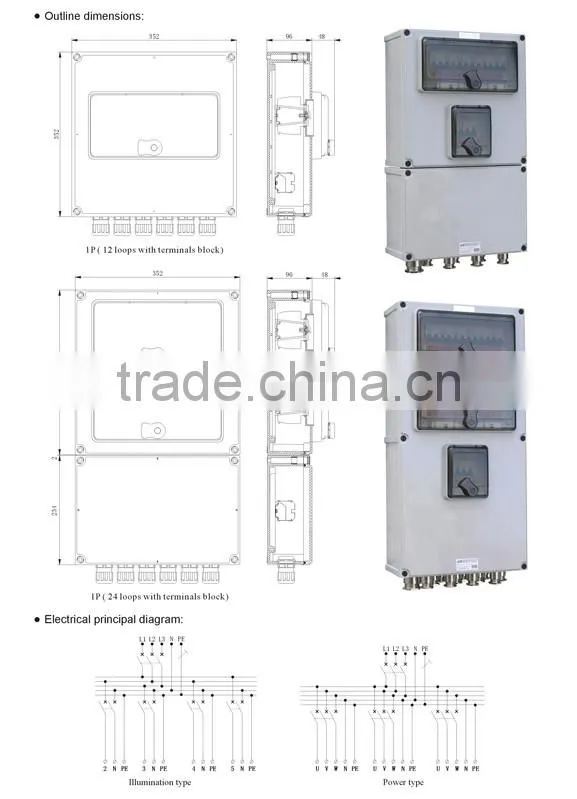

M0591, M0592 Outline dimension and electrical principal diagram:

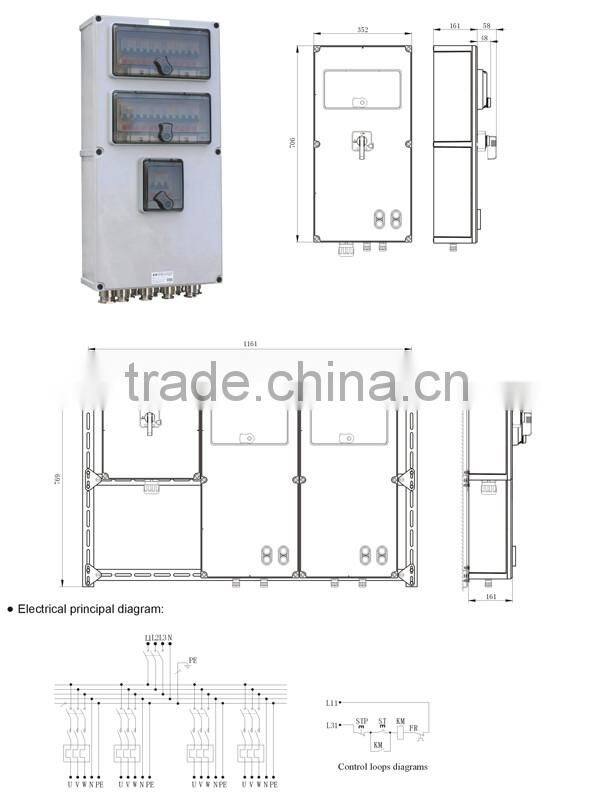

M0593 Outline dimension and electrical principal diagram:
M0594 Outline dimension and electrical principal diagram:
Company Information:

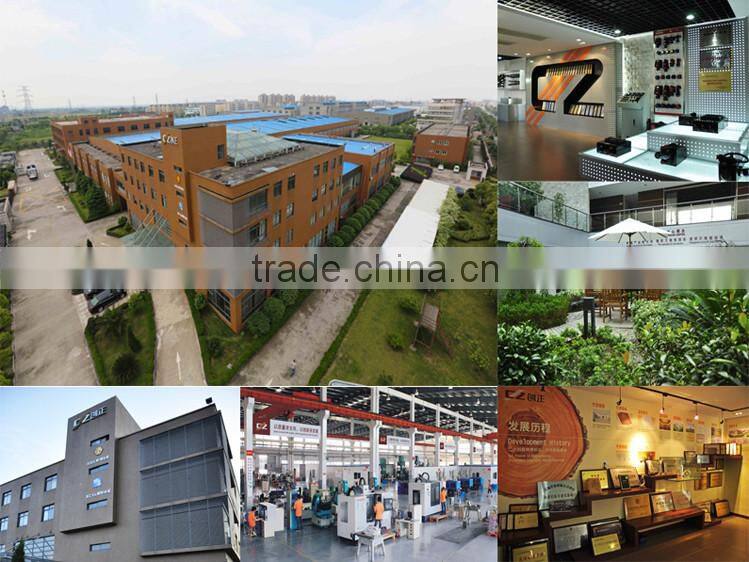

Factory:
Contact Us
- CZ Explosion-Proof Electric Appliances Co., Ltd.
- Contact nameLeo Ge
- Phone86-0573-83883599
- AddressNo.1 Qixing Road, Qixing Town Jiaxing,Zhejiang
