Product Introduction
This series of A-frame draw bar trailer is mainly used in ports and tunnels, on roads and bridges, and at interchange stations and airlines. One truck tractor can haul 2 to 3 full Thank you for your interest in our dolly trailer. With more than 200 workers who have over a decade of first-hand experience in trailer industry, we pride ourselves on the design and manufacture of your desired dolly trailers by using advanced production equipment. Simply tell us the specifications for your trailer and let us take care of the rest.
By its nature, the dolly trailer is a full trailer that is specifically intended for use in the multimodal transport system, where it is employed to carry various containers and other cargos. High stability and mechanical strength allow the trailer to withstand a long time of use.
trailers at the same time. During transport interchange, the tractor unit can be exchanged quickly and the load delivered to the destination without delay, thus saving interchange time and cost. In addition, drivers do not have to take the goods out of the cargo and get them another package.

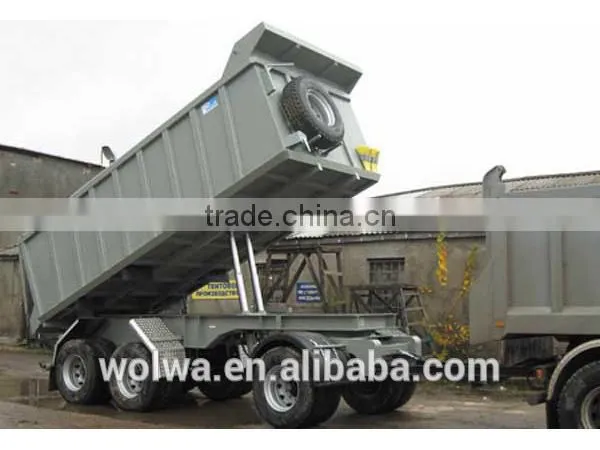

Upon your request, we can add removable side rails and posts to the trailer. Rear dump or side dump design is also available.
Specification
Tare Weight (Dolly Trailer) |
About 5.6-8T |
Dimension |
12450mm × 2490mm× 1575mm (Size can be tailored to suit individual needs.) |
Loading Capacity (T) |
≤ 45 T |
Axle |
13 T/16T, FUWA /BPW /Huajing Brand |
Rim |
9.00-22.5 9.75-22.5 |
Tire |
12.00R22.5/ 315 80R22.5 |
Suspension |
Mechanical suspension (German or American type)Or Air suspension (Chinese or BPW brand ) |
Spring Leaf |
90(W)mm×13(Thickness)mm×10layers or 100mm×12mm×12layers |
King Pin |
JOST brand 2.0 or 3.5inch (bolted or welded type) (Optional)or use turntable (also known as the Fifth Wheel) (Diameter:1.1m) |
Draw Bar |
4×4 or 4×6mm square tube (length: 1.4m ) |
Tractor Hook |
DN50 |
Landing Gear (support leg) |
This dolly trailer does not need landing gear. |
Main Beam |
Height: 500mm Upper plate: 14mm Middle plate: 8mm Bottom plate: 16mm Material: Q345B steel |
Side Beam |
16mm or 18mm channel steel (Material:Q235steel ). |
Bottom Platform |
3mm-thick checkered plate |
Brake Chamber |
WABCO RE 6 relay valve; T30/30+T30 spring brake chamber (TKL brand); 45L air tanks (Specially intended for oversea markets) |
ABS |
Optional |
Twist Locks |
Four ,Eight or Twelve pieces (lifting type or screw type) |
Valve |
WABCO valve |
Light |
LED light(Specially intended for oversea markets) |
Voltage |
24V |
Socket(Receptacle) |
7-pin Socket (for 7 wire harness) |
Tool Box |
1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
Painting |
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
Shipping Terms |
Transported by the bulk carrier in an RORO or 40HQ container. |

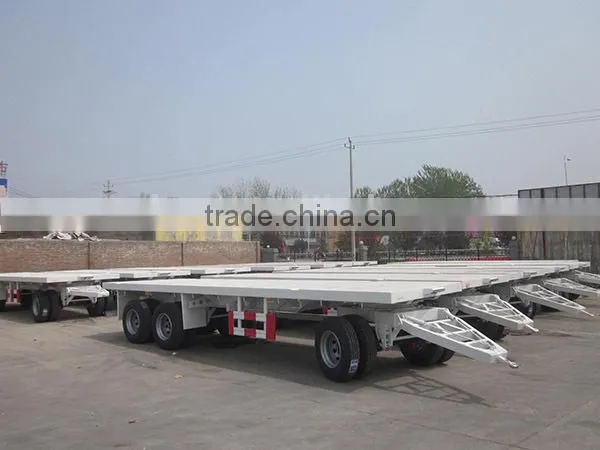

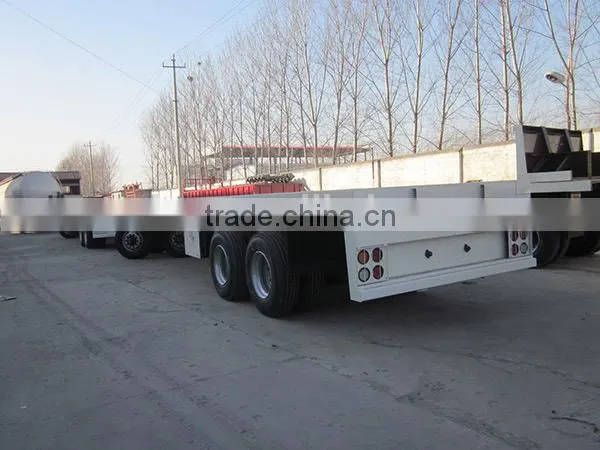

Figure Photos
Company Information
Shandong Wolwa Construction Machinery Co., Ltd is an advanced technology industry integrating research and development, production and sales. For ten years, Wolwa Group, with the goal of "Forging the first class brand, Being the pioneer of the industry", adheres to scientific and technological innovation, and walks on the way to different development. Relying on its advantage in talent, technology and capital, the Wolwa has also opened a new chapter in high-end equipment manufacturing.
