Help CenterCustomer Highly Praised Factory Timber Transport Semi Trailer With Reasonable Price From Wolwa
Related Products
-
Customer Highly Praised Factory Side Semi Trailer With Moderate Price From Wolwa Direct FactoryUS$ 10,000 - 60,000MOQ: 1 Set -
Customer Highly Praised Factory Box Semi Trailer for SaleUS$ 10,000 - 60,000MOQ: 1 Set
-
High Quality Box Cargo Transport Semi Trailer for Carrying Home Appliances, Textiles, and Building MaterialsUS$ 1 - 2MOQ: 1 Set
-
High Quality Van Type Cargo Semi Trailer Truck for Carrying Home Appliances, Textiles, and Building MaterialsUS$ 1 - 2MOQ: 1 Set
-
High Quality Cargo Box Semi Trailer for Carrying Home Appliances, Textiles, and Building MaterialsUS$ 1 - 2MOQ: 1 Set
Specifications:
Tare Weight |
About 6.8-8.6T |
Dimension |
13000mm*2490mm*2860mm(Outerside) 12800*2300*1800mm |
Loading Capacity (T) |
≤ 60 T |
Axle |
13 T/16T, FUWA /BPW /Huajing Brand |
Rim |
9.00-22.5 |
Tire |
12.00R22.5/ 315 80R22.5 |
Suspension |
Mechanical suspension (Germany Type or America Type) Or Air suspension (Chinabrand or BPW brand ) |
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer or100mm*12mm*12 |
King pin |
JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg |
JOST brand D200T orChinabrand 28Tons (Double speed) |
Main beam |
Height:500mm, upper plate is14mm, middle plate is8mm, down plate is16mm; Material is Q345B Steel . |
Side beam |
16mm or18mmchannel steel (Material is Q235steel). |
Side Wall |
600mm-1800mm ,the open door can be choose freely. |
Brake chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks |
ABS |
Optional |
Twist Locks |
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional |
Valve |
WABCO valve |
Light |
LED light |
Voltage |
24V |
Receptacle |
7 pin socket( for 7 wire harness) |
Tool box |
1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
Painting |
sandblasted, anti-rust chassis surface is available with 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping terms |
By Bulk cargo carrier,RORO or 40’HQ container |
Introduction

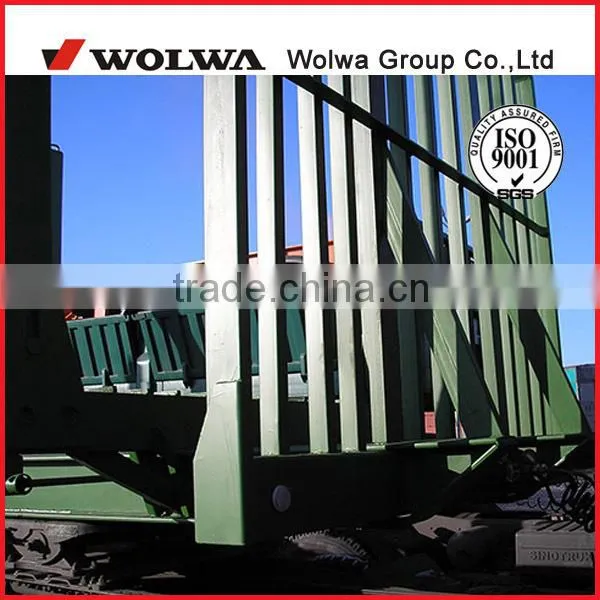

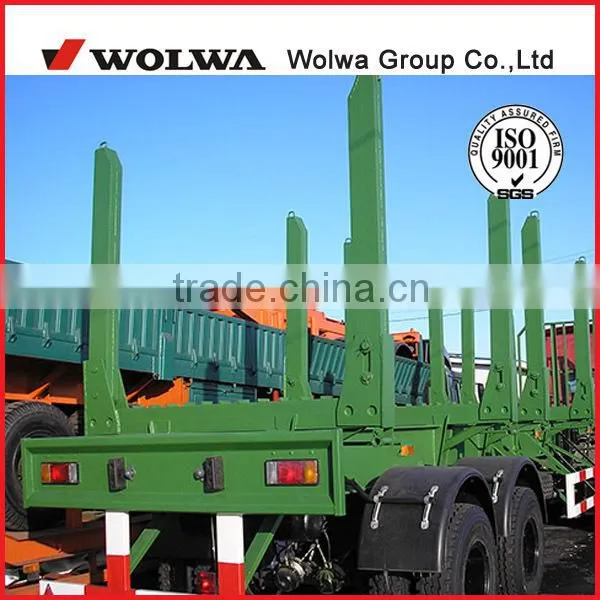

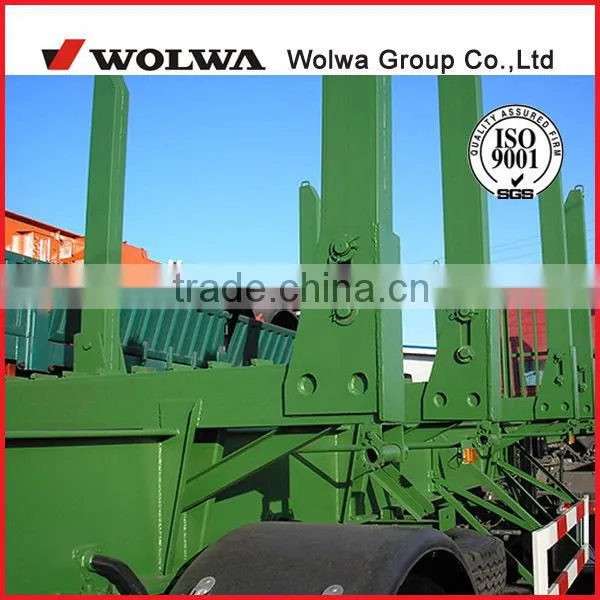

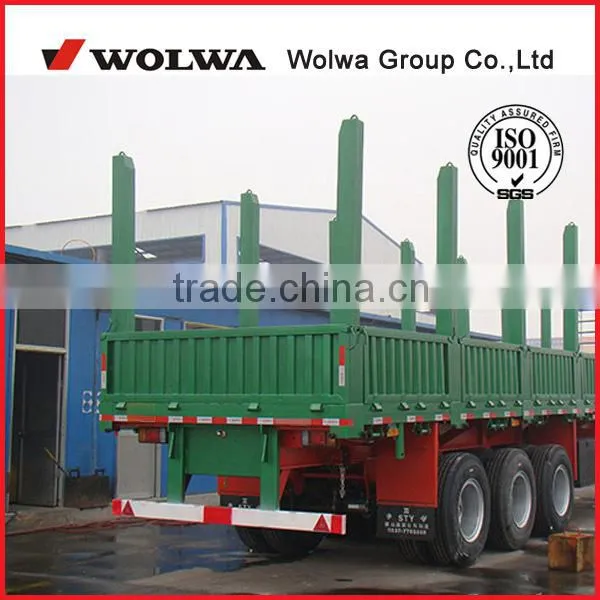

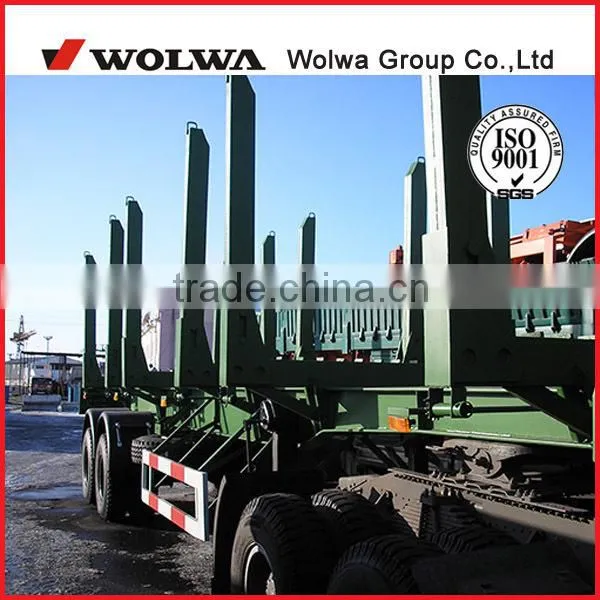

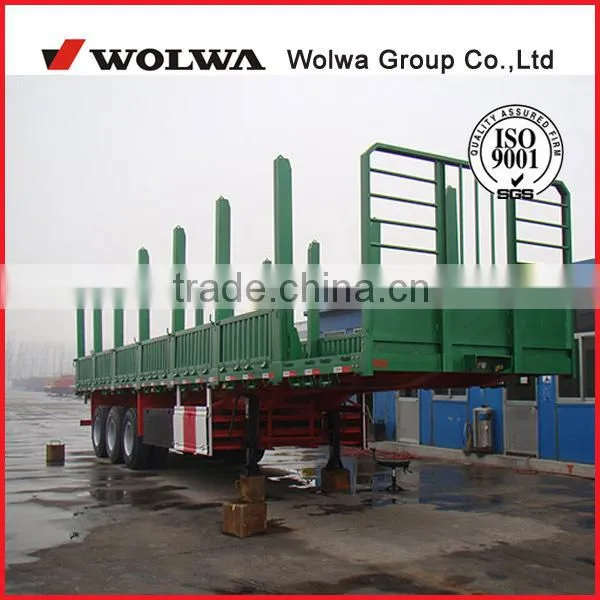

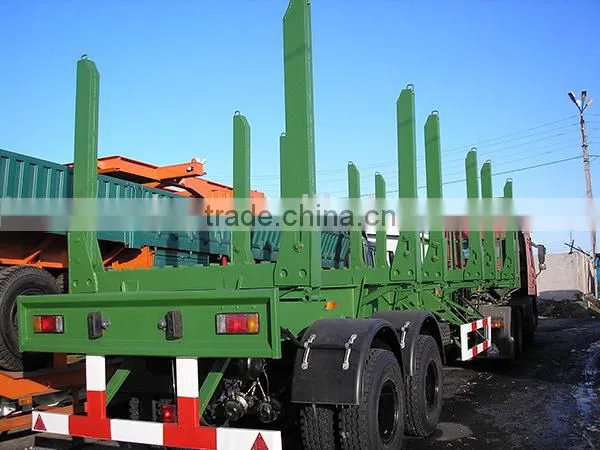

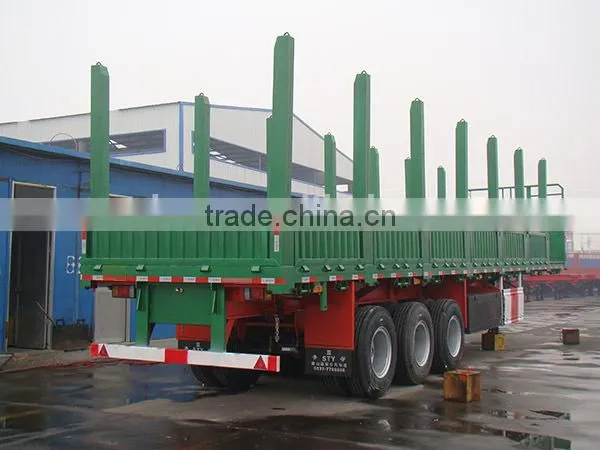

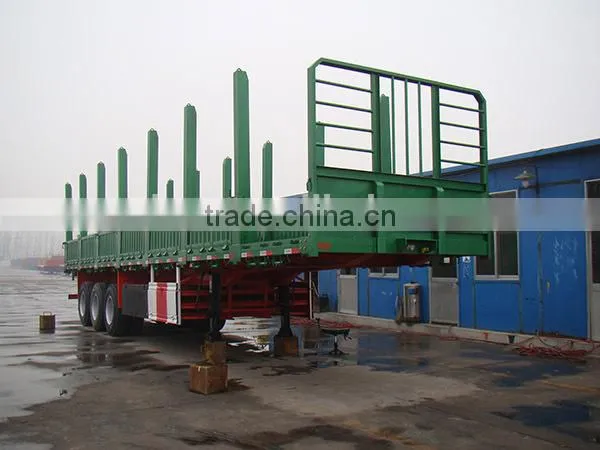

The timber transport semi trailer is specially designed for long-distance transportation of timber to and
from mountain areas or forests. This timber transportationvehicle is commonly seen in Russia and
Southeast Asia. 12×12 or 14×14 steel channel are used as posts that are placed on both sides of the
trailer. Upon your request, we can extend the posts to deliver greater safety.
Features
Main parts of our timber transport trailer are machined by advanced equipment. The vertical beam is a
welded structure produced by using a US automatic tracking welder through submerged arc welding
process. Axles are installed to the semi trailer accurately with a loader. Precise axle track can be
achieved thanks to the distance measuring tool.This series of semi trailer uses single-point mechanical
suspension system. When use in combination with drop-side trailer or flatbed trailer, it also can adopts
American or German type 3-axle mechanical suspension system. Its load capacity is somewhere
between 30t and 50t.
