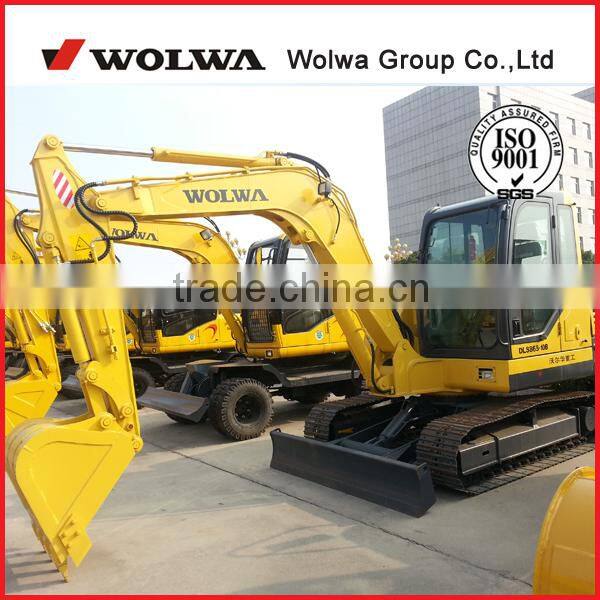

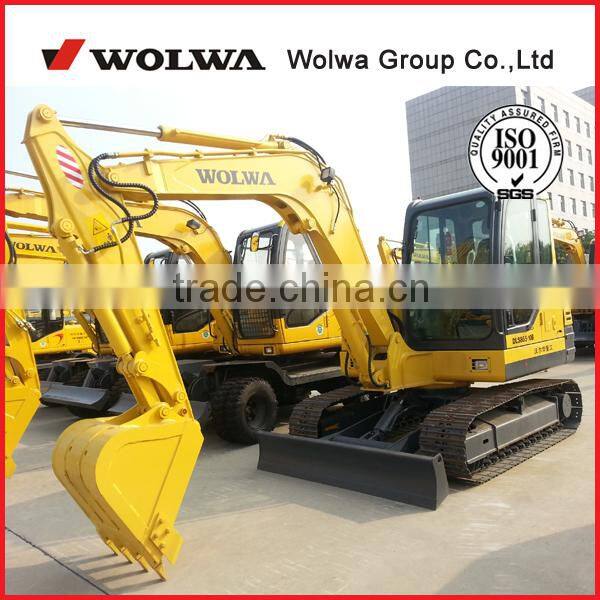

Hydraulic Excavator 6 Ton Crawler Excavator DLS865-10B

Name: Hydraulic Excavator 6 Ton Crawler Excavator DLS865-10B
Brand: Wolwa
SKU: 111839419
Availability: InStock

US$ 25,000 - 75,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Wolwa

Model Number:

DLS865-10B

Wolwa Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Wolwa

Model Number DLS865-10B

Condition New

Moving Type Crawler Excavator

Operating Weight 5850kg

Bucket capacity 0.22CBM

Maximum Digging Height 5750mm

Maximum Digging Depth 3860mm

Machine Weight 5850kg

Max Digging Radius 5750mm

Rated Speed 4.2km/h

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

hydraulic excavator 6 ton crawler excavator DLS865-10B

OPERATING WEIGHT(T)	5.85
BUCKET CAPACITY(m3)	0.22
HYDRAULIC PUMP MODEL	AP2D25LV1RS7
ENGINE MODEL	YANMAR 4TNV94L-SSN
RATED POWER(kw/r/min)	35.5/2200
FUEL TANK CAPACITY(L)	100
TRAVEL SPEED(km/h)	4.2/2.2
SWING SPEED(r/min)	9.5
MAX. CLIMBING DEGREE(%)	70
BUCKET DIGGING FORCE(KN) ISO	38.5
AVERAGE GROUNDING PRESSURE(KPa)	33.5
MAX. FLOW(L/min)	110+35.6+9.9
WORKING PRESSURE(MPa)	22.6
HYDRAULIC OIL TANK CAPACITY(L)	80
A-OVERAIL LENGTH (mm)	5960
B-OVERAIL WIDTH(mm)	1960
D-OVERAIL HEIGHT (TO TOP OF CAB)(mm)	2690
O-MAX.DIGGING HEIGHT(mm)	5750
P-MAX.DUMPING HEIGHT(mm)	3980
Q-MAX.DIGGING DEPTH(mm)	3860
