ISO14443A NFC Ultralight EV1 Sticker With Strong Glue

Manufactuer:XCC RFID

1) RFID maufactuer experiences since 1996
2) 10 000 square meters factory
3)  Export since 2007

Place of origion: Dongguan, Guagdong

ISO14443A NFC Ultralight EV1 Sticker With Strong Glue

 Features of rfid sticker

1. Customized materil, size, colour base on your specific requires

2. Ntag213/215/216 NFC RFID sticker NFC newest with stable reading performance,  widely used in AD, marketing, and society activity

3. Paper on front and adhesive layer on back, esaily used

4. High-class etched aluminium antenna

5. Offset high quality printing, packaged individual or in roll

 Specification of rfid sticker

          Four type Of  rfid NFC Tags

• Type 1: Type 1 Tag is based on ISO/IEC 14443A. This tag type is read and re-write capable. The memory of the tags can be write protected. Memory size can be between 96 bytes and 2 Kbytes. Communication Speed with the tag is 106 kbit/sec. Example: Innovision Topaz
• Type 2: Type 2 Tag is based on ISO/IEC 14443A. This tag type is read and re-write capable. The memory of the tags can be write protected. Memory size can be between 48 bytes and 2 Kbytes. Communication Speed with the tag is 106 kbit/sec. Example: Ultralight, ntag213/215/216
• Type 3: Type 3 Tag is based on the Japanese Industrial Standard (JIS) X 6319-4. This tag type is pre-configured at manufacture to be either read and re-writable, or read-only. Memory size can be up to 1 Mbyte. Communication Speed with the tag is 212 kbit/sec. Example: Sony Fe-lica
• Type 4: Type 4 is fully compatible with the ISO/IEC 14443 (A & B) standard series. This tag type is pre-configured at manufacture to be either read and re-writable, or read-only. Memory size can be up to 32 KBytes; For the communication with tags APDUs according to ISO 7816-4 can be used. Communication speed with the tag is 106 kbit/sec. Example: Desfire series chips

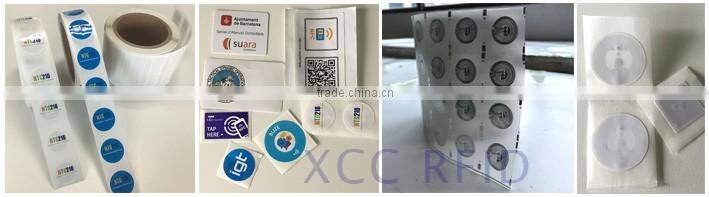

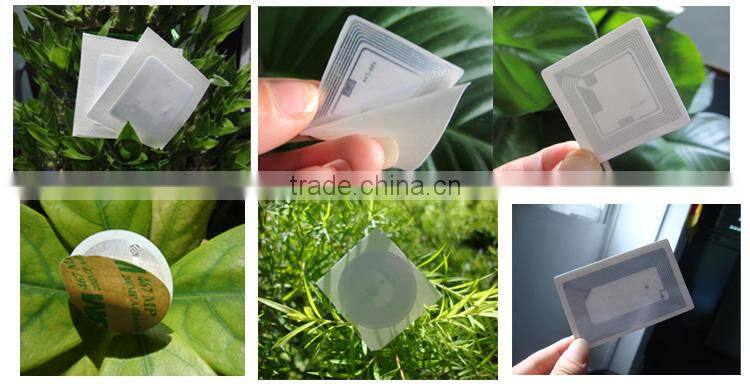

More pictures of rfid sticker
