Security Patrol RFID Tags For Guard Tour System

US$ 0.15 - 1.5 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

XCC

Model Number:

KT15123004

Shenzhen XCC RFID Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name XCC

Model Number KT15123004

Manufactuer:XCC RFID

1) RFID maufactuer experiences since 1996
2) 10 000 square meters factory
3) Export since 2007

Place of origion: Dongguan, Guangdong

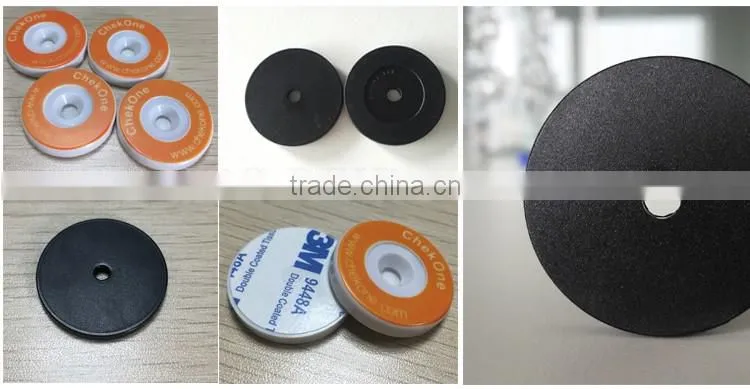

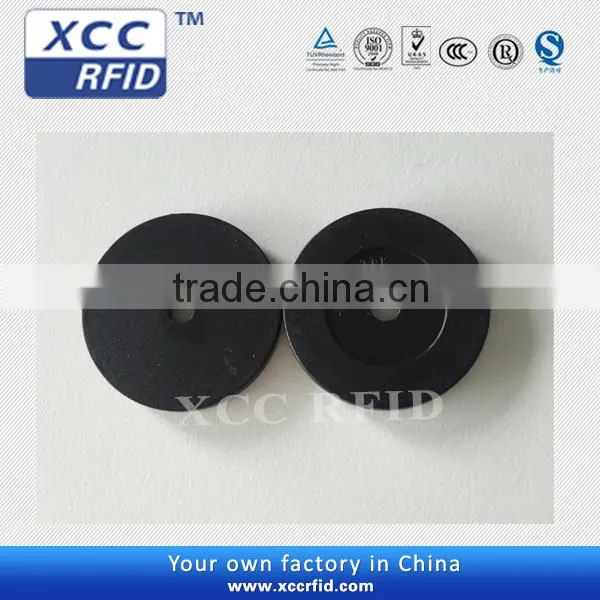

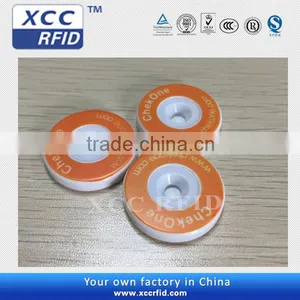

Security Patrol RFID Tags For Guard Tour System

Features of Patrol RFID Tags

1. Waterproof Passive Security Patrol RFID Tags with stable Reading performance

2. Other size and chip type are available

3. 1 or 2 colors silk printing logo

4. 3M glue sticker layer on back

5. Patorl tags can be done with or without anti-metal material

Specification of Patrol tags

1.Physical	Dimension:	25/20/30mm or customized
	Thickness	10mm or customized
2.Material	PCB, ABS
3.Chips available	HF 13.56MHz Chips (ISO 14443-A/B/15693/18000-3)
	Mf Ultralight / Mf S50 / Mf S70 /Ntag213
	Mf ICODE SLI-L /ICODE SLI/ ICODE SLI-S
	Mf DESFire EV1 2k/4K/8K
	Mf Plus S2K/4K & Mf Plus X2K/4K

	LF 125Khz Chips(ISO 18000-2)
	Tk4100/Em4200/T5577
	Hitag1/2 Hitag S256/2048
4.Memory Size	96bit / 512bit / 1-8Kbit / 1KByte /2KByte /8KByte
5.Write Cycle	100,000
6.Data retention time	10 years
7.Reading Distance	0-10m (According to the design of the antenna of the reader)
8.Working Temp	-20~+70°C
9.Available Craft	4-color offset printing , Silk-screen printing ,Thermal printing ,
	Digit printing , Magnetic stripe , Barcode, Hot-stamping gold/silver color , Signature panel , Series number marking, Hole punch,
	UV printing etc.
10.Application:	Electronic consumption
	Access management
	Property management
	Airport baggage tracking logistics
	Medical care
	Attendance management
	Banking business
