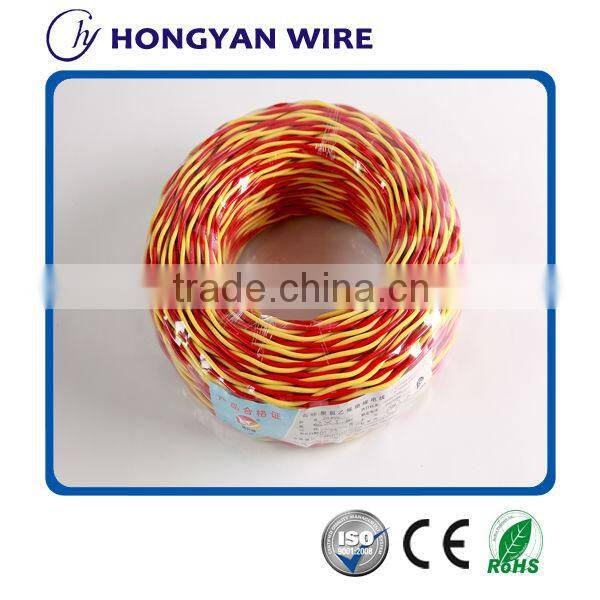

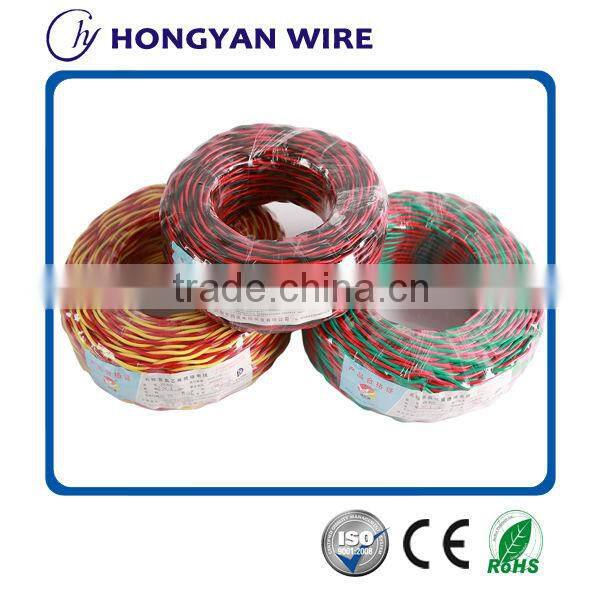

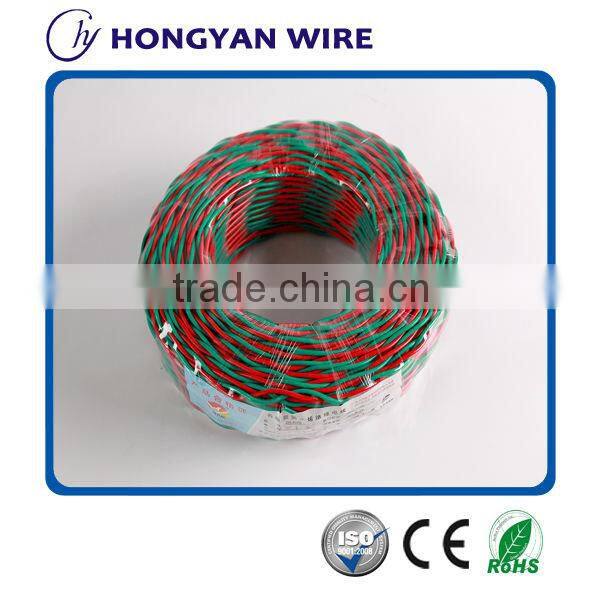

mini electric wire rope hoist PVC Insulation Flexible twisted wire with good quality
- 50000 Meter / Meters per Month
- Shenzhen Port
- T/T Credit Card
- NF24Q100-01 Carlisle Tensolite Aviation cables
- GSC-13-84943-07 GORE Aviation fiber optic transmission cable
- RCN8687 GORE Advantage products RCN8687 8989 9053
- TE 10612-24-9 Cheminax Spot inventory can be shipped at any time
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HY | Model Number: | RVS |
Type: | Insulated | Application: | Other, electric wire | Conductor Material: | Copper |
Conductor Type: | Stranded | Insulation Material: | PVC |
Product Description
Specifications
1. Model No. RVB, RVVB,RVS electric wire2. Voltage: 300/300V, 300/500V
3. Wires & Cables professional manufacturer
4. OEM
Specifications
1. Model No. RVB, RVVB,RVS electric wire
2. Voltage: 300/300V, 300/500V
3. Wires & Cables professional manufacturer
4. OEM acceptable
1. Application:
This product is fit A.C rated voltage up to and including 300/500V.
2. Use:
This product is suitable to be used in household appliances, electric tools and lighting.
3. Structure:
A: Copper Conductor
B: PVC Insulated
C: PVC Sheathed
4. Production Standards:
60227 IEC 42
60227 IEC 52
JB8734.3
5. Conductor:
Copper
6. Insulation:
PVC(Polyvinyl Chloride)
7. Jacket
PVC(Polyvinyl Chloride)
8. Operating Characteristics:
A. The permissible long-term operating temperature of cable conductor shall not exceed 70°C.
9. Specifications:
RVB 300/300V (60227 IEC 42) | |||
Nominal Section (mm2) | Approximate O.D. (mm2) | Conductor Resistance (20°C,Ω/km) | Approximate Weight (kg/km) |
2x0.3 | 2.3X4.3 | 69.2 | 12.5 |
2x0.4 | 2.5X4.6 | 48.2 | 16.0 |
2x0.5 | 3.0X5.8 | 39.0 | 20.5 |
2x0.75 | 3.2X6.2 | 26.0 | 27.5 |
2X1.0 | 3.4X6.6 | 19.5 | 33.0 |
RVVB 300/500V (60227 IEC 52) | |||
2x0.75(A) | 7.6 | 26.0 | 50.2 |
2x0.75(B) | 5.0X7.6 | 26.0 | 35.0 |
2x1.0 | 7.8 | 19.5 | 69.9 |
2x1.5 | 8.8 | 13.3 | 92.0 |
2x2.5 | 11.0 | 7.98 | 132.8 |
3x0.75 | 8.0 | 26.0 | 66.1 |
3x1.0 | 8.4 | 19.5 | 83.3 |
3x1.5 | 9.6 | 13.3 | 114.7 |
3x2.5 | 11.5 | 7.98 | 160.9 |
4x0.75 | 8.6 | 26.0 | 81.1 |
4x1.0 | 9.2 | 19.5 | 102.4 |
4x1.5 | 11.0 | 13.3 | 147.3 |
4x2.5 | 12.5 | 7.98 | 203.5 |
5x0.75 | 9.4 | 26.0 | 98.7 |
5x1.0 | 11.0 | 19.5 | 125.0 |
5x1.5 | 12.0 | 13.3 | 178.6 |
5x2.5 | 14.0 | 7.98 | 246.7 |
RVS 300/300V (JB8734.3,Q/HY001) | |||
2x0.5 | 2.4X4.8 | 39.0 | 18 |
2x0.75 | 2.8X5.6 | 26.0 | 25 |
2x1.0 | 3.0X6.0 | 19.5 | 30 |
2x1.5 | 3.2X6.6 | 13.3 | 43 |
2x2.5 | 3.8X7.8 | 7.98 | 67 |
100m/Roll(other packing is optional)
1.15 years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,ISO certificate
We are professional manufacturer for electric wire and network cable with competitive price and best quality since 1999,located in shenzhen city,China.
Production capacity: Eighty Millions per year
Factory area:2000 square meter
Worker:150 people
Certificate:CCC,ISO9001,CE,ROHS
Main Products:PVC insulation Wire,PVC/XLPE Power Cable,Fire-resistant wire,Control Cable,Lan Cable,Coaxial Cable,etc
