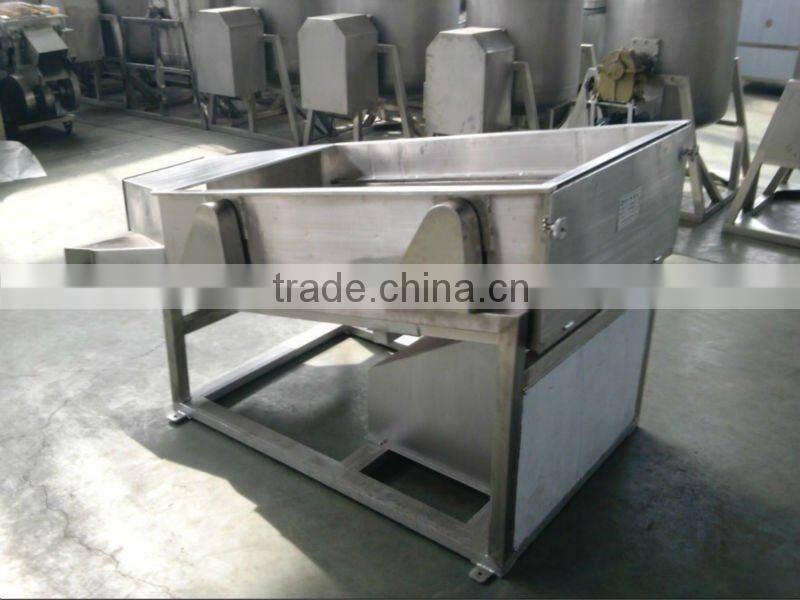

Sieve Screening Machine (one Screen, Two Discharge Exits)

Name: Sieve Screening Machine (one Screen, Two Discharge Exits)
Brand: kanghua
SKU: 111819983
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

kanghua

Model Number:

SX sieving machine

Hangzhou Fuyang Kanghua Pharmaceutical Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name kanghua

Model Number SX sieving machine

Application Other, Granules, Granules

Specifications

Sieve screening machine is used to
separation and classification of materials.
Numbers and size of screen is booked
by user.

Main applications

The sieve screening machine is mainly suitable for separation and

classification of raw materials, semi-products and finished products.

Main features

The lathe bed is consisted of a main eccentricity and four surrounding

flexible supports. The whole machine runs stably with small vibration,

low noise and easy maintenance in compliance with requirements of GMP.

Working principle

It is made up of frame, transmission, lathe bed, screens, discharge exits.

The screen bed performs circular movement at even speed. The material

moves along the sloped screen surface downwards to reach the objective

classification through screens of various grades. And it can change the

size of screens.

Technical parameter

Model	Capacity (kg/h)	Screen number (piece)	Outlet exits	Rotate speed of principle axis (r/min)	Power (kw)	Dimension (mm)	Weight (kg)
SX-2	50-300	1	2	190	0.75	1000500600	80
SX-2A	200-1000	1	2	190	0.75	20001130950	210
SX-3B	200-600	2	3	190	1.1	200015001250	230
SX-4C	200-800	3	4	190	1.1	20001130700	250
