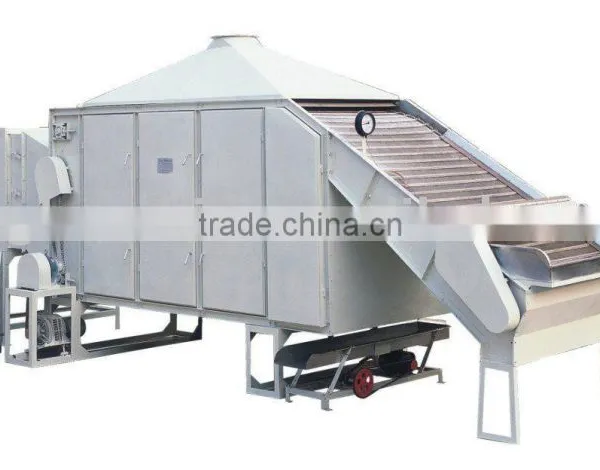

Help CenterHerb Drying Machine (stainless Steel)
Related Products
Specifications
Drying machineUse:drying tea, herbs, aquatic and agricultural products by hot air
heat source:coal,oil,steam,electricity.
Main application
The herb drying machine is used for drying tea, herbs, aquatic products and agricultural and sideline products. The heat sources can be coal, oil, steam or electricity.
Main feature
The dryer is automatic material feeding, continuous operation, stepless governing and high efficiency. This is according with the requirement of GMP.
Working principle
The generated clean hot air is distributed to the multilayer flaps in the drying box. The material is fed into the box by conveying device. It moves from up downwards and dries by transferring and radiating from the hot air.
Technical parameter
|
Model |
Drying area (m2) |
Output (kg/h) |
Power (kw) |
Steam consumption (kg/h) |
Dimension (mm) |
Weight (kg) |
HG-6 |
6 |
20~100 |
8.1 |
≤350 |
6700×1900×2050 |
1200 |
HG-16 |
16 |
80-160 |
4.87 |
≤400 |
8000×1900×2050 |
3500 |
HG-25 |
25 |
130-280 |
5.87 |
≤450 |
8000×2350×2150 |
4000 |
HG-30 |
30 |
100-450 |
1.5 |
≤500 |
9500×2350×2650 |
5000 |
