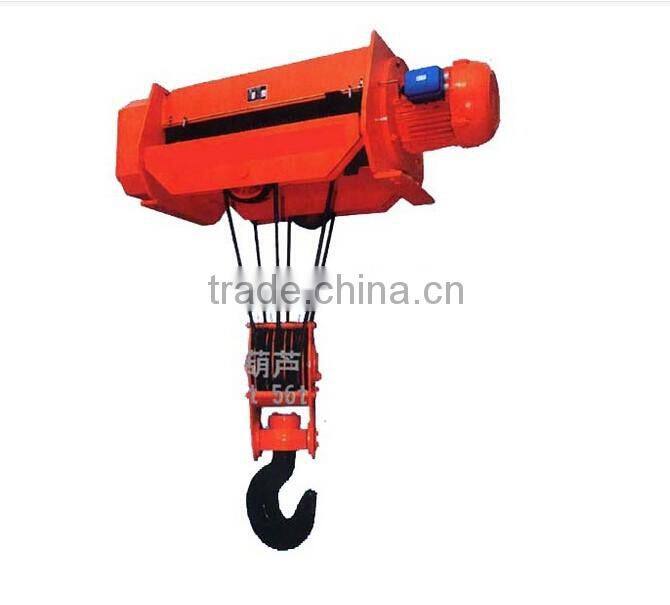

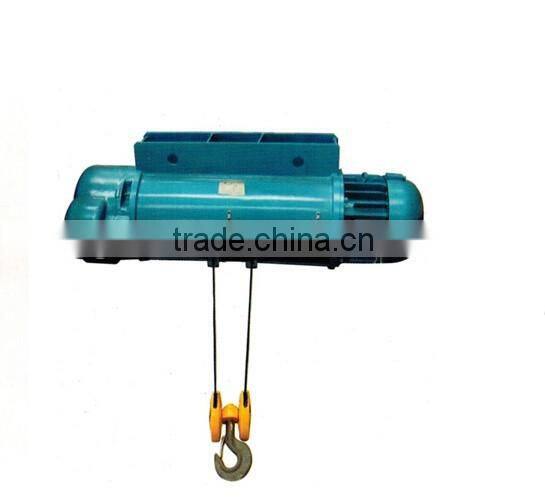

20 ton electric wire rope motor hoist with good price
electric hoist has two kinds of types,one is has only normal speed,the other have two kinds of speed , normal speed and slow speed , which can satisfy normal application.,
CD1 Hoists are specially designed for higher lifts, faster hoisting & cross travel speeds & moveable on curved tracks can be manufactured on request.
MOTORS: We offer hoist & crane duty VZ hour rated squirrel cage induction motors, confirming to IS 325 with comparatively higher H.P. and higher starting torque to reduce handling time. It is flange mounted to suit our design and with Class B or F insulation.
ROPE DRUM: The rope drum is machined & grooved accurately to ensure proper seating of wire rope in a proper layer. The drum is fitted with two heavy duty Ball / Roller bearings for smooth operation & longer life.
ROPE GUIDE: The rope guide is made of special close grain castings & is specially designed and accurately machined to suit the grooves of the rope drum & prevents the rope from overriding & loosening. It also operates the limit switches provided as a safety feature to limit the over hoisting & over lowering of the hook. The guide is so designed to ensure proper tensioning of the rope.
GEAR BOX: Totally enclosed oil splash lubricated & dust free gear box is provided for smooth, trouble free & longer life. All gears are helical type and cut from alloy steel / low carbon steel on hobbing machines for achieving higher precision & a special process of gear toughening ensures smooth, silent, trouble free running of drive system. The pinions and gears are supported on anti-friction bearings on both ends.
CONSTRUCTION: brake, motors, gear box & Control panel are independent units and are accessible easily. The complete hoist can be easily maintained by keeping it in its installed position, thus saving on precious labor as well as down time maintenance time.

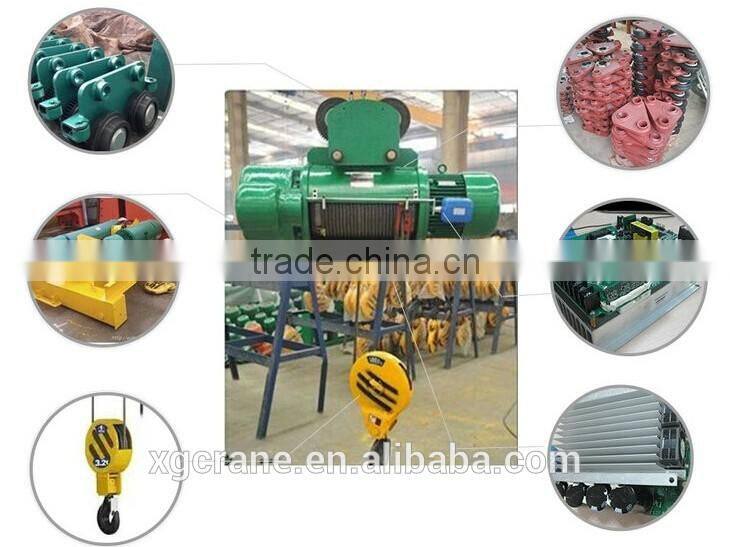

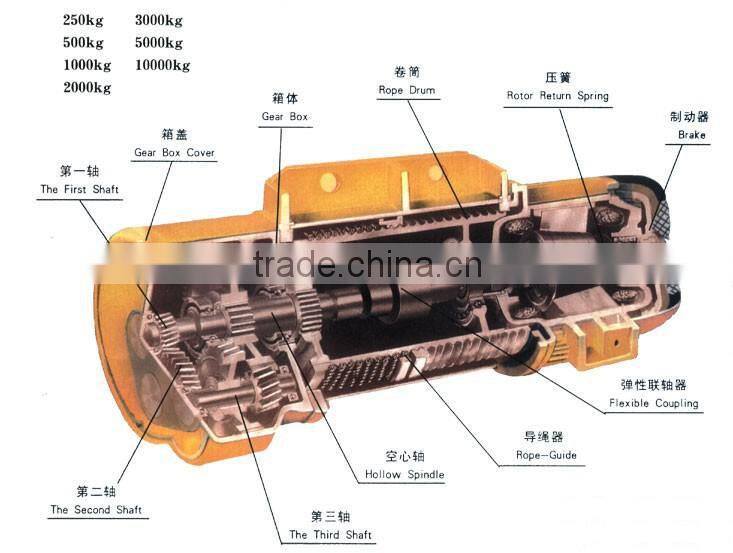

Componment of electric hoist
Our customers are form more than 30 countries .If you are interested in our wire rope electric hoist ,Pls let us know the following information :
1.Type of wire rope electric hoist ,
2.lifting capacity
3.lifting height
4.Voltage .
The more details of wire rope electric hoist ,the better .
If you want to purchase electric hoist ,Pls feel free to contact Jessie .
Have a good day !
