Product Details
| Place of Origin: | Henan, China | Brand Name: | Hengxin | Model Number: | 1A1 80/100 |
| Type: | Other, grinding wheel | Size: | 75*32*20*10 |
Product Description

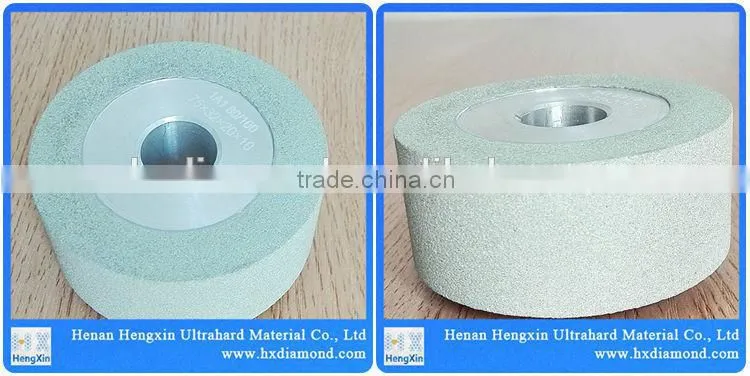

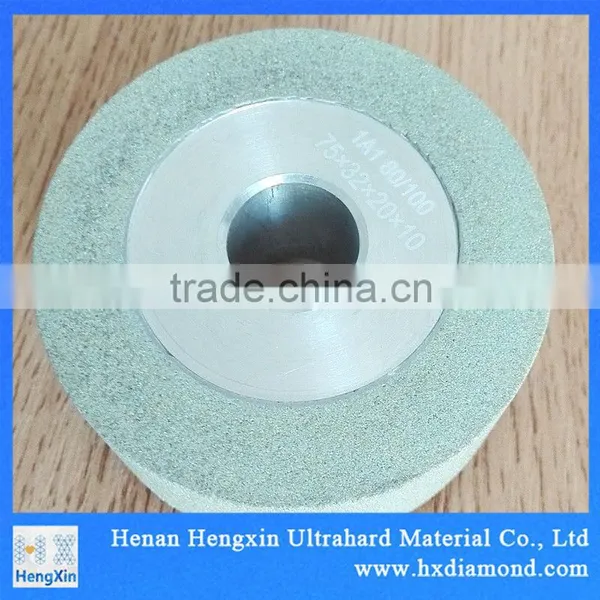

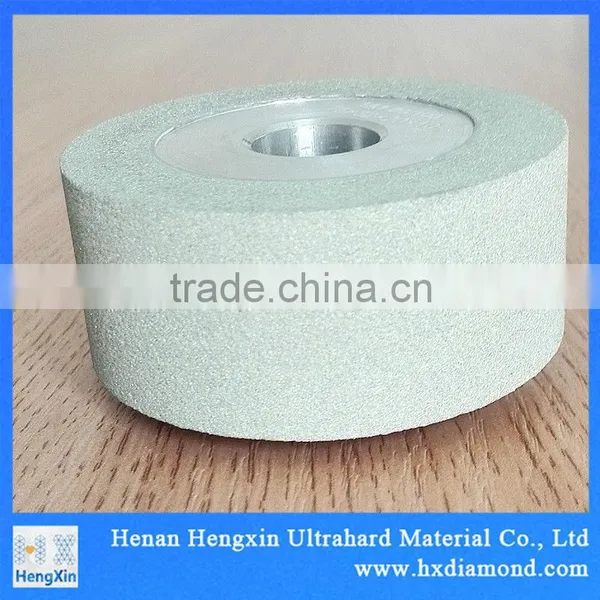

good market made in china 1A1 vitrified bonded grinding wheel for grinding machine
vitrified bonded grinding wheel
Name | Vitrified Bonded Grinding Wheel | Brand name | Hengxin |
Bond | Vitrified | Abrasive Material | Diamond/CBN |
Model | 1A1 80/100 | Grit Size | 80/100 |
Size | 75*32*20*10 | Shape | Flat-shaped |
Other Model | 1A1, 1V1, 1EE1, 1FF1, 3A1, 11A2, 6A9, 14A1,14A1R,11V9, 11C9, 4A2, 6A1,6A2, 12A2, 9A3, 1F1,12V2, 1L1, 14EE1, 4B1, 14E1, 4A2P, 11B2, 6A2T, 11V2, 9A1, 1A1R, 1F1, 1A8, 9A1, 9A1B,3K1, 1A1W, 4V2, 1A3, 1A2T,1A2, 12C9 ,etc. | ||
Characteristics | high speed, high strength, long working life, good shape maintainability, excellent sharpness, etc.
| ||
Application Field | tungsten carbide, ceramics, glasses, PCD,PCBN, CVD, natural diamond, stones, etc. | ||
The Vitrified Bond Diamond Grinding wheels are mainly used for the applications of processing the hard and brittle materials, such as ceramics, tungsten carbide and polycrystalline diamond(PDC)etc.
Other 1A1 Sizes
Type | D (mm) | T (mm) | H (mm) | X (mm) |
1A1 | 80 | 5,10 | 32 | 8, 10 |
125 | 5,10 | 32 | 8,10 | |
150 | 5,10 | 32 | 10 | |
155 | 10 | 32 | 10 | |
160 | 10 | 32 | 10,12 | |
170 | 10 | 32 | 10,12,14 | |
175 | 10 | 32 | 10,15 | |
200 | 10 | 32 | 10, 12 | |
220 | 10 | 32 | 20 | |
Other Sizes Can Be Customized According To Your Requirement | ||||

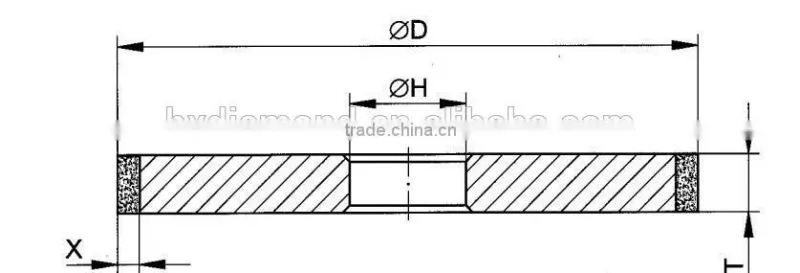

Grinding Wheel Drawing
| Any other types of tools can be customized according to clients’ specific requirement. If needed, please provide the following info: |
1.Technical drawing or sample’s image, 2.Specification of Product in detail (Outer/Hole Diameter, Width, Thickness ...) 3.Diamond Grit Size 4.Application 5.Quantity
| |
Wheels Series
Products | Packing | Service |
Synthetic diamond /CBN Powder | 5000cts packed into three layers of plastic bags, 10 to 20 bags into one carton | According to the customers' requirement. |
Diamond tools | 1 or 2 pcs diamond tools in a box, lined with foam plastics | |
Synthetic diamond products | 200 pcs packed in one box, 5 to 10 boxes to one carton |
