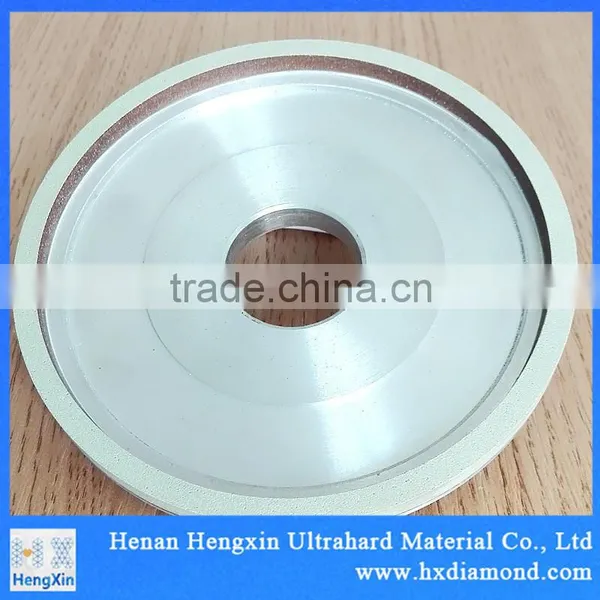

china abrasive grinding wheel vitrified bonded diamond wheels
vitrified bonded grinding wheel
Name |
Vitrified Bonded Grinding Wheel |
Brand name |
Hengxin |
Bond |
Vitrified |
Abrasive Material |
Diamond/CBN |
Model |
1A1 230/270 |
Grit Size |
230/270 |
Size |
200*15.4*32*12 |
Shape |
Flat-shaped |
Other Model |
1A1, 1V1, 1EE1, 1FF1, 3A1, 11A2, 6A9, 14A1,14A1R,11V9, 11C9, 4A2, 6A1,6A2, 12A2, 9A3, 1F1,12V2, 1L1, 14EE1, 4B1, 14E1, 4A2P, 11B2, 6A2T, 11V2, 9A1, 1A1R, 1F1, 1A8, 9A1, 9A1B,3K1, 1A1W, 4V2, 1A3, 1A2T,1A2, 12C9 ,etc. |
||
Characteristics |
high speed, high strength, long working life, good shape maintainability, excellent sharpness, etc.
|
||
Application Field |
tungsten carbide, ceramics, glasses, PCD,PCBN, CVD, natural diamond, stones, etc. |
||
Diamond and CBN wheels are designed to grind very hard materials like Tungsten Carbide, HSS, Hardened Steel, Aero space alloys, Ceramics, Glass and Refractory materials to a high level of precision and quality. Various factors affect selection of the right superabrasive grinding wheel. Application/ Product Engineers from SEB will help you select the right product fine-tuned to meet the exact application need. SEB also offers a wide range of Resin bond, Metal bond, vitrified bond and Electro-plated wheels for tool regrinding and for job working applications on Carbides, Tool Steels, HSS, Ceramics, Glass, and Refractory materials. These wheels have been optimised in design for various wheel factors like Diamond & CBN type, grit, concentration, bond, and grade to suit a variety of jobs.

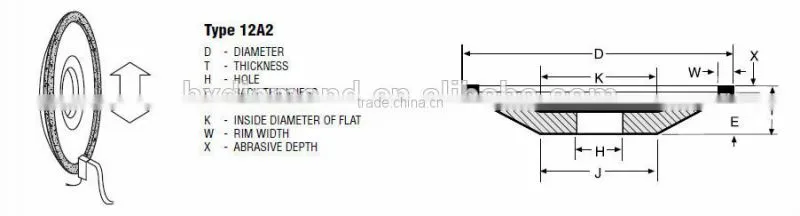

Type |
D (mm) |
T (mm) |
H (mm) |
X (mm) |
12A2 |
80 |
5,10 |
32 |
8, 10 |
125 |
5,10 |
32 |
8,10 |
|
150 |
5,10 |
32 |
10 |
|
155 |
10 |
32 |
10 |
|
160 |
10 |
32 |
10,12 |
|
170 |
10 |
32 |
10,12,14 |
|
175 |
10 |
32 |
10,15 |
|
200 |
10 |
32 |
10, 12 |
|
220 |
10 |
32 |
20 |
|
Other Sizes Can Be Customized According To Your Requirement | ||||
|
Any other types of tools can be customized according to clients’ specific requirement. If needed, please provide the following info: |
|
1.Technical drawing or sample’s image, 2.Specification of Product in detail (Outer/Hole Diameter, Width, Thickness ...) 3.Diamond Grit Size 4.Application 5.Quantity
| |
Wheels Series
Products |
Packing |
Service |
|
Synthetic diamond /CBN Powder |
5000cts packed into three layers of plastic bags, 10 to 20 bags into one carton |
According to the customers' requirement. |
Diamond tools |
1 or 2 pcs diamond tools in a box, lined with foam plastics |
|
Synthetic diamond products |
200 pcs packed in one box, 5 to 10 boxes to one carton |
