BS 4568 CLASS 4 Emt Conduit Steel Pipe
US$ 750 - 900
MOQ: 5 Tons
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
1.07, 3.8
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Thickness
1.07, 3.8
Section Shape
Round
Outer Diameter
0.5 - 4 inch
Place of Origin
Hebei, China
Secondary Or Not
Non-secondary
Application
Other, ELECTRICITY STRUCTURE
Technique
ERW
Certification
UL
Surface Treatment
Galvanized
Special Pipe
EMT Pipe
Alloy Or Not
Non-alloy
Specifications
BS 4568 CLASS 4 emt conduit steel pipeSIZE:1/4"---4"
THICKNESS: ECONOMY AND STANDURD
MOQ : 5 TONS
BS4568 CLASS 4 1" inch emt conduit steel pipe
BS 4568 ELECTRICAL MENTALIC STEEL CONDUIT PIPE
SIZE: 1/2"--4"
WALL THICKNESS: 1MM-4MM
LENGTH: 3050MM
PACKING: IN BUNDLE THEN PLASTC CLOTH OUTSIDE
THICKNESS: ECONOMY AND STANDURD
FINISH: PRE AND HOT DIPPED GALVANISED STEEL PIPE
THE SIZE AND WEIGHT FOR THE EMT STEEL PIPE
| Nominal Diamension | Outside Diameter | Wall Thickness | Length | Weight | ||||
| Size | Size | |||||||
| Inch | mm | Inch | mm | Inch | mm | FT | mm | KG/Meter |
| 1/2 | 16 | 0.706 | 17.93 | 0.042 | 1.07 | 10 | 3050 | 0.439 |
| 3/4 | 21 | 0.922 | 23.42 | 0.049 | 1.24 | 0.669 | ||
| 1 | 27 | 1.163 | 29.54 | 0.057 | 1.45 | 0.99 | ||
| 1--1/4 | 35 | 1.51 | 38.35 | 0.065 | 1.65 | 1.469 | ||
| 1--1/2 | 41 | 1.74 | 44.2 | 0.065 | 1.65 | 1.698 | ||
| 2 | 53 | 2.197 | 55.8 | 0.065 | 1.65 | 2.17 | ||
| 2--1/2 | 63 | 2.875 | 73.03 | 0.072 | 1.83 | 3.177 | ||
| 3 | 78 | 3.5 | 88.9 | 0.072 | 1.83 | 3.879 | ||
| 3--1/2 | 91 | 4 | 101.6 | 0.083 | 2.11 | 5.17 | ||
| 4 | 103 | 4.5 | 114.3 | 0.083 | 2.11 | 5.75 | ||
NOTES.
Length: 10FT ±1/4in. 3050mm ±6.35mm.
Outside Diameter: 1/2" to 2" ±0.005in.(16mm to 53mm ±0.13mm).
2-1/2" ±0.010in. (63mm ±0.25mm).
3" ±0.015in. (78 ±0.38mm).
3-1/2" to 4" ±0.020in. (91mm to 103mm ±0.51mm)

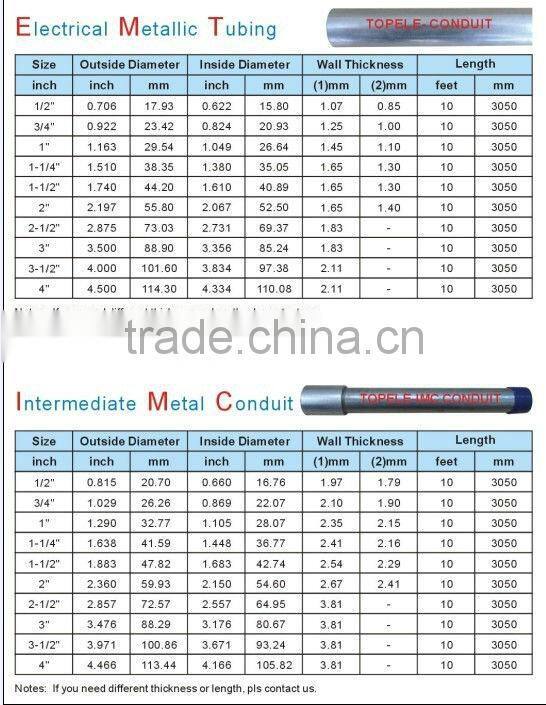

THE SPECIFICATION OF EMT AND IMC

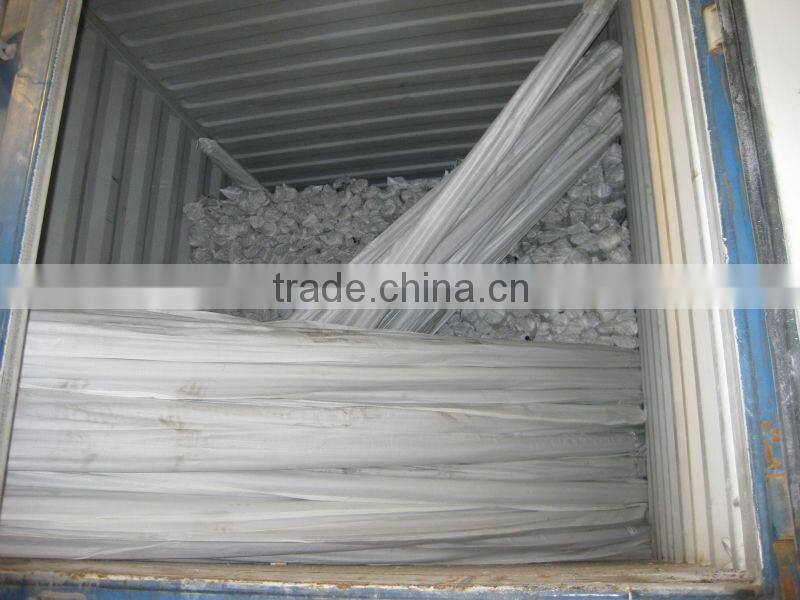

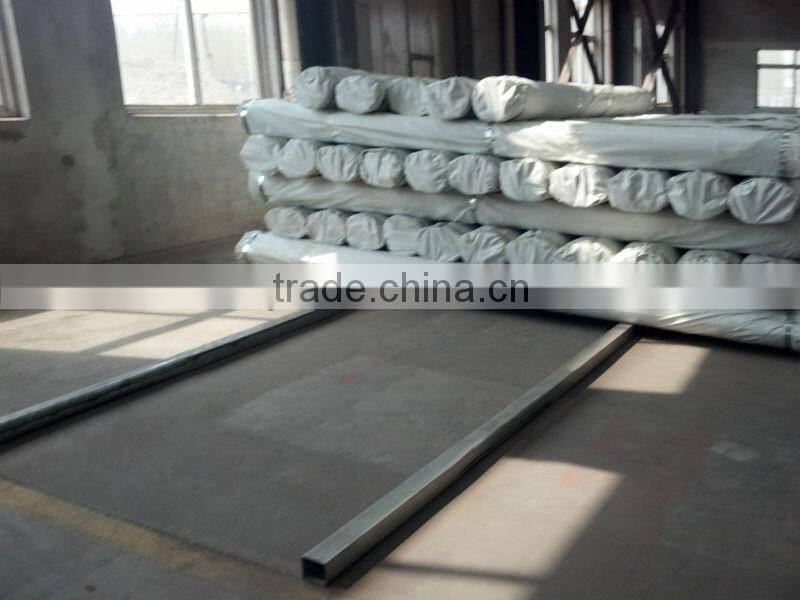

THE PACKING OF THE CONDUIT STEEL PIPE

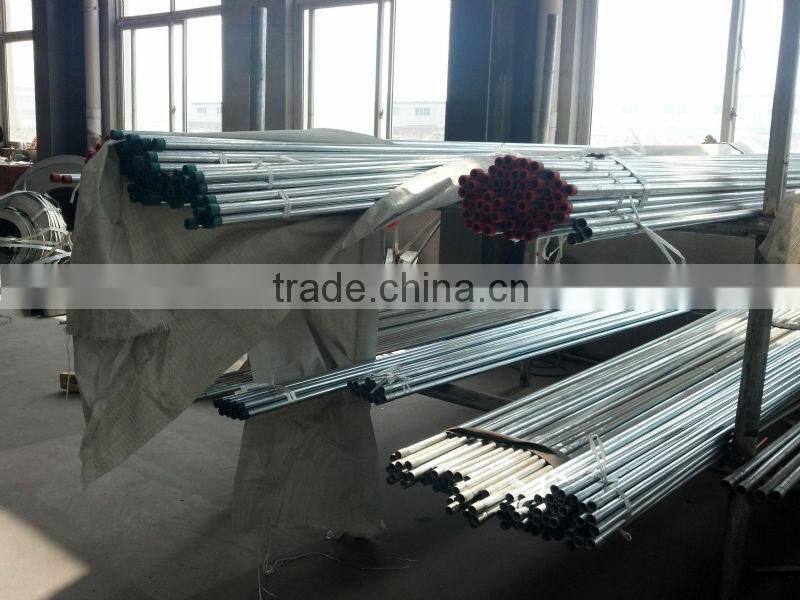

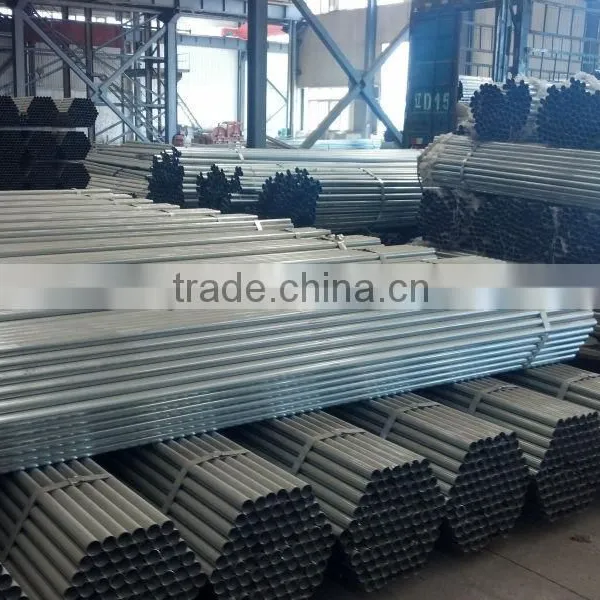

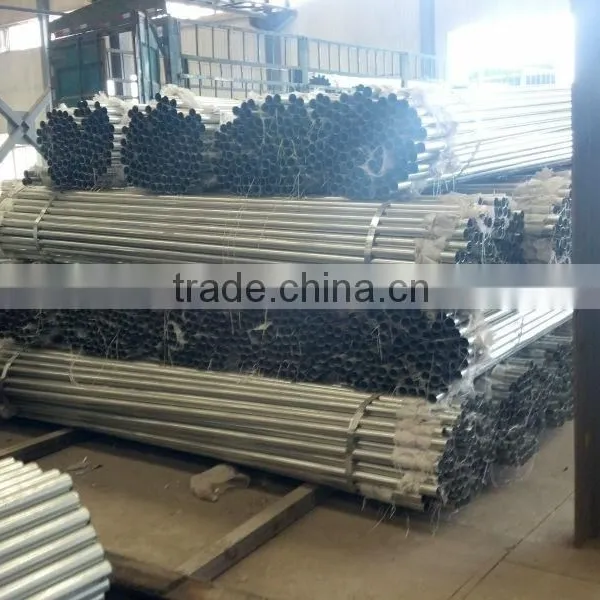

THE STOCK OF THE CONDUIT STEEL PIPE
