Specifications
DC Inverter MIG TIG MMA Welder- IGBT
- 32bit MCU, LCD Display
- Selective modules: EMC, VRD, PFC
- Certificate: CE/EMC/GS

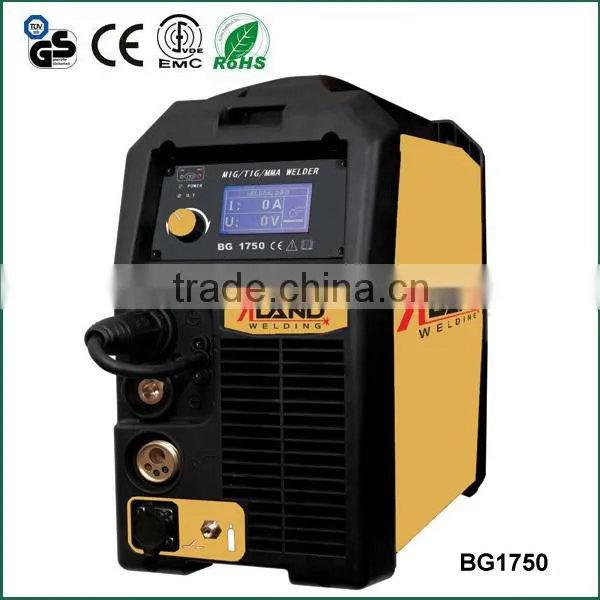

BG-1750 DC Inverter MIG Lift-TIG MMA Welder
DC Inverter IGBT MCU MIG/TIG/MMA 3 In 1 Welder
Features:
- Adopt IGBT & advanced PWM inverter technology
- High performance 32bit MCU and LCD display.
- DC MIG, Lift-TIG, MMA function.
- Arc force, hot start can be adjusted in the manual welding.
- Current dropping and gas aspirated time can be adjusted in the argon arc welding.
- Selective modules: EMC, VRD, PFC
(Add different function module, the parameter and weight will change.)
- Synergic HOME function automatically manages ideal voltage while only adjusting wire feed speed.
- Compact, light weight, portable.
- Compatable POWER GENERATOR
- Intelligent Protection: over-voltage, low-voltage, over-current, over-heat
Application:
- Applied to automobile manufacturing, engineering machinery, shipbuilding industry, aviation and agricultureal machinery, etc.
- Apply to general carbon steel, excellent carbon steel, low alloy steel, conducting butt welding, lap welding and fillet welding of all space position.
- Alloy to Φ0.8-Φ1.0mm welding wire, fixed location welding, various kinds of thin thickness of the common parts, frame and auto industry.
Specifications:
| Model | BG-1750 |
| Rated Input Voltage(V) | 1phase,230±15% |
| Input Frequency(Hz) | 50/60 |
| Rated Input Power(KVA) | 4.4(MIG) 3.3(TIG) 5.2(MMA) |
| No-load Voltage(V) | 56 |
| Rated Output Voltage(V) | 27(MMA) 22.75(MIG) 17(TIG) |
| Output Current Range (A) | 5-175 |
| Duty Cycle(%) | 40C°175A@ 35% 40C°125A @ 60% 40C°100A @ 100% |
| Efficiency(%) | 80 |
| Insulation Class | F |
| Protection Class | Ip23S |
| Weight(Kg) | 14 |
| Dimension(mm) | 440x215x405 |
Optional Accessories:
MIG Torch, TIG Torch, Electrode Holder, Ground Clamp, Welding Mask, Steel Brush.
Beijing Aland Welding Co., Ltd. is a professional welding company who is specializing in Researching, Manufacturing and Exporting welding products.
Our welding machine line include:
- Inverter Digital MCU Welder
- IGBT Inverter DC MMA Welder
- MOS Inverter DC MMA Welder
- Inverter DC TIG Welder
- Inverter DC TIG/MMA Welder
- Inverter DC TIG/MMA/CUT Welder
- Inverter DC MIG/MAG Welder
- Plasma Cutter
- Wire feeder
Any inquiry from you will be highly appreciated and replied immediately.
