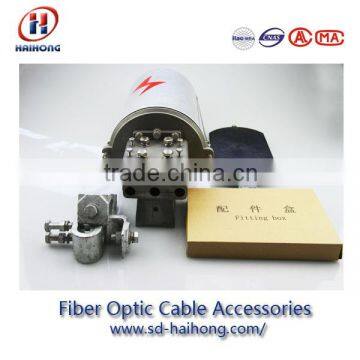

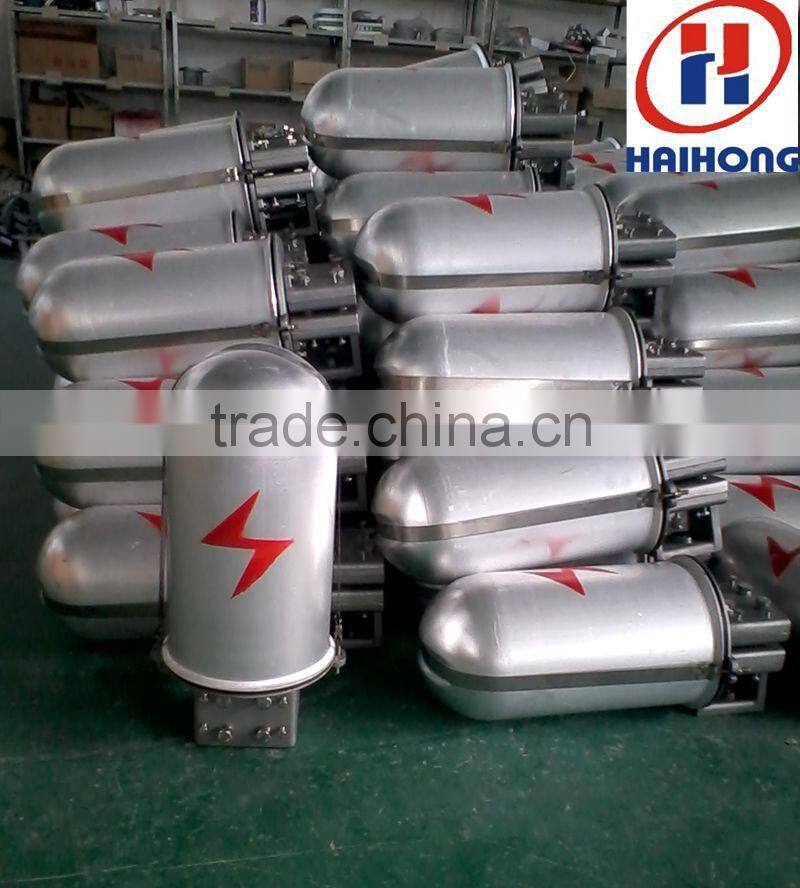

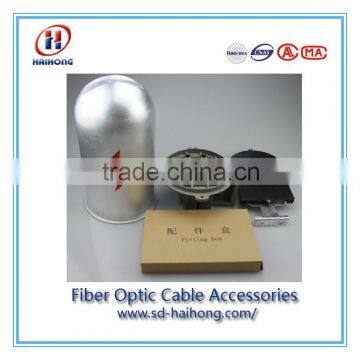

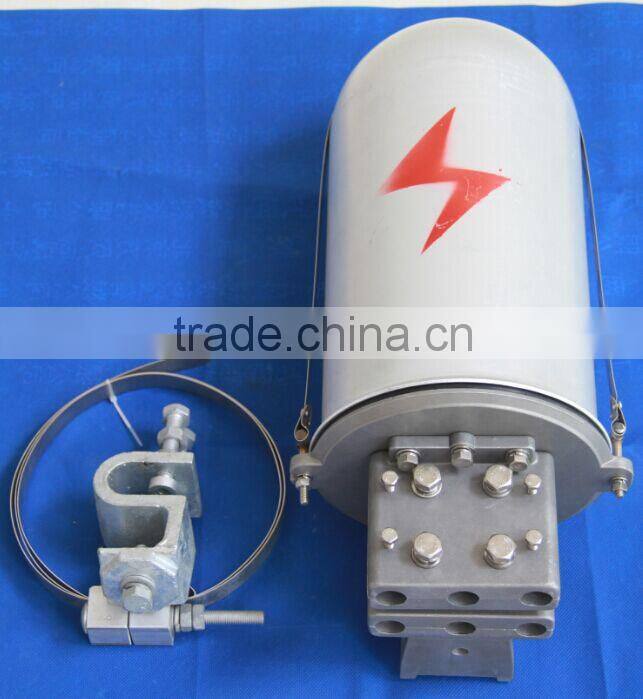

Vertical Fiber Optic Cable Joint Box
Technical indicators:
1, the total length of 500 mm, outside diameter of 500 mm, inner diameter 180 mm.
2,temperature performance: - 40 ℃- + 60 ℃.
3, the electric strength: 15 kv dc, 2 minutes without breakdown.
4,ant-vibration performance is:106
5, sealed performance is: 100 kpa, 72 hours, the pressure is constant.
6,the maximum cable diameter 22 mm, maximum joint some 144 core.
7, the service life of 50 years.
specification parameter
application:This product is suitable for ADSS/OPGW cable,cable joint splice protect.
Order direction
1.Please note the core number of the cable.
2.Please note the number of input ports, output ports and the corresponding cable diameter.
3.Cable storage for pole and tower. If you need cable storage for pole, please provide the pole diameter.
Our factory
We are Shandong HaiHong Electric Power Equipment CO., LTD,established in 2007years. Location in Shandong,China (Mainland).Our factory size below 3,000 square meters.We main in ADSS OPGW accessories( Preformed Tension Clamp,Preformed Suspension Clamp,Vibration Damper,Cable Joint Box,Down Lead Clamp) and so on.
Company Address:West Of Industrial West Rd., North Of Yingbin Road, Qufu, Jining, Shandong, China (Mainland)

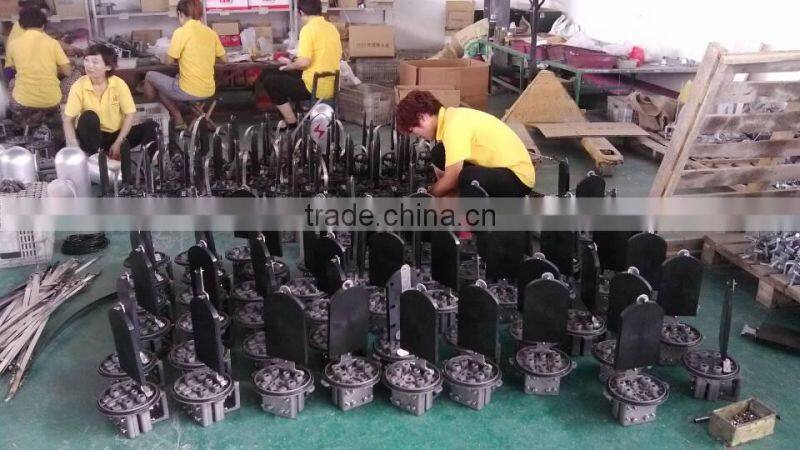

workshop
