15A General Purpose Stainless Steel Low-force Wire Hinge Lever Micro Switch
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TMAZTZ
Model Number:
TZ-1705
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
15A General Purpose Short Spring Pin Plunger Micro SwitchNegotiableMOQ: 50 Pieces -
15A General Purpose Unidirectional Short Hinge Roller Lever Mini Micro SwitchNegotiableMOQ: 50 Pieces
-
15A General Purpose Short Hinge Roller Lever Magnetic Micro SwitchNegotiableMOQ: 50 Pieces
-
15A General Purpose Roller Lever Micro SwitchNegotiableMOQ: 50 Pieces
-
General Purpose Short Hinge Lever Basic SwitchNegotiableMOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
TMAZTZ
Model Number
TZ-1705
Max. Current
15A
Max. Voltage
AC250V
Operating Temperature
-25 °C to +80 °C
Protection Level
IP00
Specifications

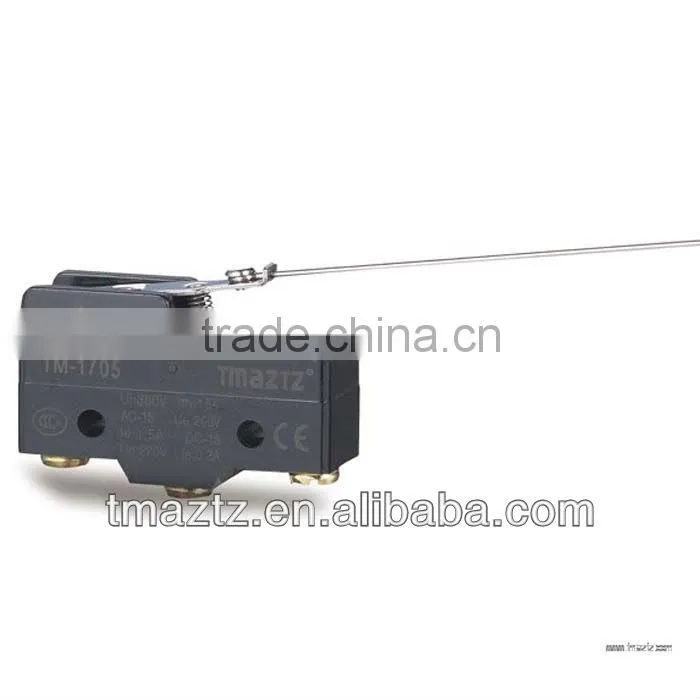

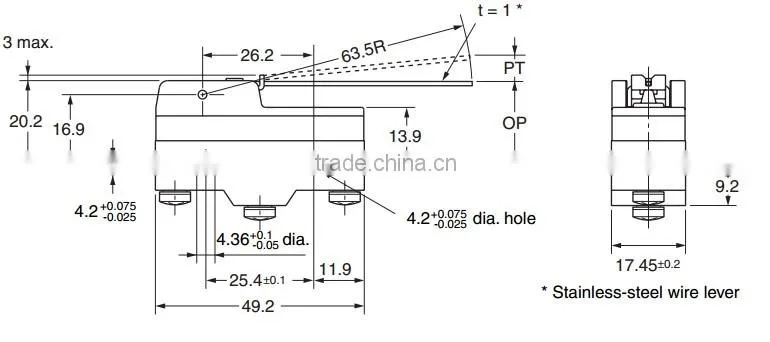

Stainless-steel wire lever molded terminal-type models incorporating safety terminal protective cover is available15A General purpose stainless steel Low-force Wire Hinge Lever micro switch
Part NO: TM-1705
Contact : 1NO+1NC
Tip material: Silver tip
Contact material: Brass
wire level material: Stainless steel
Ambient operating temperature: −25°C to 80°C (with no icing)
Ambient operating humidity: 35% to 85%RH
A large switching capacity of 15 A with high repeat accuracy.
