High Quality Creative 1-1/4" Imc Conduit Pipe
US$ 700 - 800
MOQ: 20 Tons
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
1.07, 2.11
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Modern Custom-made High Pressure Emt Galvanised Steel PipeUS$ 700 - 800MOQ: 20 Tons -
High Quality Promotional Round gi Steel TubeUS$ 600 - 700MOQ: 25 Tons
-
Updated Hotsell 29.54mm Emt Conduit PipeUS$ 700 - 800MOQ: 20 Tons
-
Innovative Promotional 2 Inch Galvanized Imc Conduit PipeUS$ 700 - 800MOQ: 20 Tons
-
Top Grade Promotional Hot Gig Emt Galvanised Steel PipeUS$ 700 - 800MOQ: 20 Tons
Thickness
1.07, 2.11
Section Shape
Round
Outer Diameter
0.5 - 4 inch
Place of Origin
Hebei, China
Secondary Or Not
Non-secondary
Application
Other, Pipe used for threading
Technique
Hot Rolled
Certification
UL
Surface Treatment
Galvanized
Special Pipe
EMT Pipe
Alloy Or Not
Non-alloy
Specifications
1-1/4" imc conduit pipeOD:1/2"-4"
WT:standurd or economy
PACKING:IN BUNDLES
High quality creative 1-1/4" imc conduit pipe
Details for 1-1/4" imc conduit pipe
(1)UL Approved
(2)UL797-2000
(3)Galvanized inside and outside
(4)High corrosion resistance
EMT electrical steel pipe
1) Standard: UL 797
2) Trade Size Designator: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2", 3", 4".
3) All sizes are furnished in the length of 10" or according to your requirement.
The EMT pipe is formed with advanced technology and equipment. It's excellent ductility
provides easy bending,cutting and joining.
Both inside and outside surface of the conduit is galvanized.So it features high corrosion resistance and is widely used under poor condition.
Specification for 1-1/4" imc conduit pipe
| Name | EMT pipe (ELECTRICAL METALLIC CONDUIT STEEL PIPE) |
| Standard | UL797 & ANSI C80.3, UL 797,BS 4568 ,BS EN39 ,BS 31 |
| Name | IMC (INTERMEDIATE METAL CONDUIT STEEL PIPE) |
| Standard | Standard: UL1242/ANSI C80.6. BS 4568 ,BS EN39 ,BS 31 Thread: NPT |
| Size | 1/2" to 4" |
| Length | 3050mm (10 feet)or according to customer's requirement |
| Usage | Through the electrical wires with the purpose of protection for the electrical raceway system |
| Surface finished | Hot dip galvanized(HDG) for class4 and pre-galvanized (PG) for classs3 |
| Material | Carbon steel coil |
| Package | The conduits coverd with plastics then tied with steel straps |
| Delivery time | 20 to 30 days after we receive your advance payment or copy of L/C |
| Payment Term | L/C at sight or T/T |
| Wall thickness | Standard or economy |
| Package | Small package, 5 to 20 PCS/bundle, tied with wire. Master package, 5 to 20 PCS/small bundle, tied with wires, then 10 small bundles/master, tied with steel straps.each bundle covered with woven bag. |
Dimension for 1-1/4" imc conduit pipe
| Nominal Dimension(mm) | Outside Diameter Inch(mm) | Wall Thickness Inch(mm) | Length | Estimated Weight | |||
| Inch | mm | Dimension | Tolerance | Dimension | Tolerance | (mm) | (Kg/m) |
| 1/2" | 16 | 0.706(17.93) | ±0.005(0.13) | 0.042(1.07) | 5%10% | 10(3.05) | 0.439 |
| 3/4" | 21 | 0.922(23.42) | 0.049(1.24) | 0.669 | |||
| 1 | 27 | 1.163(29.54) | 0.057(1.45) | 0.99 | |||
| 1-1-4" | 35 | 1.510(38.35) | 0.065(1.65) | 1.469 | |||
| 1-1-2" | 41 | 1.710(44.20) | 0.065(1.65) | 1.698 | |||
| 2 | 53 | 2.197(55.80) | 0.065(1.65) | 2.17 | |||
| 2-1-2" | 63 | 2.875(73.03) | ±0.010(0.25) | 0.072(1.83) | 3.177 | ||
| 3 | 78 | 3.500(88.90) | ±0.015(0.38) | 0.072(1.83) | 3.979 | ||
| 4 | 103 | 4.500(114.30) | ±0.020(0.50) | 0.083(2.11) | 5.75 |

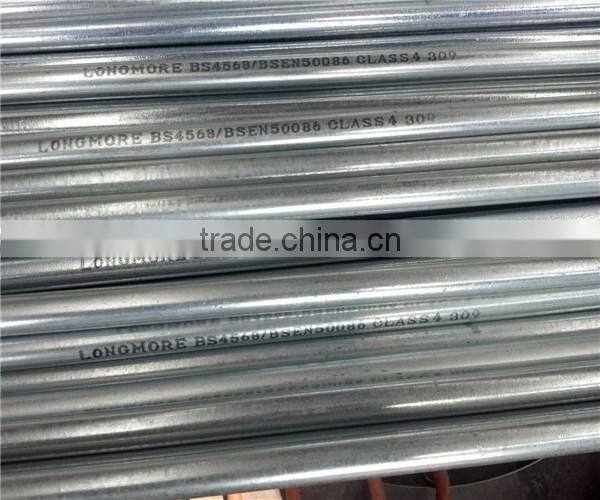

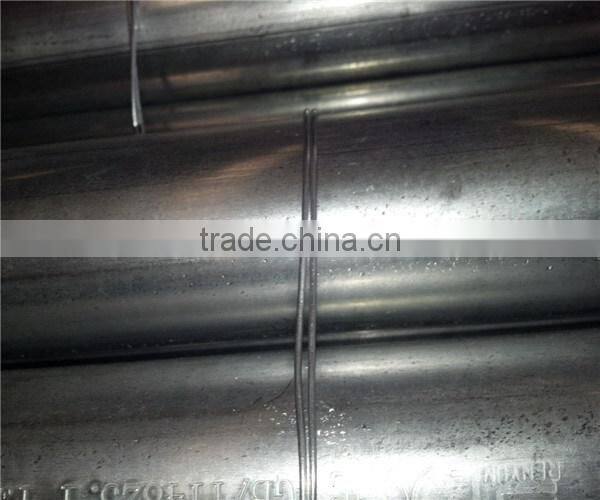

Picture for 1-1/4" imc conduit pipe
Workflow
Packaging&shipping for 1-1/4" imc conduit pipe
Customer visiting
Our team
1-1/4" imc conduit pipe
