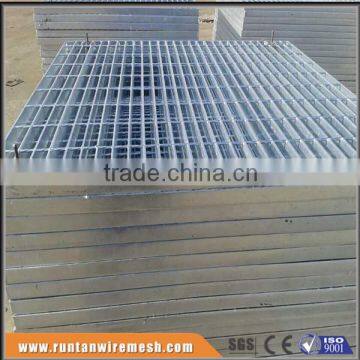

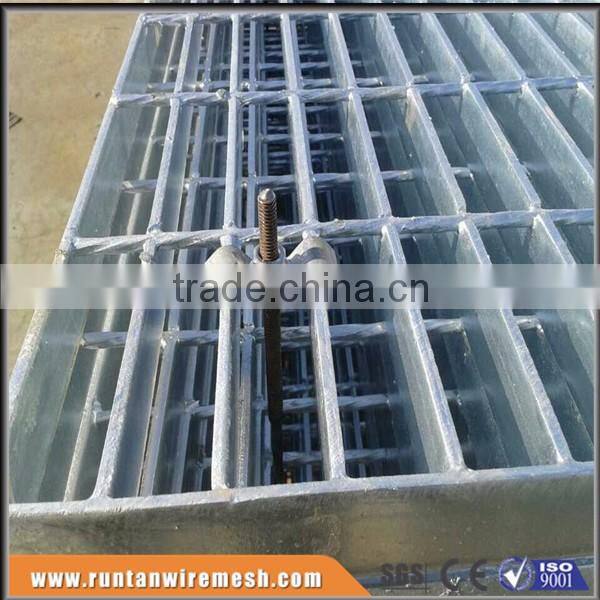

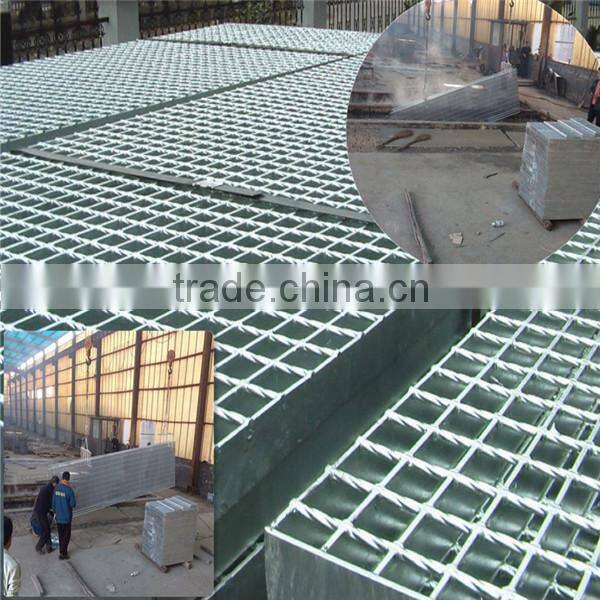

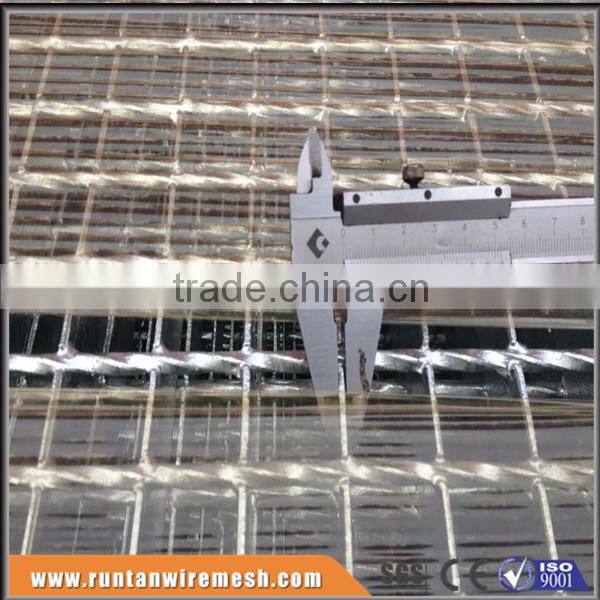

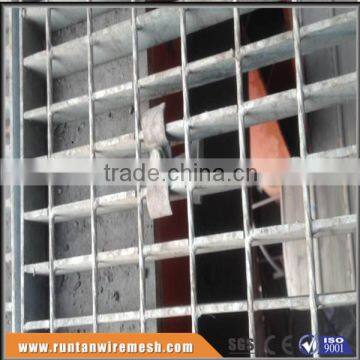

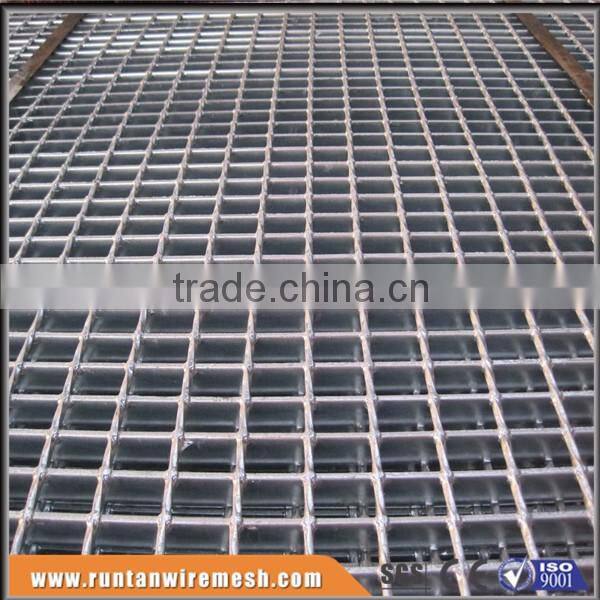

factory hot dipped galvanized catwalk flooring metal grate decking (Trade Assurance)factory hot dipped galvanized catwalk flooring metal grate decking (Trade Assurance)
The steel grating is also called floor grating, trench cover,drainage cover,trench drain,
walkway grating,platform grating,steel catwalk grating,stair tread,etc.
We have joined Canton Fair in 2010,2013 and 2014.
Steel grating is flat steel bar according to a certain distance and cross arranged and welded into the middle of a square lattice with an iron and steel products ,
steel grating generally use carbon steel production,appearance of hot dip
galvanized.
1. Galvanized Steel Grating:______________________________________
1.26 years exporting experience
2.OEM service.
3.Material:GB Q235B, ASTM A36
4.Surface:Hot dip galvanized
5.Standard:YB/T4001.1-2007.
6.Bearing bar pitch: 50mm, 100mm.
7.Cross bar pitch: 30mm, 40mm, 60mm.
2. Steel Grating type:__________________________________________________

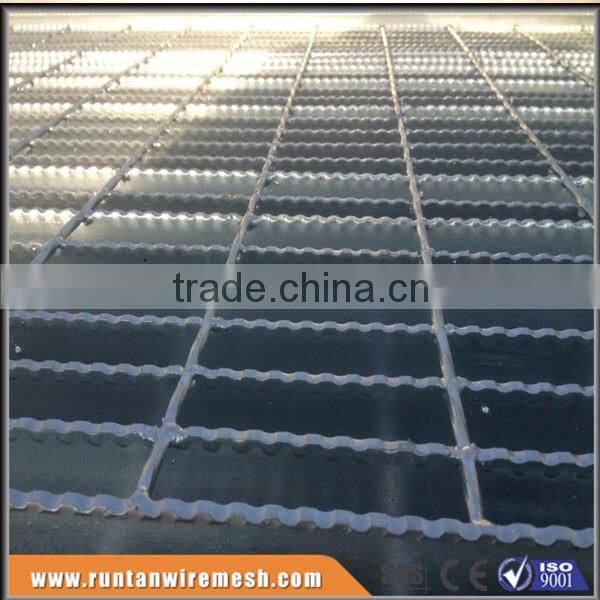

Press Locked Gratings, Heavy Duty Gratings, Press welded gratings, Steps, Sun shield gratings,
Full gratings, Shelf Gratings, Sawtooth Grating, Super Anti-skid protection and special forms.
3. Steel Grating Specifications:____________________________________
1) Standard grating:
a.Bearing bar pitch: 50mm, 100mm.
b.Cross bar pitch: 30mm, 40mm, 60mm.
2) Grating Surface:
Hot dip Galvanized, pickled, Electrochemically polished, Electrolyte oxidised, Power coated,
Chromated and Electrolytic galvanising.
4. Steel Grating Size:______________________________________
1) Specifications of W-19 Welded Steel Grating
| Item | Bar Size (D × W) | Bearing Bar Spacing | Cross Bar Spacing |
|---|---|---|---|
| RSGW19-01 | 3/4" × 1/8" | 1-3/16" | 4" |
| RSGW19-02 | 1" × 1/8" | 1-3/16" | 2"/ 4" |
| RSGW19-03 | 1-1/4" × 1/8" | 1-3/16" | 2"/ 4" |
| RSGW19-04 | 1-1/2" × 1/8" | 1-3/16" | 2"/ 4" |
| RSGW19-05 | 3/4" × 3/16" | 1-3/16" | 2"/ 4" |
| RSGW19-06 | 1" × 3/16" | 1-3/16" | 2"/ 4" |
| RSGW19-07 | 1-1/4" × 3/16" | 1-3/16" | 2"/ 4" |
| RSGW19-08 | 1-1/2" × 3/16" | 1-3/16" | 2"/ 4" |
| RSGW19-09 | 1-3/4" × 3/16" | 1-3/16" | 2"/ 4" |
| RSGW19-10 | 2" × 3/16" | 1-3/16" | 2"/ 4" |
| RSGW19-11 | 2-1/4" × 3/16" | 1-3/16" | 2"/ 4" |
| RSGW19-12 | 2-1/2" × 3/16" | 1-3/16" | 2"/ 4" |
2) Specifications of W-15 Welded Steel Grating
| Item | Bar Size (D × W) | Bearing Bar Spacing | Cross Bar Spacing |
|---|---|---|---|
| RSGW15-01 | 3/4" × 1/8" | 15/16" | 4" |
| RSGW15-02 | 1" × 1/8" | 15/16" | 2"/ 4" |
| RSGW15-03 | 1-1/4" × 1/8" | 15/16" | 2"/ 4" |
| RSGW15-04 | 1-1/2" × 1/8" | 15/16" | 2"/ 4" |
| RSGW15-05 | 3/4" × 3/16" | 15/16" | 4" |
| RSGW15-06 | 1" × 3/16" | 15/16" | 2"/ 4" |
| RSGW15-07 | 1-1/4" × 3/16" | 15/16" | 2"/ 4" |
| RSGW15-08 | 1-1/2" × 3/16" | 15/16" | 2"/ 4" |
| RSGW15-09 | 1-3/4" × 3/16" | 15/16" | 2"/ 4" |
| RSGW15-10 | 2" × 3/16" | 15/16" | 2"/ 4" |
| RSGW15-11 | 2-1/4" × 3/16" | 15/16" | 2"/ 4" |
| RSGW15-12 | 2-1/2" × 3/16" | 15/16" | 2"/ 4" |
5. Features
- Cost-efficient production.
- Easy to install.

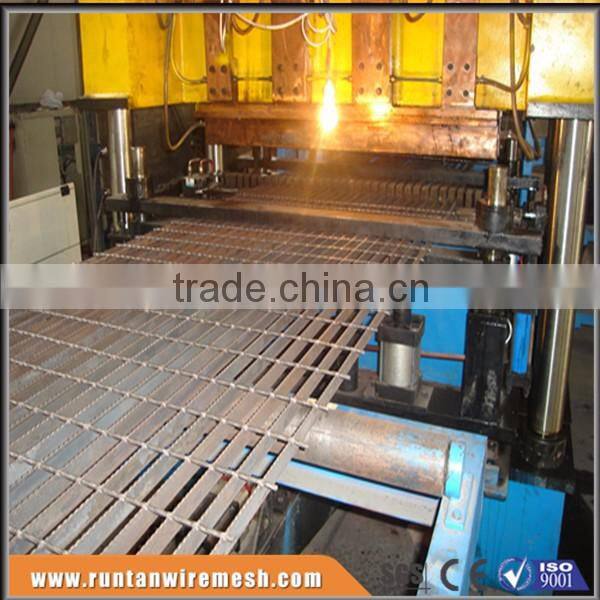

- Resistance welded production for rugged and one-piece constructed structure.
- Various application.
6. Applications
- The welded steel grating is widely used in most general industrial plants and commercial buildings.
- It can be used as walkways, stair treads and platforms in various places.
- Welded steel grating can be used as safety barriers in commercial buildings and other places which have safety requirements.
- Welded steel grating can be used as drainage trench grating in municipal engineering and daily usage.

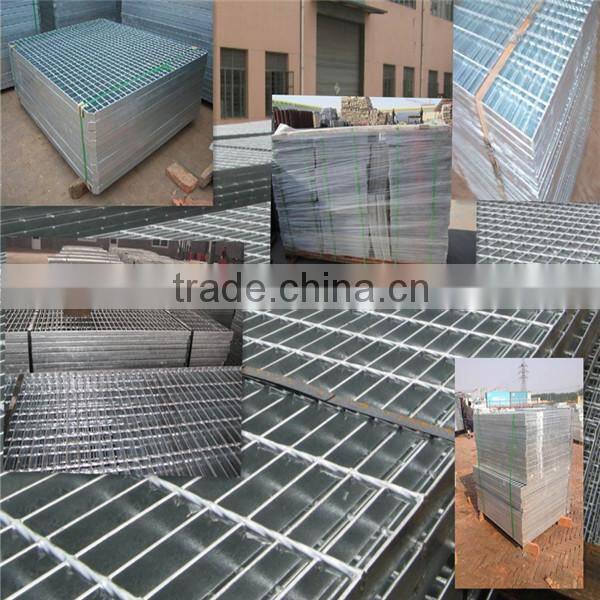

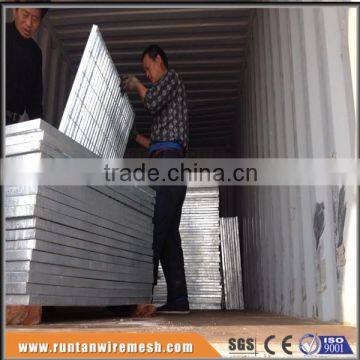

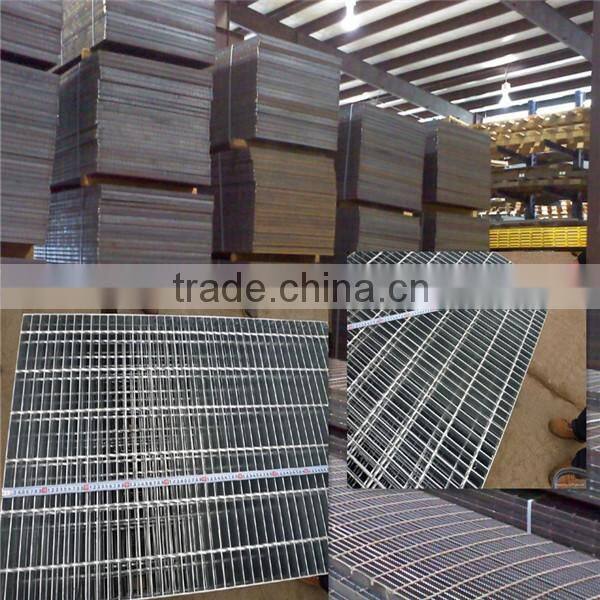

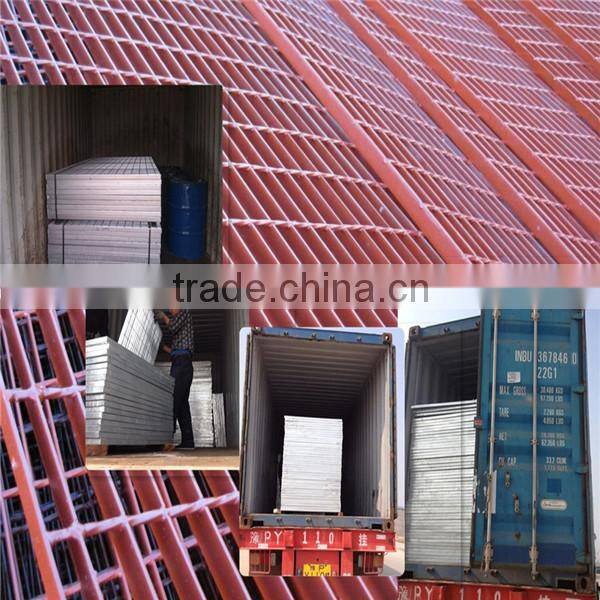

7. Packing and shipping:
Packing: With Steel Belt In high quality pallet or as your request;
Shipping: Within 15-20 days after receiving the deposit;
Payment: 30% deposit, and the balance paied by TT at sight of BL copy;
8. Steel Grating standards:
A) China: YB/T4001.1-2007
B) U.S.A.: ANSI/NAAMM (MBG531-88)
C) U.K.: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS
9. Company Introduction:_______________________________________________
Factory | Anping Runtan Metal Wire mesh products Factory |
Scale | 13340m2 |
Employees | 205 people |
Export Market | North America, Euro, Asia, Australia and Mid-East |
Main Products | Steel grates, wire mesh fence, chain link fence, Temporary Fence,etc |
Quality Control | ISO9001, BV,CE,SGS Testing |
8. ISO9001 and CE we passed:
(1) Free sample
(2) Factory directly sale
(3) It can customized according to the requirements or drawings
(4) 24 hours online
(5)With the fastest speed of delivery
(6)Long -life maintenance service for the product
Why You should Buy from Us:
· You get Top Quality Steel Grating
· You get Great Value Pricing
· Order securely Online or call our friendly & helpful staff
· Free delivery for orders over $500
· We specialise in steel grating
· Guaranteed delivery time firstly
· Directly Factory
