Product Features
·All buttons operation or touch screen control;high degree of automaticity;saves labor
·With wire break alarm, limit alarm and pressure alarm function;good safety and stability
·Automatic adjustment and synchronous tracking with the drawing machine.Machine auto stop
when length reaches to preset length
·Hydraulic pressure bobbin automatic locking structure;hydraulic pressure e-stop
Product Parameters
1. Technical specification

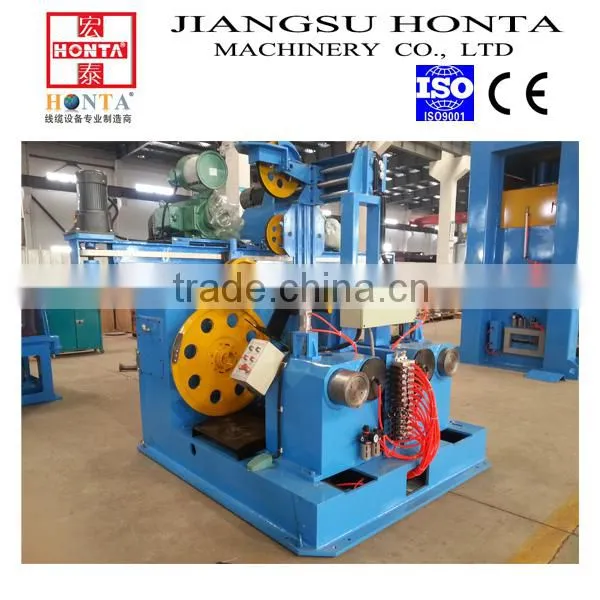

Double take-up (HT- 630SP)
Motor of double take-up : Z4-160-31, DC 30kw×2,1500r/min
Traverse motor : 1.1KW
Brake : air pressure to hydraulic pressure, disk type
Bobbin loading : button operation, shaftless,
bobbin cones clamping, safety pin protection
Dimension L×W×H : approx. 3320×3237×2570
Weight : abt. 4200 kgs
Compressed air:
Working pressure : 0.2~0.4 Mpa
Temperature : ≤30℃
Flow : 12-18m3/hr
Humidity : ≤ 2-3%
Bobbin loading and unloading, bobbin clamping, the safety pins are controlled in pneumatic way.
Traverse width, wire pitches are adjustable.
2. power supply:
3-phase voltage ~3×380VAC (±10%)
Single-phase voltage ~220VAC (±10%)
Frequency 50Hz (±2%)
Note: if the power supply is different from your system, pls. advice us.
3. Packing: packed on wooden pallets in container
Suitable for long distance ocean freight transportation and to change of climate, well protected
against moisture and shocks.
Company Profile
Brief Introduction
JIANGSU HONTA MACHINERY CO.,LTD. which is engaged in R&D and manufacture of wire drawing machines for non-ferrous metal in wire and cable industry, is a high and new technology enterprise.
The company’s registered capital is RMB11.8 million, covers an area of 30000 square meters.
The company has a strong machining power and the most professional design team.
HONTA constantly strives to supply wire process machineries of high efficiency,high precision,
and high quality to customers both at home and abroad. Meanwhile,our company has professional
technical team, which can offer professional technical guidance and complete plant equipment planning and so on for customers.
Certification
Product Range
• Copper rod breakdown machine with annealer
• Aluminium rod breakdown machine with annealer
• Wire electrolytic plating lines
• 16 wires multi wire drawing machine lines
• 8 wires multi wire drawing machine lines
• 4 wires multi wire drawing machine lines
• Medium wire drawing machine with annealer
• Fine wire drawing machine with annealer
• Fine wire drawing machine with automatic spoolers
• Aluminium wire drawing machine with automatic spoolers
• Fine wire drawing machine
• Double twist bunching machine
• Annealing & Tinning machine
• Down coilers
Factory Show
Customer Commissioning
Our Service
4. After-service:
·Free training / introduction of the operating and maintenance personnel
·one mechanical engineer and one electric engineer will go to customer's factory
for commissioning after customer finished installation of the machines;
5. Warranty: machines will be tested in our factory before shipment; 12 months
counted from the date of signing the Certificate of Acceptance.
FAQ
Q: What's the application of wire draw machine ?
A: It can be widely used to produce power cable, electrical equipment cable, communication cable,magnet wire, winding wire,bare wire and special cable etc.
Q: What's the characteristic of wire draw machine ?
A:
·Powered motor
·High speed
·Smart programmable control and operation
·High safety standard
·Efficient and cost-effective
Q: What' s the raw material can be draw ?
A:This wire drawing machine can draw copper, copper alloy, aluminum and aluminum
alloy, etc.
How to contact us?
With 8 years experience, we can provide professional solution for customers.
Send your inquiry details in the below, click "send" now!
