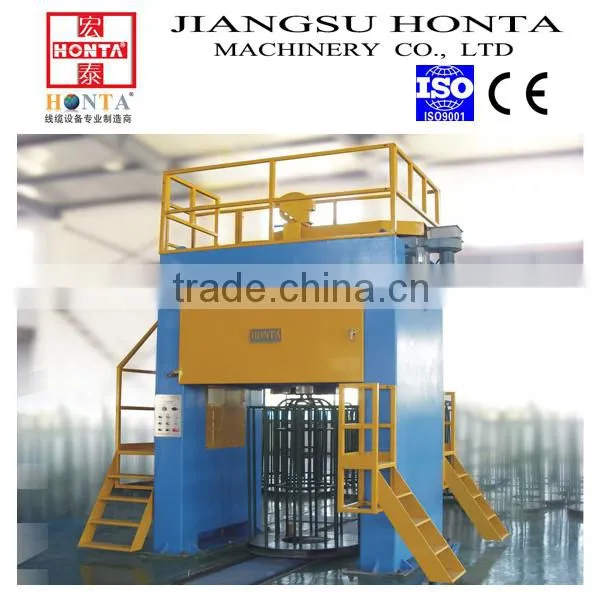

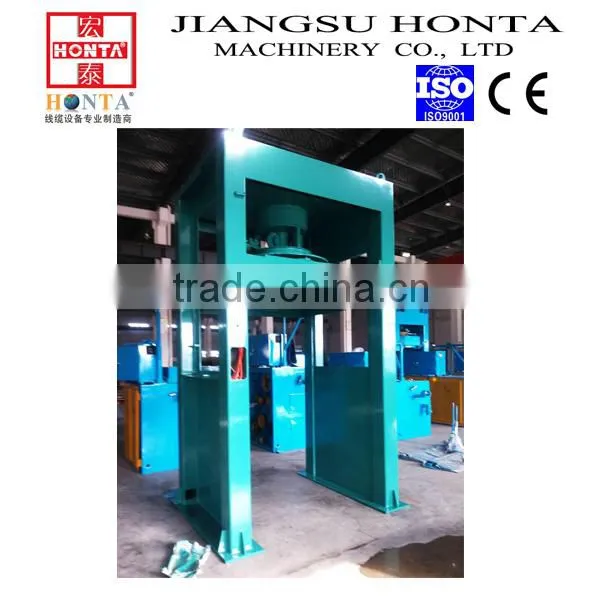

Help CenterAutomatic Wire & Cable Coiling Winding Machine
Related Products
-
Automatic Cable Coiling Winding Machine Wire Winding MachineUS$ 1.00 - 1.00MOQ: 1 Set -
Wooden Cable Spool for SaleUS$ 1.00 - 1.00MOQ: 1 Set
-
Plastic Cable BobbinUS$ 1.00 - 1.00MOQ: 1 Set
-
DIN630MM DIN800MM DIN1250MM Steel Wire BobbinUS$ 1.00 - 1.00MOQ: 1 Set
-
Wire Spool Winding MachineUS$ 1.00 - 1.00MOQ: 1 Set
You are here > Home > Automatic wire & cable coiling winding machine
Product Features

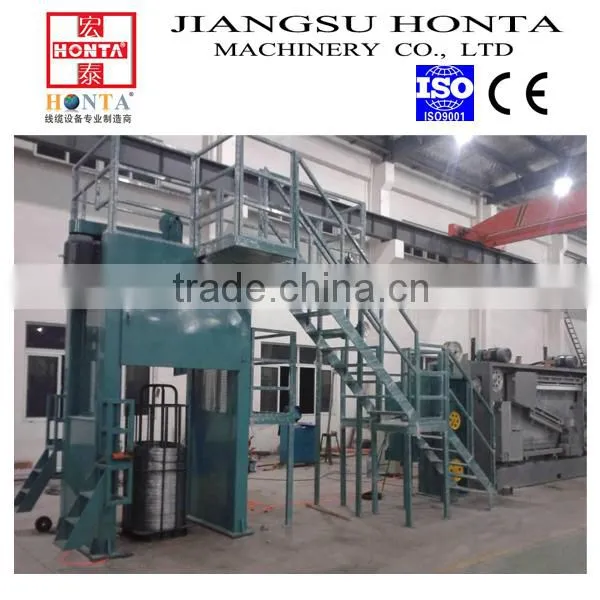

·Can be quipped with any kind of intermediate wire drawing machines or rod break down machines

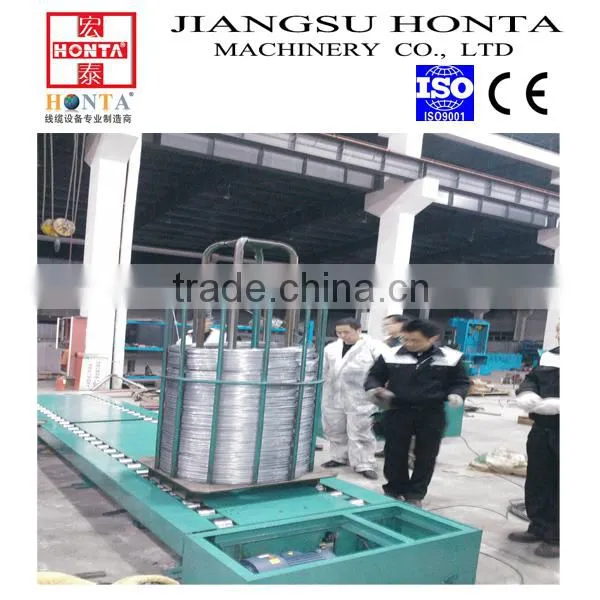

·Baskets auto change without stop to improve production efficiency
·Basket auto lifter is optional
·Planetary type coiler for option
·Suitable for coiling of copper and aluminum wires
Product Parameters
1. Technical specification
Machine Model |
HT-610C |
HT-650C |
HT-800C |
Material |
Cu,Al,soft wire,hard wire |
||
Wire dia. |
Cu 0.80-2.50mm (soft/hard) Al 1.60-3.50mm(soft) 1.20-3.50mm(hard) |
Cu 0.802.50mm (soft/hard) Al 2.00-3.50mm(soft) 1.60-3.50mm(hard) |
Cu1.20- 3.50mm (soft/hard) Al 2.00-3.50mm(hard) |
Coiling speed |
Max 1500m/min |
||
|
Coiling capstan diameter |
610 |
650 |
800 |
Motor power |
18.5KW AC |
18.5KW AC |
22KW AC |
Function |
Auto alarm when reach to set length,synchronous control with drawing machine |
||
Basket loading |
Manual lock or auto lock |
||
Basket moving |
Buttons manual operation to move basket conveyor forward or backward |
||
Basket dimension |
470x710x1600mm |
450x850x1600mm |
580x1050x1830mm |
2. power supply:
3-phase voltage ~3×380VAC (±10%)
Single-phase voltage ~220VAC (±10%)
Frequency 50Hz (±2%)
Note: if the power supply is different from your system, pls. advice us.
3. Packing: packed on wooden pallets in container
Suitable for long distance ocean freight transportation and to change of climate, well protected
against moisture and shocks.
Company Profile
Brief Introduction
JIANGSU HONTA MACHINERY CO.,LTD. which is engaged in R&D and manufacture of wire drawing machines for non-ferrous metal in wire and cable industry, is a high and new technology enterprise.
The company’s registered capital is RMB11.8 million, covers an area of 30000 square meters.
The company has a strong machining power and the most professional design team.
HONTA constantly strives to supply wire process machineries of high efficiency,high precision,
and high quality to customers both at home and abroad. Meanwhile,our company has professional
technical team, which can offer professional technical guidance and complete plant equipment planning and so on for customers.
Certification
Product Range
• Copper rod breakdown machine with annealer
• Aluminium rod breakdown machine with annealer
• Wire electrolytic plating lines
• 16 wires multi wire drawing machine lines
• 8 wires multi wire drawing machine lines
• 4 wires multi wire drawing machine lines
• Medium wire drawing machine with annealer
• Fine wire drawing machine with annealer
• Fine wire drawing machine with automatic spoolers
• Aluminium wire drawing machine with automatic spoolers
• Fine wire drawing machine
• Double twist bunching machine
• Annealing & Tinning machine
• Down coilers
Factory Show
Customer Commissioning
Our Service
4. After-service:
·Free training / introduction of the operating and maintenance personnel
·one mechanical engineer and one electric engineer will go to customer's factory
for commissioning after customer finished installation of the machines;
5. Warranty: machines will be tested in our factory before shipment; 12 months
counted from the date of signing the Certificate of Acceptance.
FAQ
Q: What's the application of wire draw machine ?
A: It can be widely used to produce power cable, electrical equipment cable, communication cable,magnet wire, winding wire,bare wire and special cable etc.
Q: What's the characteristic of wire draw machine ?
A:
·Powered motor
·High speed
·Smart programmable control and operation
·High safety standard
·Efficient and cost-effective
Q: What' s the raw material can be draw ?
A:This wire drawing machine can draw copper, copper alloy, aluminum and aluminum
alloy, etc.
How to contact us?
With 8 years experience, we can provide professional solution for customers.
Send your inquiry details in the below, click "send" now!
