Help CenterHot Sale Automatic Wire Spooler Tie Machine
Related Products
-
Copper Wire Coil Winding MachineUS$ 1.00 - 1.00MOQ: 1 Set -
Wire Coiling Winding Machine PriceUS$ 1.00 - 1.00MOQ: 1 Set
-
Copper Wire Coil Winding MachineUS$ 1.00 - 1.00MOQ: 1 Set
-
Copper Wire Spooling Winding MachineUS$ 1.00 - 1.00MOQ: 1 Set
-
Wire Bobbin Spooling Winding MachineUS$ 1.00 - 1.00MOQ: 1 Set

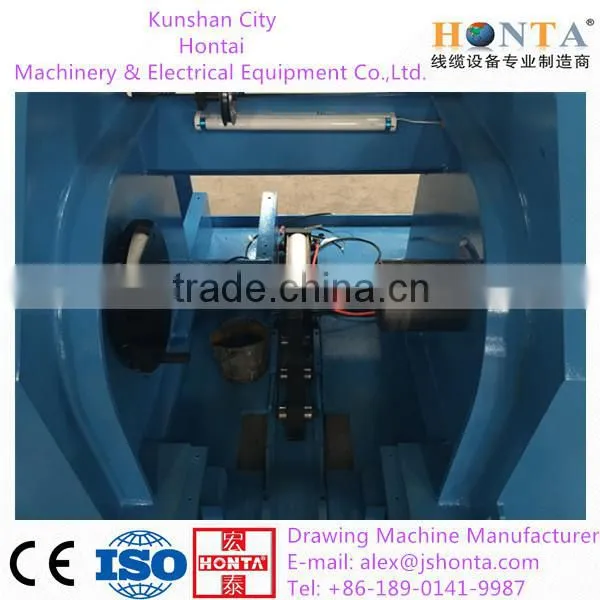

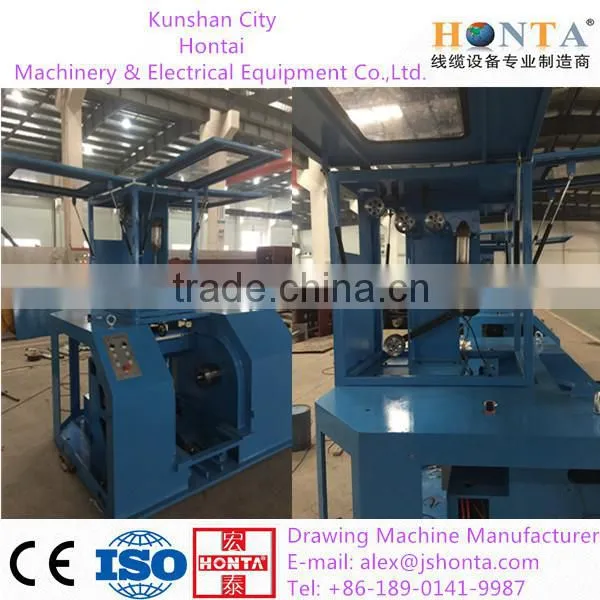

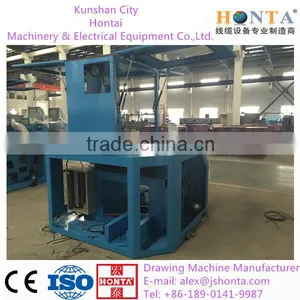

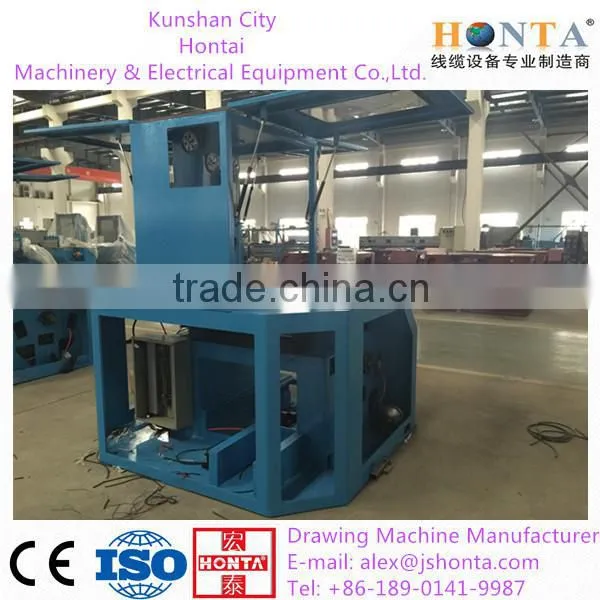

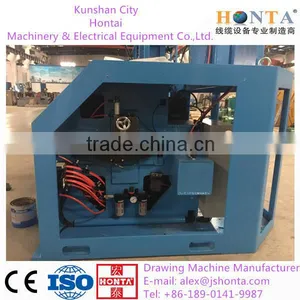

HT-630D SINGLE SPOOLER
Spool shaft rpm : N=3000 r/min
Spool dimensions : PND 630mm
Barrel diameter 355mm
Bore 127mm
Total length 475mm
Traverse width 400mm
Spool weight gross 600 kg Cu
Balancing quality Q16 according to VDI1940
Deviation of center bore to barrel max.0.3mm
Drive motor : DC 18.5kw
Drive : By motor, driving the spool shaft via flat belt.
Traverse drive : AC servomotor 1KW , 3000r/min
Spool take-up : bobbin holdby clamping cones, automatic spooling
In case of expanding arbour bore diameter min. 127mm
Tension control : Pneumaticlever type; with line speed detective buffer
pulley, winding speed auto adjusting.
Compressed air consumption : About 10 L/min
Brake : Disk brake with pneumatically actuated brake shoe,
serving only as quick brake
Braking time : Adjustable, max. 5 s in case of emergency-off
Spool loading and unloading : By means of spool carrier with hydraulic lifting table,
operated manually.
Speed control : By dancer, spooler follows synchronously the speed of
the drawing line and annealer
Control desk : Mounted at the side of the spooler

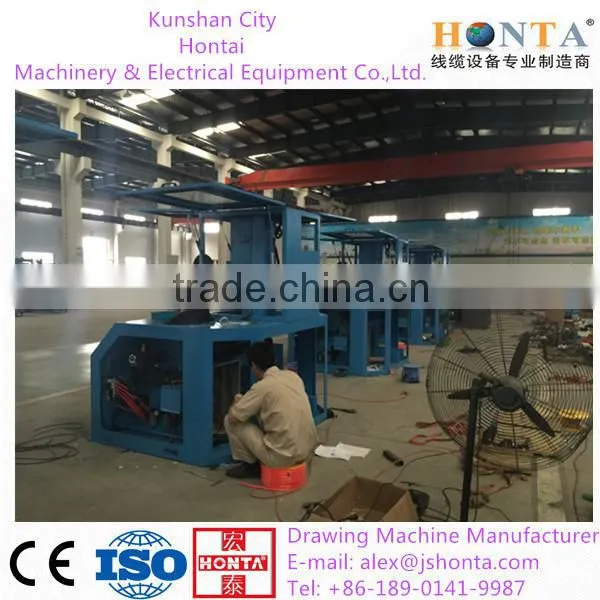

Assembly Workshop
Mechanical Strength
Certifications
Packing: well packed on steel pallets in 1x 40HC containers.
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
Terms of payment:
- 30% at contract, 65% before shipment, 5% after acceptance test at user site in 1 month by T/T.
- Payment by an irrevocable L/C is acceptable.
|
|
|
Copper Rod Breakdown Machine |
Aluminum Rod Breakdown Machine |
8-Multiwire Drawing Machine |
|
|
|
Copper/ Aluminum Intermediate/ Medium Wire Drawing Machine |
Fine Wire Drawing Machine |
16-Multiwire Drawing Machine |
1. Any inquire will be replied within 24 hours.
2 .Prodessional manufacture,welcome to visit our website
3. Any your idea on machine,we will help you to design and put it into production.
4. High quality,fashion designs,reasonable competitive price,fast lead time.
5. After-sale service.
a. All products will have been strictly quality checked in house before packing.
b.1 year warranty.
c. Engineers available to service machinery overseas
