Hot Dipped Galvanized Diamond Perforated Grip Strut Safety Grating (Trade Assurance)

Hot Dipped Galvanized Diamond Perforated Grip Strut Safety Grating (Trade Assurance) thumbnail-1
Hot Dipped Galvanized Diamond Perforated Grip Strut Safety Grating (Trade Assurance) thumbnail-2
Hot Dipped Galvanized Diamond Perforated Grip Strut Safety Grating (Trade Assurance) thumbnail-3
Hot Dipped Galvanized Diamond Perforated Grip Strut Safety Grating (Trade Assurance) thumbnail-4
Hot Dipped Galvanized Diamond Perforated Grip Strut Safety Grating (Trade Assurance) thumbnail-5
Hot Dipped Galvanized Diamond Perforated Grip Strut Safety Grating (Trade Assurance) photo-1
Hot Dipped Galvanized Diamond Perforated Grip Strut Safety Grating (Trade Assurance) photo-2
Hot Dipped Galvanized Diamond Perforated Grip Strut Safety Grating (Trade Assurance) photo-3
Hot Dipped Galvanized Diamond Perforated Grip Strut Safety Grating (Trade Assurance) photo-4
Hot Dipped Galvanized Diamond Perforated Grip Strut Safety Grating (Trade Assurance) photo-5
US$ 28.15 - 80.67 MOQ: 30 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
RT
Model Number:
RT1882
Contact Supplier Request Quote Chat Now
Anping Runtan Metal Wire Mesh Products Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xin'Gang port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name RT
Model Number RT1882
Material Other, Steel, galvanized steel, aluminum alloy and stainless steel

Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)



Product Description

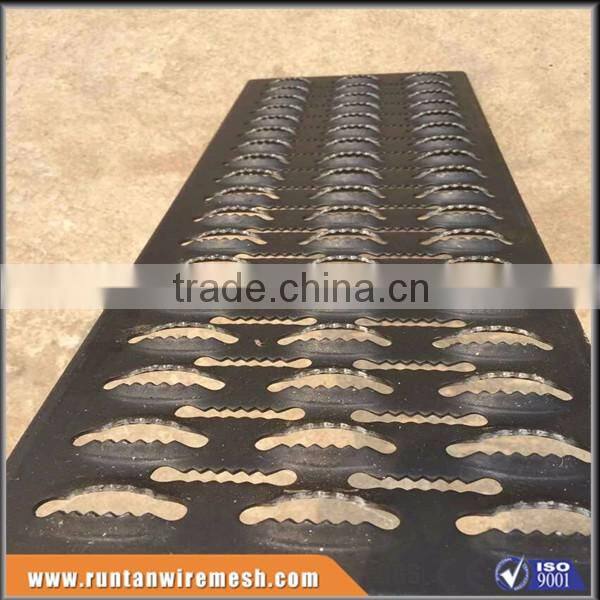

 Grip Strut safety grating grip strut offers excellent slip resistant performance in various applications. Plank grating is one of types. The material of diamond safety grating plank are commonly steels, aluminum alloy and stainless steel. The steel diamond grip strut safety grating plank commonly refers to the galvanized steel, which has zinc coating surface to resist rust and corrosion.Diamond safety grating plank has different diamond quantities to suit different applications. Commonly, it can be 2-diamond, 3-diamond, 4-diamond, 5-diamond,8-diamond and 10-diamond.

Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)

Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)

1. Specifications of grip strut safety grating

  • Material: galvanized steel, aluminum alloy and stainless steel.
  • Width: 4-3/4”, 7”, 9-1/2”, 11-3/4”, 18-3/4” and 24”.
  • Channel height: 1-1/2”, 2”, 2-1/2” and 3”.
  • Plank thickness: 14G, 12G and 10G. Other thickness can be customized.
  • Clear span: 2’, 2’6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”, 6’, 6’6”, and 7’.

Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)



2. Data sheet of grip strut safety grating
The detailed specifications are as follows, you can refer to them and choose the perfect one you want.


1) 4-diamond safety grating grip strut (9-1/2” width)

Item Material Plank thickness Channel height Clear span
GSPG4-01 Steel 14G 1-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”
GSPG4-02 Steel 14G 2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’
GSPG4-03 Steel 14G 2-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”, 6’
GSPG4-04 Steel 12G 1-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”
GSPG4-05 Steel 12G 2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”
GSPG4-06 Steel 12G 2-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”, 6’, 6’6”
GSPG4-07 Steel 12G 3” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”, 6’, 6’6”, 7’
GSPG4-08 Aluminum alloy 12G 1-1/2” 2’, 2’-6”, 3’, 3’6”
GSPG4-09 Aluminum alloy 12G 2” 2’, 2’-6”, 3’, 3’6”, 4’
GSPG4-10 Aluminum alloy 12G 2-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’
GSPG4-11 Aluminum alloy 12G 3” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’
GSPG4-12 Aluminum alloy 10G 1-1/2” 2’, 2’-6”, 3’, 3’6”
GSPG4-13 Aluminum alloy 10G 2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”
GSPG4-14 Aluminum alloy 10G 2-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’
GSPG4-15 Aluminum alloy 12G 3” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”, 6’
GSPG4-16 Stainless steel 16G 2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”



2) 5-diamond grip strut safety grating (11-3/4” width)

Item Material Plank thickness Channel height Clear span
GSPG5-01 Steel 14G 1-1/2” 2’, 2’-6”, 3’, 3’6”, 4’
GSPG5-02 Steel 14G 2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’
GSPG5-03 Steel 14G 2-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”
GSPG5-04 Steel 12G 1-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”
GSPG5-05 Steel 12G 2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’
GSPG5-06 Steel 12G 2-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”
GSPG5-07 Steel 12G 3” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”, 6’, 6’6”, 7’
GSPG5-08 Aluminum alloy 12G 1-1/2” 2’, 2’-6”, 3’, 3’6”
GSPG5-09 Aluminum alloy 12G 2” 2’, 2’-6”, 3’, 3’6”, 4’
GSPG5-10 Aluminum alloy 12G 2-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”
GSPG5-11 Aluminum alloy 12G 3” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’
GSPG5-12 Aluminum alloy 10G 1-1/2” 2’, 2’-6”, 3’, 3’6”
GSPG5-13 Aluminum alloy 10G 2” 2’, 2’-6”, 3’, 3’6”, 4’
GSPG5-14 Aluminum alloy 10G 2-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’
GSPG5-15 Aluminum alloy 12G 3” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”
GSPG5-16 Stainless steel 16G 2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”



3) 8-diamond grip strut safety grating(18-3/4” width)

Item Material Plank thickness Channel height Clear span
GSPG8-01 Steel 14G 1-1/2” 2’, 2’-6”, 3’
GSPG8-02 Steel 14G 2” 2’, 2’-6”, 3’, 3’6”, 4’
GSPG8-03 Steel 14G 2-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”
GSPG8-04 Steel 12G 1-1/2” 2’, 2’-6”, 3’, 3’6”
GSPG8-05 Steel 12G 2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”
GSPG8-06 Steel 12G 2-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’
GSPG8-07 Steel 12G 3” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”
GSPG8-08 Aluminum alloy 12G 1-1/2” 2’, 2’-6”
GSPG8-09 Aluminum alloy 12G 2” 2’, 2’-6”
GSPG8-10 Aluminum alloy 12G 2-1/2” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”
GSPG8-11 Aluminum alloy 12G 3” 2’, 2’-6”, 3’
GSPG8-12 Aluminum alloy 10G 1-1/2” 2’, 2’-6”
GSPG8-13 Aluminum alloy 10G 2” 2’, 2’-6”, 3’
GSPG8-14 Aluminum alloy 10G 2-1/2” 2’, 2’-6”, 3’, 3’6”
GSPG8-15 Aluminum alloy 12G 3” 2’, 2’-6”, 3’, 3’6”, 4’



4) 10-diamond grip strut safety grating (24” width)

Item Material Plank thickness Channel height Clear span
GSPG10-01 Steel 14G 2” 2’, 2’-6”, 3’, 3’6”
GSPG10-02 Steel 12G 3” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”
GSPG10-03 Steel 12G 2” 2’, 2’-6”, 3’, 3’6”, 4’
GSPG10-04 Steel 12G 3” 2’, 2’-6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”



 2. Features of diamond safety grating grip strut

  • Corrosion resistance, Rust resistance.
  • Anti-slip resistance, Good air circulation.
  • Good drainage performance, Easy to install and uninstall.
  • High strength-to-weight performance,Durable and long lifespan.

Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)



Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)



3. Applications of diamond  grip strut safety grating
Diamond safety grating plank is widely used for work platforms. Catwalks, transportation

servicing areas and vehicle steps.

Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)

Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)

Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)

Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)

Packaging & Shipping

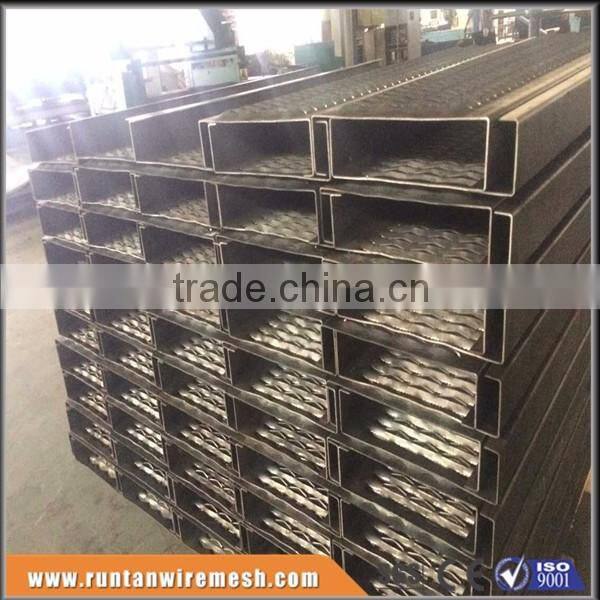

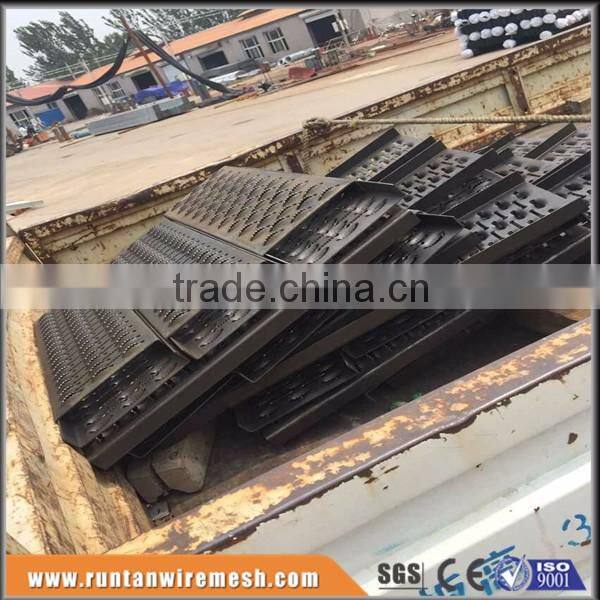

4. Packing Of Diamond Grip Strut Safety Grating

In High quality steel pallet with strong steel belt ;



Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)



Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)



5. Shipping

15-20 days for 1x40'HC after receiving the deposit ;



Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)



6. Certificate: ISO9001,CE,SGS

Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)

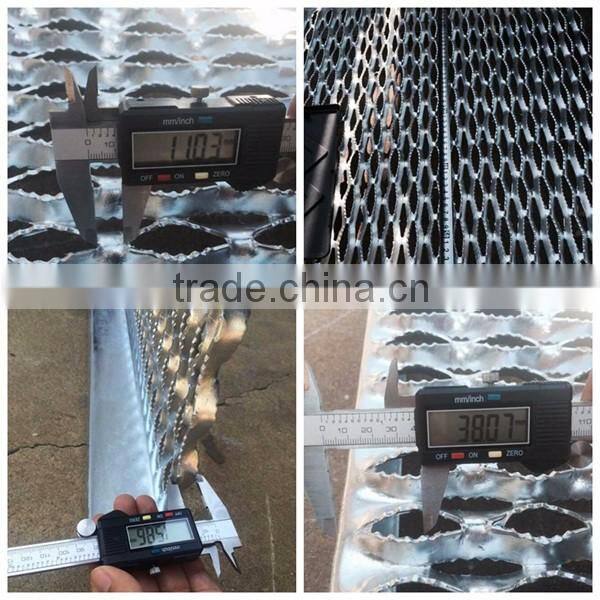

7. Testing of Diamond Grip Strut Safety Grating

Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)

Company Information

8. Company Info



1)  Factory:  Anping Runtan Metal Wire mesh products Factory

2)  Scale: 13340m2 with 4 wire mesh fence production line and 3 grating production line

3)  Employees:  205 people
4)  Export Market: Australia, New Zealand, North America, Mid-East and Euro
5) Main Products:Wire Mesh Fence,Chian Link Fence,Steel Grates, welded Wire

Mesh,Perforated Mesh,

6) Quality Control: ISO9001, BV,CE,SGS Testing

7) International Exhibition: Canton Fair in 2010,2012,2014 three times;



Hot dipped galvanized Diamond perforated grip strut safety grating (Trade Assurance)
