ASTM E-84 test passed Chemical Plant Molded Corrosion resistant and fire resistant fiberglass grid (ISO9001)
- 6000 Square Meter / Square Meters per Month
- Xin'Gang Port China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | RT | Model Number: | RT2009 |
Application: | Construction | Surface Treatment: | Smooth | Technique: | Molded |
Dimensions: | 1220 x 3660mm,1009 x 3007mm |
Product Description
ASTM E-84 test passed Chemical Plant Molded Corrosion resistant and fire resistant fiberglass grid (ISO9001)
1. Material: Resin and Fiberglass
Fiberglass:
Fiberglass component | Specs | Feature | Applications |
non-alkali thick yard | 2400 TEX or 4800TEX | Excellent penetration performance with resin matrix solid combination, can make the products with excellent mechanical properties and corrosion resistance | Applied to require high strength and corrosion resistance |
medium-alkali thick yard | 2400TEX | With excellent penetration, can combine with resin matrix solid, good resistance to acid | Applied to the alkali corrosion environment |
2. Feature of Fiberglass Grating
1) Small Density : 1/4 of steel,also 2/3 of Aluminum;
2) Strength: 10 times of rigid polyvinyl chloride (PVC),absolute strength more
than aluminum, almost the same as the level of the steel;
3) Light Weight: greatly reduce the foundation support,reduce the material cost of the project,
Its cutting easy installation,only a small amount of manual and electric tools;
4) Fire Retardant: All Standard Resin Systems noted above are fire retardant to a Class I flame spread
of 25 or less based on ASTM E-84 Testing.
5) USDA Certificated: The General Purpose and ISO resin systems can be formulated
in such fashion to be certified under USDA requirements. Certification by an independent
laboratory is available if required.
6) UV Resistance: All of our grating has a UV additive to limit degradation from outside exposure.
3. Fiberglass Grating Specifications:
Item | Depth (mm) | Mesh Size(mm) | Size | Open Area | Weight( kg/m 2 ) |
1 | 15 | 38 × 38 | 1220 × 3660 | 72% | 6.00 |
2 | 15 | 20 × 20(up) | 1247×4047,1007×4047 | 42% | 9.00 |
3 | 25 | 38 ×38 | 997 × 3050 , 1220 × 3660 | 69% | 12.50 |
4 | 25 | 40 × 40 | 1007 × 3007 ,1007 × 4007 | 67% | 12.50 |
5 | 25 | 25 × 100 | 1009 × 3007 ,1209 ×3657 | 67% | 14.00 |
6 | 30 | 38 × 38 | 1220 × 3660 ,997 × 3050 | 69% | 15.00 |
7 | 30 | 40 × 40 | 1007 × 3007 , 1007 × 4007 | 67% | 15.00 |
8 | 30 | 25 × 25(up) | 1220 × 3660 | 49% | 22.00 |
9 | 30 | 20 × 20(up) | 1000 × 4000,1247×4047 | 42% | 18.50 |
10 | 30 | 8 × 8(up) | 1007 × 4047 | 26% | 24.50 |
11 | 38 | 38 × 38 | 997 × 3050 , 1220 × 3660 | 68% | 19.70 |
12 | 38 | 38× 152 | 1225×3665 | 70% | 17.50 |
13 | 38 | 20 × 20(up) | 1007 × 4007,1247×4047 | 42% | 22.50 |
14 | 40 | 40 × 40 | 1007 × 3007 , 1007 × 4007 | 67% | 20.00 |
15 | 40 | 20 × 20(up) | 1247 × 4047 | 42% | 23.70 |
16 | 50 | 50.7 × 50.7 | 1225× 3660 | 69% | 22.00 |
17 | 60 | 38 × 38 | 1220 × 3660 | 47% | 51.00 |
18 | P38 | 38 × 38 | 1230 × 3670 | 68% | 17.50 |
19 | P30 | 38 × 38 | 1220 × 3660 | 69% | 14.00 |
1) 25 mm thick: suitable for general drains, groove width diameter does not exceed 30 cm,
bearing about 3 ton car.
2) 30 mm thick: suitable for drainage and car wash station, the following support is better no
more than 40 cm, the distance between bearing about 3.5 tons of car.
3) 38 mm thick: for drainage and car wash station, the following support spacing (horizontal and
vertical), it is better to not more than 50 cm carry 4 tons of car.
4) 50 mm thick: suitable for sewage treatment plant, and can meet any construction drawings
design requirements.
4. Process: Modeling------Paste and curing------Stripping and repair
5. Packing Of Fiberglass Grating
wooden pallet or iron pallet,and protected with polybag,cardboard and packing belt ;
6. Shipping :
15-20 days for 1x40'HC after receiving the deposit ;
7. Application:
The chemical industry, paper industry, power plants, sewage treatment plant, food processing plants, smelters, storage battery factory, mine, saltworks, nuclear power plants, and so on.Can be used as: the pedestrian walkway, bridge plate, industrial floor, operating platform, trench cover plate, tray, guardrail, fence, shelves, isolation belt, green corridors, floor step and so on.
8. Certificate: ISO9001,CE,SGS
9. Testing of Fiberglass Grating

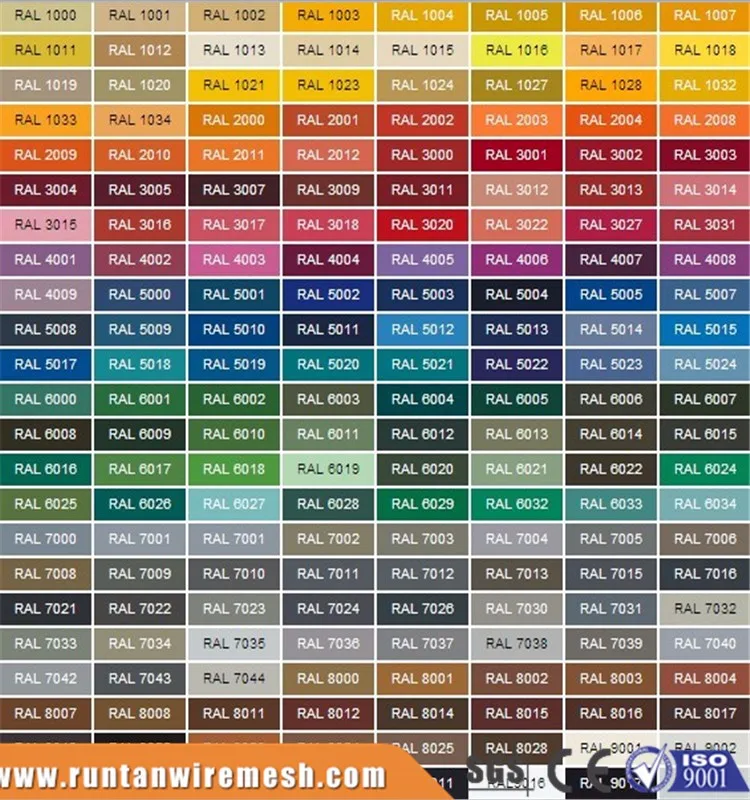

10. RAL Colors
11. Company Info:
