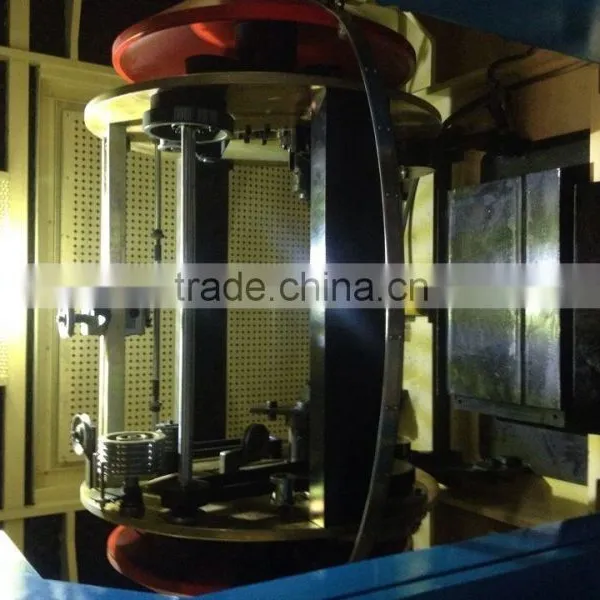

Help CenterCopper Wire Machinery, Automatic Double Twist Bunching Machine
Related Products
-
Copper Wire Machinery, HT-650P Automatic Double Twist Bunching MachineNegotiableMOQ: 1 Set -
Copper Wire Machinery, HT-800P Automatic Double Twist Bunching MachineNegotiableMOQ: 1 Set
-
Copper Wire Machinery, HT-1000P Automatic Double Twist Bunching MachineNegotiableMOQ: 1 Set
-
Cable Manufacturing Equipment Copper Bunching Machine, High Speed SpoolerNegotiableMOQ: 1 Set
-
Dynamic Spoolers for Wire PackagesNegotiableMOQ: 1 Set
Technical data
Type of line: HT– 650P
Applicable : for bunching bare copper wires
Wire diameter range : φ 0.08-φ0.45mm
Stranding basal area : 0.50-2.5mmsq
Take up bobbin : Max. DIN630 (Φ127XΦ630 XΦ355)
rotational speed : 3000rpm/4000TPM;
drive motor : 7.5KWAC
Stranding pitches : 4.22-39.64mm
Pitch change : by changing pulling capstans manually
Bobbins loading and unloading : by hydraulic with motor
Traverse method : by polish rod, width and lay are adjustable.
Take-up tension control : magnetic particle clutch (new) 256 level auto
control to ensure the stable tension from empty to full bobbin
Noise level : ≤ 85dB(A)
Center height : 750mm
Stranding direction : leftward or rightward (S or Z)
Outside measurement (main machine) : 2770X1480X1540
Weight : about 3500KGS
Color : Machine color RAL 6018 Yellow Green
Rotate portion and safety fence RAL 1018 Zinc Yellow
Or painted as per customer’s request.
Packing: packed on wooden pallets in 1 x 20′container
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
Terms of payment:
1. 40% at contract, 55% before shipment, 5% after acceptance test at user site in 1 month by T/T.
2. Payment by L/C is acceptable.
Warranty: 12 months counted from the date of signing the Certificate of Acceptance. But if due to the Buyer's reason, the commissioning and acceptance of the line is delayed, the guarantee period of quality shall be no more than 18 months from the arrival date of equipment at the destination port.
